Chapter 7 Fabric Manager Web Client
S e n d d o c u m e n t a t i o n c o m m e n t s t o m d s f e e d b a c k - d o c @ c i s c o . c o m

Configuring Collection Thresholds

To configure collection thresholds using Fabric Manager Web Client, follow these steps:
Click the Admin tab, and then click Configure.
Step 1
Click Thresholds in the left navigation pane.
Step 2

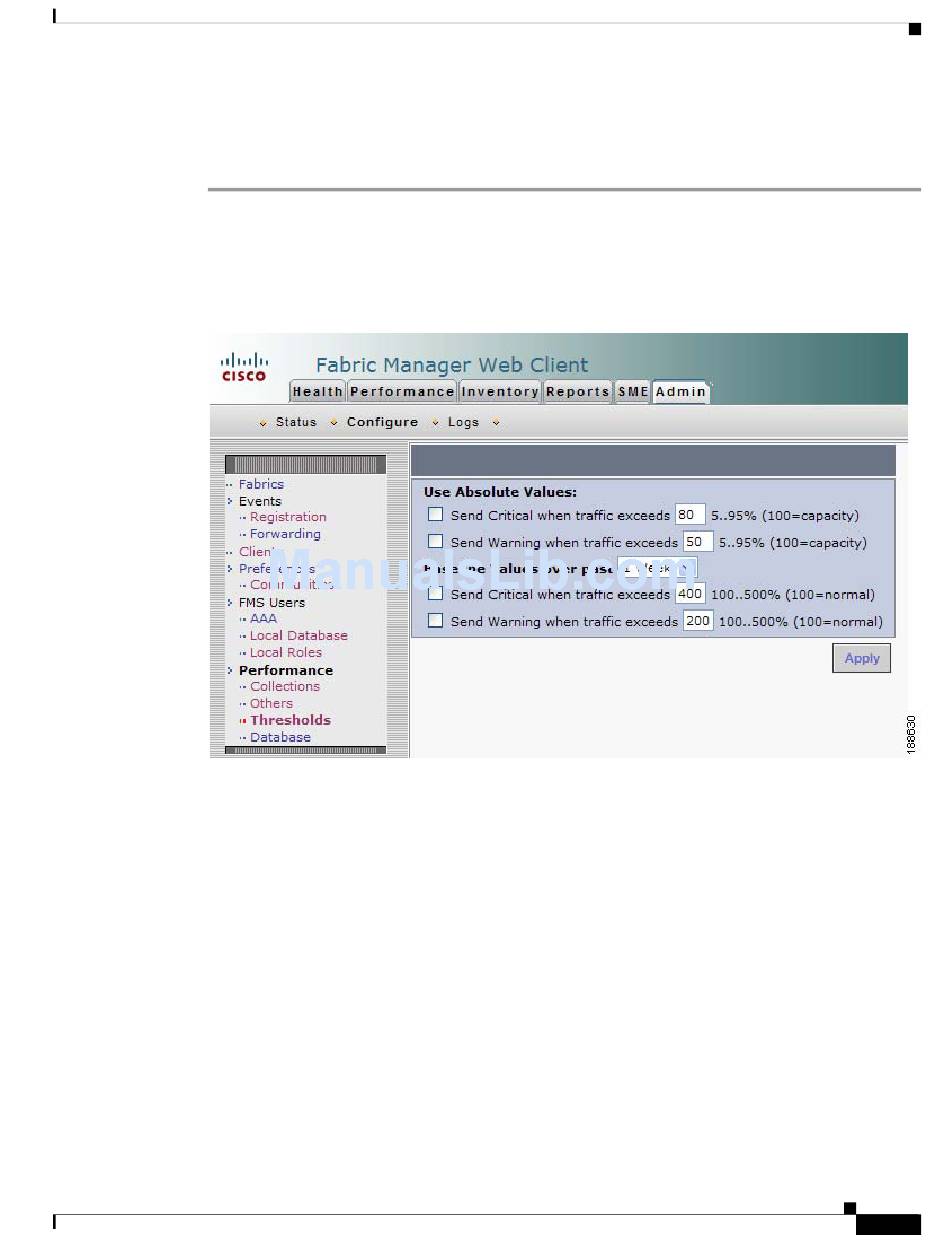

You see the Thresholds page shown in
Figure 7-55
Step 3 If you are using absolute values, follow these steps, otherwise skip to Step 3.
a.
b.
Step 4 Select the time period for the collection (1 Week, 1 Month, or 1 Year) from the Baseline Values over past
drop-down list. The baseline value represents the sum of the absolute values.
a.
OL-17256-03, Cisco MDS NX-OS Release 4.x
Thresholds Page
To configure conditions for sending Critical notifications, check the Send Critical check box. In the
"...when traffic exceeds" field, enter a number (from 5 to 95) to indicate the percentage at which the
Critical notification is sent. For example, entering 10 causes a notification to be sent when traffic at
any given time exceeds 10% of capacity.
To configure conditions for sending Warning notifications, check the Send Warning check box. In
the "...when traffic exceeds" field, enter a number (from 5 to 95) to indicate the percentage at which
the Warning notification is sent. For example, entering 9 causes a notification to be sent when traffic
at any given time exceeds 9% of capacity.
To configure conditions for sending Critical notifications, check the Send Critical check box. In the
"...when traffic exceeds" field, enter a number to indicate the percentage at which the Critical
notification is sent. For example, entering 300 causes a notification to be sent when traffic for the
selected period exceeds 300% of capacity.
Figure 7-55.
Cisco MDS 9000 Family Fabric Manager Configuration Guide
Admin
7-59
