Configuring RADIUS Server Monitoring Parameters
S e n d d o c u m e n t a t i o n c o m m e n t s t o m d s f e e d b a c k - d o c @ c i s c o . c o m

Configuring a RADIUS Server

To configure a RADIUS server and all its options using Fabric Manager, follow these steps:
Expand Switches > Security > AAA, and then select RADIUS.
Step 1
You see the RADIUS configuration in the Information pane.
Click the Servers tab.
Step 2
You see any existing RADIUS servers.
Step 3 Click Create Row to add a new RADIUS server.

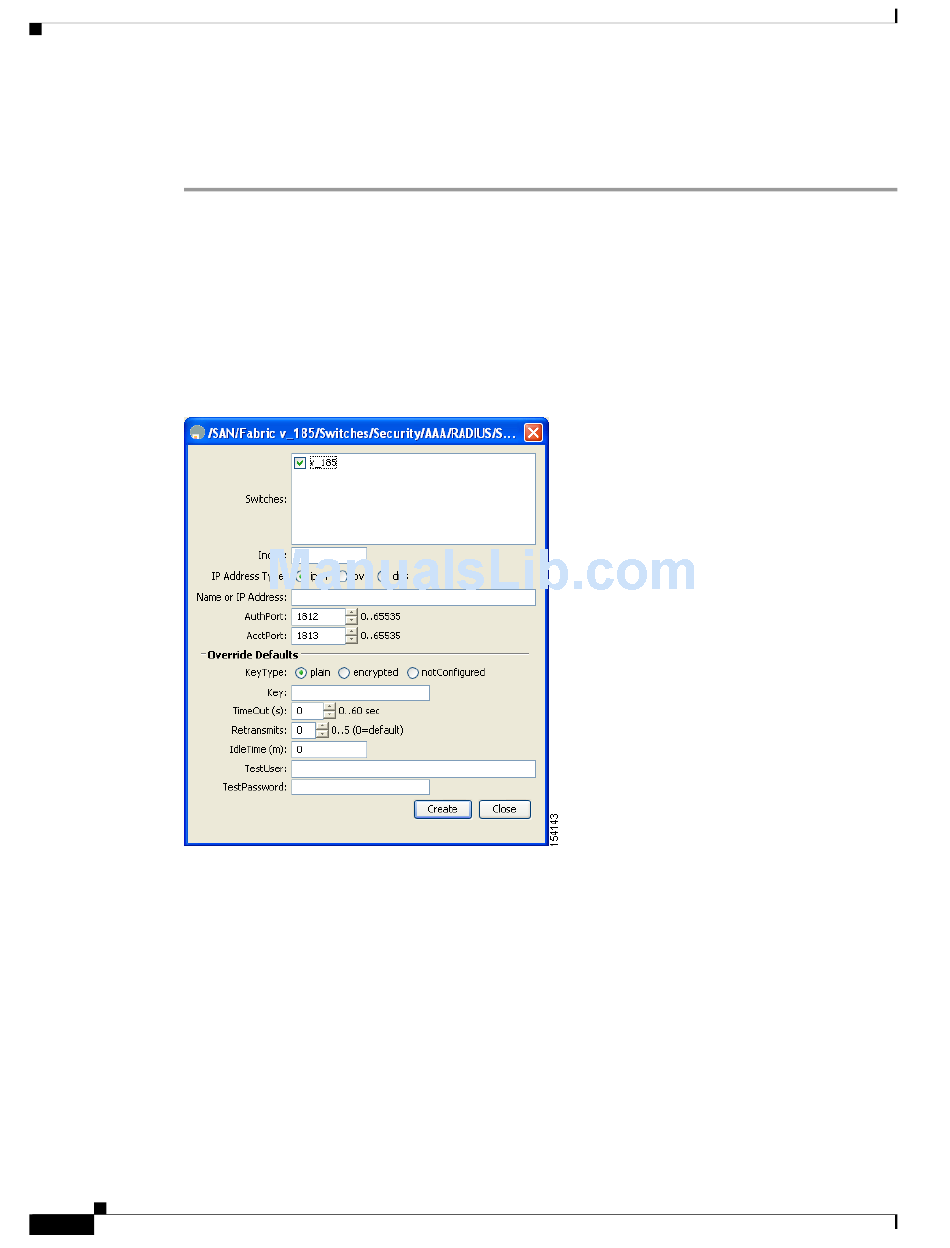

You see the Create RADIUS Server dialog box shown in
Figure 41-4
Step 4 Select the switches that you want to assign as RADIUS servers.
Assign an index number to identify the RADIUS server.
Step 5
Select the IP address type for the RADIUS server.
Step 6
Fill in the IP address or name for the RADIUS server.
Step 7
(Optional) Modify the authentication and accounting ports used by this RADIUS server.
Step 8
Select the appropriate key type for the RADIUS server.
Step 9
Select the TimeOut value in seconds. The valid range is 0 to 60 seconds.
Step 10
Select the number of times the switch tries to connect to a RADIUS server(s) before reverting to local
Step 11
authentication.
Enter the test idle time interval value in minutes. The valid range is 1 to 1440 minutes.
Step 12
Cisco MDS 9000 Family Fabric Manager Configuration Guide
41-10
Create RADIUS Server
Chapter 41 Configuring RADIUS and TACACS+
Figure 41-4.
OL-17256-03, Cisco MDS NX-OS Release 4.x
