2 Installation and Commissioning, IRC5
2.5.3. Connecting a PC to the service port
Continued

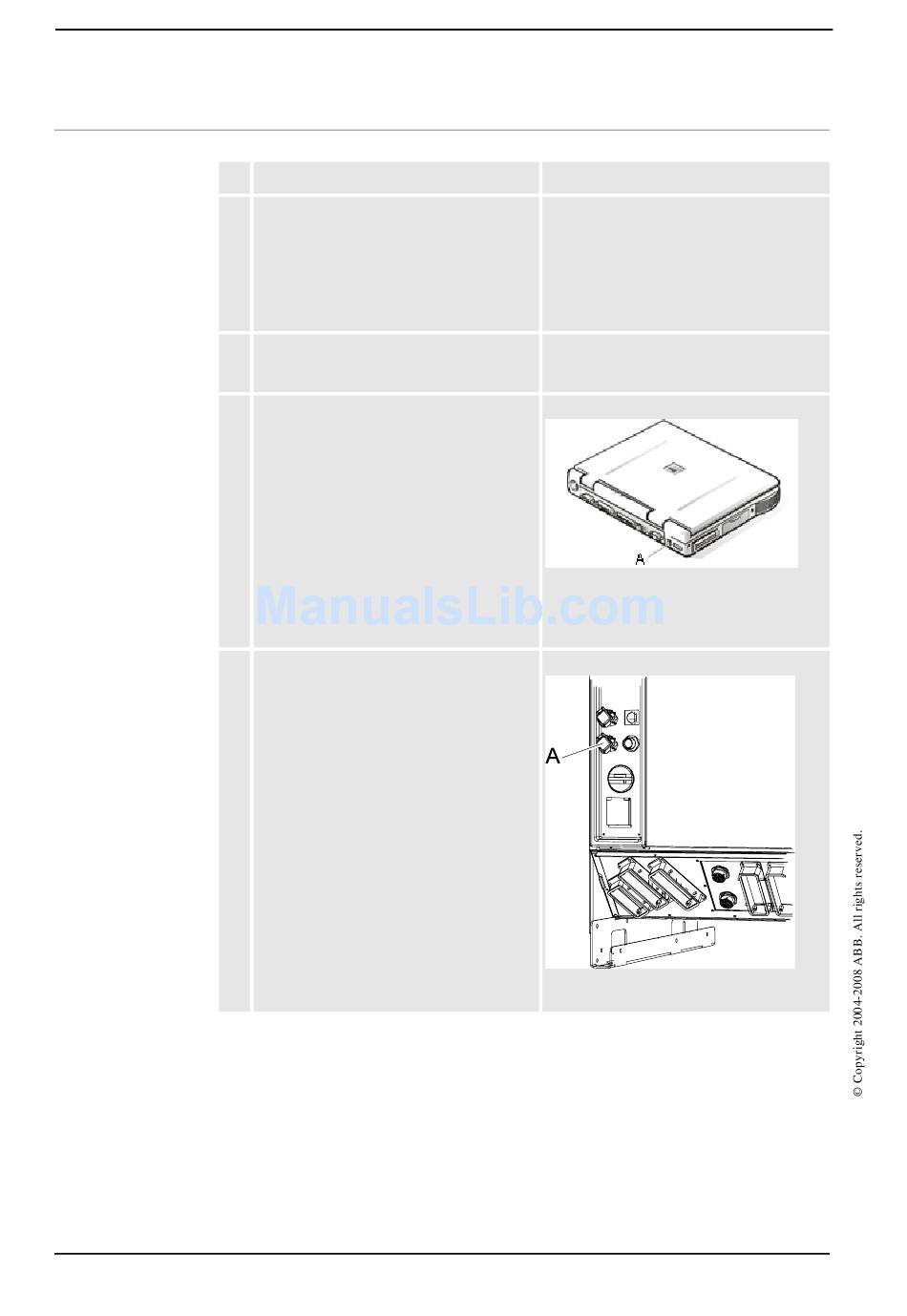

Connecting a PC to the service port
54
Action
1. Make sure the network setting on the PC to
be connected is correct.
2. Use the delivered category 5 Ethernet
crossover boot cable with RJ45
connectors.
3. Connect the boot cable to the network port
of your PC.
4. Connect the boot cable to the service port
on the controller.
Illustration
Refer to the system documentation for
your PC, depending on the operative
system you are running.
The PC must be set to "Obtain an IP
address automatically" or set as described
in Service PC Information in the Boot
Application.
The cable is delivered in the RobotWare
product box.
xx0400000844
• A: network port
The placement of the network port may
vary depending on the PC model.
xx0600002891
• A: Service port
3HAC021313-001 Revision: K
