GE AKTA avant User Manual page 105

Step
7
8
Note:
ÄKTA avant connector plate
Modules not installed in the instrument cabinet are connected via a UniNet-9 cable at
the back of the system. It is possible to connect up to three external modules.
The following illustration shows the connector plate with the UniNet-9 connectors located
on the back of the ÄKTA avant instrument.
ÄKTA avant User Manual 29035184 AE

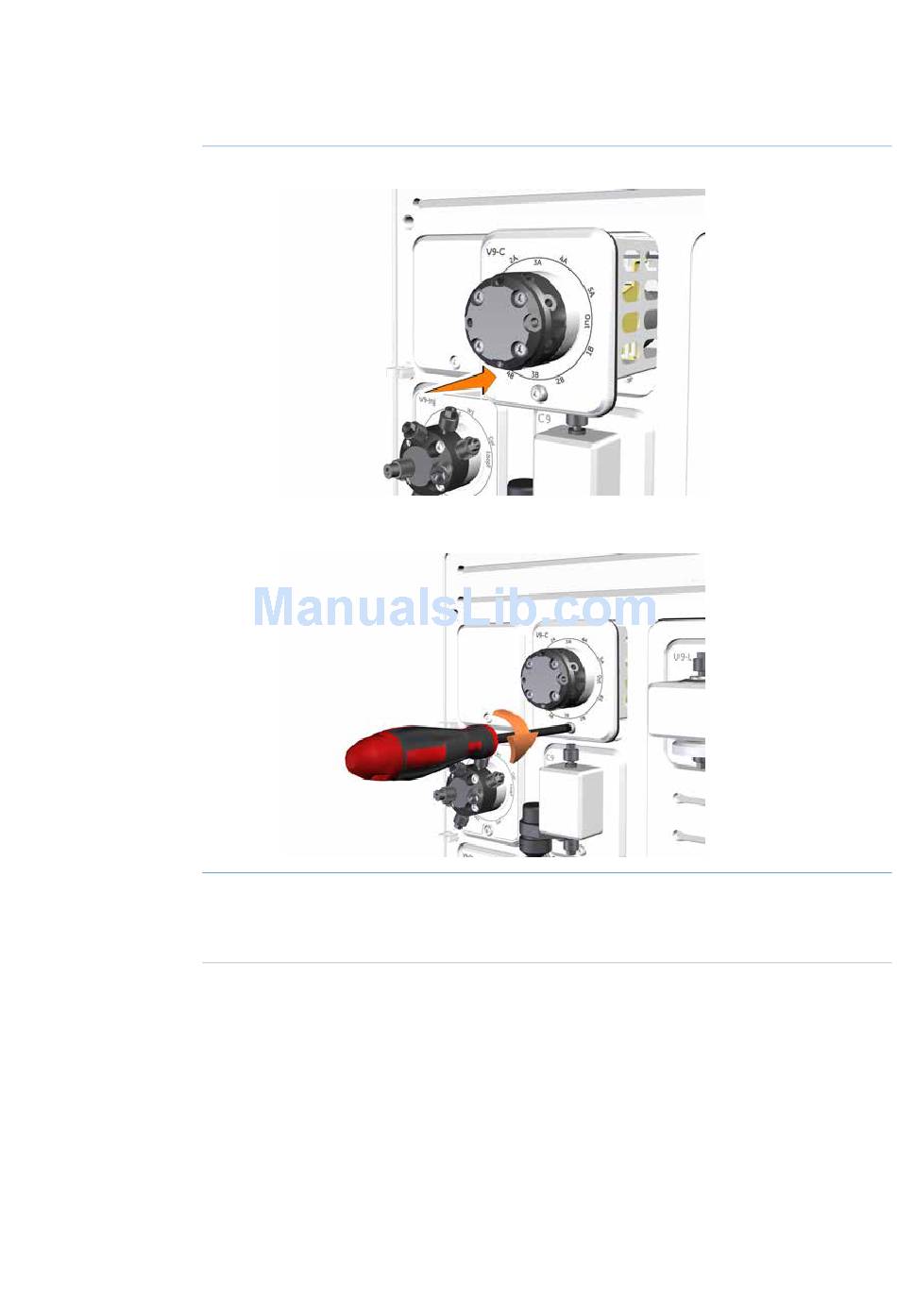

Action
Insert the module.
Fasten it with a Torx T20 screwdriver.
A warning message is displayed at start up if a module has been installed in
the instrument but not added to the System Properties dialog box in UNICORN.
4 Optional instrument modules
4.2 Installation of optional modules
