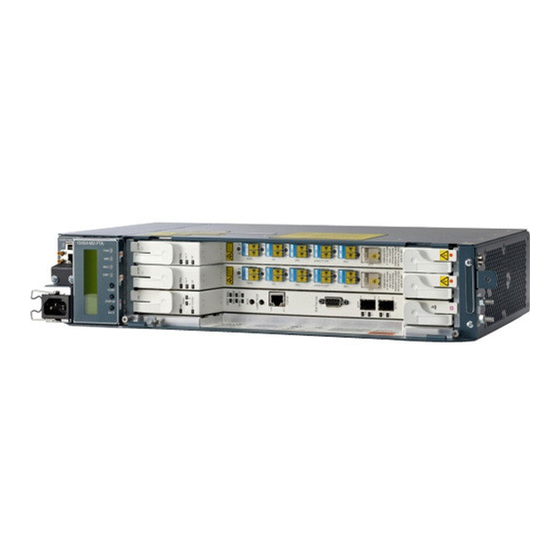

Cisco ONS 15454 DWDM Procedure Guide
Cisco ONS 15454, Cisco ONS 15454 M2, and Cisco ONS 15454 M6
Product and Software Release 9.2
May 2010
Americas Headquarters
Cisco Systems, Inc.
170 West Tasman Drive
San Jose, CA 95134-1706
USA
http://www.cisco.com
Tel: 408 526-4000
800 553-NETS (6387)
Fax: 408 527-0883
Text Part Number: 78-19286-01

Advertisement

Table of Contents
loading

Related Manuals for Cisco ONS 15454 Series

Summary of Contents for Cisco ONS 15454 Series

  • Page 1 Cisco ONS 15454 DWDM Procedure Guide Cisco ONS 15454, Cisco ONS 15454 M2, and Cisco ONS 15454 M6 Product and Software Release 9.2 May 2010 Americas Headquarters Cisco Systems, Inc. 170 West Tasman Drive San Jose, CA 95134-1706 http://www.cisco.com Tel: 408 526-4000...
  • Page 2 You can determine whether your equipment is causing interference by turning it off. If the interference stops, it was probably caused by the Cisco equipment or one of its peripheral devices. If the equipment causes interference to radio or television reception, try to correct the interference by using one or more of the following measures: •...
  • Page 3 DLP- G679 Mount the ONS 15454 Shelf Assembly in a Rack (Two People) 1-15 DLP- G680 Mount Multiple ONS 15454 Shelf Assemblies in a Rack 1-16 DLP- G8 Install the Air Ramp 1-19 Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 78-19286-01...
  • Page 4 DLP- G31 Install the FlexLayer Modules 1-71 DLP- G32 Install the Y-Cable Protection Modules in the FlexLayer Shelf 1-73 DLP- G377 Install the Y-Cable Protection Modules in the Y-Cable Module Tray 1-73 Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 78-19286-01...
  • Page 5 NTP- G297 Upgrade the ONS 15454 Multishelf with Catalyst 2950 Configuration Using the Catalyst 3560 1-94 NTP- G298 Configure a Cisco Catalyst 3560 (Active and Standby) for a Multishelf Node 1-96 NTP- G299 Configure a Cisco Catalyst 3560 (Extended) for a Multishelf Node...
  • Page 6 NTP- G269 Install the Front Door of the ONS 15454 M2 Shelf Assembly 2-65 NTP- G275 Perform the ONS 15454 M2 Shelf Installation Acceptance Test 2-67 DLP- G601 Inspect the ONS 15454 M2 Shelf Installation and Connections 2-68 Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 78-19286-01...
  • Page 7 Contents DLP- G602 Measure DC Voltage on the ONS 15454 M2 Shelf Assembly 2-69 Install the Cisco ONS 15454 M6 Shelf Assembly C H A P T E R Before You Begin Required Tools and Equipment (ANSI) Cisco-Supplied Materials (ANSI)
  • Page 8 NTP- G257 Install the Fan-Tray Assembly in the ONS 15454 M6 Shelf Assembly 3-62 NTP- G312 Attach Wires to Alarm, Timing, LAN, and Craft Pin Connections in Cisco ONS 15454 M6 3-64 DLP- G295 Install Alarm Wires in ONS 15454 M6...
  • Page 9 Turn Up a Node C H A P T E R Before You Begin NTP- G139 Verify Cisco TransportPlanner Reports and Files NTP- G22 Verify Common Card Installation NTP- G250 Verify Digital Image Signing (DIS) Information Cisco ONS 15454 DWDM Procedure Guide, Release 9.2...
  • Page 10 DLP- G290 Enable the OSI Subnet on the LAN Interface 5-44 DLP- G291 Create an IP-Over-CLNS Tunnel 5-45 NTP- G29 Set Up SNMP 5-46 NTP- G143 Import the Cisco TransportPlanner NE Update Configuration File 5-48 DLP- G351 Delete a Card in CTC 5-52 DLP- G353 Preprovision a Slot 5-54...
  • Page 11 DLP- G544 Delete a Passive Unit 5-72 NTP- G34 Install Fiber-Optic Cables on DWDM Cards and DCUs 5-73 DLP- G349 Use the Cisco TransportPlanner Internal Connections Report 5-75 NTP- G140 Install Fiber-Optic Cables Between Terminal, Hub, or ROADM Nodes 5-77...
  • Page 12 DLP- G79 Verify the OPT-BST, OPT-BST-E, or OPT-BST-L Amplifier Laser and Power DLP- G80 Verify the OPT-PRE Amplifier Laser and Power DLP- G78 Verify the 32MUX-O or 40-MUX-C Card Power DLP- G269 Verify the 32DMX-O or 40-DMX-C Card Power Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 78-19286-01...
  • Page 13 DLP- G87 Verify the AD-xB-xx.x Output Express Power 6-131 DLP- G88 Verify the AD-xC-xx.x Output Express Power 6-131 DLP- G271 Verify the AD-xC-xx.x Output Common Power 6-132 DLP- G272 Verify the AD-xB-xx.x Output Common Power 6-132 Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 xiii 78-19286-01...
  • Page 14 DLP- G274 Verify Topologies for ETR_CLO and ISC Services 7-11 DLP- G278 Provision the Optical Line Rate 7-13 DLP- G280 Delete a PPM 7-18 NTP- G33 Create a Y-Cable Protection Group 7-19 Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 78-19286-01...
  • Page 15 DLP- G400 Provision the ADM-10G Interlink or Trunk Port Alarm and TCA Thresholds 7-87 DLP- G401 Provision the ADM-10G Client Port Alarm and TCA Thresholds 7-89 DLP- G402 Change the ADM-10G OTN Settings 7-90 Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 78-19286-01...
  • Page 16 DLP- G667 Change the 40G Data Muxponder SONET (OC-192)/SDH (STM-64) Settings 7-160 DLP- G668 Change the 40G Data Muxponder Section Trace Settings 7-161 DLP- G669 Change the 40G Data Muxponder SONET or SDH Line Thresholds 7-163 Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 78-19286-01...
  • Page 17 DLP- G639 Enable or Disable EFM for Each Port Using CTC 7-201 Before You Begin 7-201 DLP- G640 Configure EFM Parameters Using CTC 7-202 DLP- G641 Configure EFM Link Monitoring Parameters Using CTC 7-203 Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 xvii 78-19286-01...
  • Page 18 NTP- G208 Provision SVLAN Rate Limiting on the GE_XP, 10GE_XP, GE_XPE, or 10GE_XPE Card 7-238 DLP- G515 Provision SVLAN Rate Limiting on the GE_XP, 10GE_XP, GE_XPE, or 10GE_XPE Card Using CTC 7-239 DLP- G471 Create a SVLAN or CVLAN Profile 7-239 Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 xviii 78-19286-01...
  • Page 19 NTP- G53 Set Up Timing 8-22 DLP- G95 Set Up External or Line Timing 8-22 DLP- G96 Set Up Internal Timing 8-25 DLP- G350 Use the Cisco Transport Planner Traffic Matrix Report 8-26 Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 78-19286-01...
  • Page 20 8-40 DLP- G378 Create, Edit, and Delete LMP Data Links 8-41 NTP- G233 Configure Link Management Protocol on the Cisco CRS-1 Router and the Cisco ONS 15454 DWDM Node 8-43 NTP- G234 Automatically Configure Link Management Protocol on the Cisco CRS-1 Router and the Cisco...
  • Page 21 DLP- G98 Provision a Firewall Tunnel 9-62 DLP- G108 Change the Service State for a Port 9-62 DLP- G109 Provision Orderwire 9-64 DLP- G110 Create a User Data Channel Circuit 9-65 Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 78-19286-01...
  • Page 22 DLP- G141 View Optical Power Statistics for 32MUX-O, 32WSS, 32WSS-L, 32DMX-O, 32DMX, 32DMX-L, 40-WSS-C, 40-WSS-CE, 40-WXC-C, 80-WXC-C, 40-MUX-C, 40-DMX-C, and 40-DMX-CE Cards 10-20 DLP- G479 View Optical Power Statistics for the PSM Card 10-21 Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 xxii 78-19286-01...
  • Page 23 NTP- G66 View Alarm-Affected Circuits 11-15 NTP- G67 View Alarm Counts on the LCD for a Node, Shelf, Slot, or Port 11-15 NTP- G68 Create, Download, and Assign Alarm Severity Profiles 11-17 Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 xxiii 78-19286-01...
  • Page 24 DLP- G294 Edit the OSI Router Configuration 12-19 DLP- G295 Edit the OSI Subnetwork Point of Attachment 12-20 DLP- G296 Edit an IP-Over-CLNS Tunnel 12-21 DLP- G297 Delete an IP-Over-CLNS Tunnel 12-22 Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 xxiv 78-19286-01...
  • Page 25 NTP- G86 Convert a Pass-Through Connection to Add/Drop Connections 12-50 NTP- G87 Change Node Timing Parameters 12-52 NTP- G88 Modify Users and Change Security 12-53 DLP- G188 Change Security Policy for a Single Node 12-54 Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 78-19286-01...
  • Page 26 DLP- G324 Change Optical Line Threshold Settings for OPT-AMP-L, OPT-AMP-17-C, OPT-AMP-C, OPT-RAMP-C, and OPT-RAMP-CE Amplifiers 13-30 DLP- G325 Change Optical Amplifier Line Settings for OPT-AMP-L, OPT-AMP-17-C, OPT-AMP-C, OPT-RAMP-C, and OPT-RAMP-CE Amplifiers 13-33 Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 xxvi 78-19286-01...
  • Page 27 DLP- G407 Change the 40-WXC-C or 80-WXC-C Optical Channel Thresholds 13-81 DLP- G408 Change 40-WXC-C or 80-WXC-C Optical Line Parameters 13-84 DLP- G409 Change the 40-WXC-C or 80-WXC-C Optical Line Thresholds 13-86 Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 xxvii 78-19286-01...
  • Page 28 NTP- G182 Convert a Line Amplifier Node to a ROADM Node 14-22 NTP- G195 Convert a Protected ROADM Node from two Separate Nodes to a Single Multishelf Node 14-24 NTP- G177 Upgrade ANS Parameters on a DWDM Node 14-31 Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 xxviii 78-19286-01...
  • Page 29 DLP- G261 Clean Multi Fiber-Optic Cable Connectors 15-31 DLP- G262 Clean Fiber Connectors with CLETOP 15-32 DLP- G263 Clean the Fiber Adapters 15-32 NTP- G40 Replace the Front Door 15-33 Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 xxix 78-19286-01...
  • Page 30 DLP- G519 Create a Service Instance Policy on GE_XP, 10GE_XP, GE_XPE, or 10GE_XPE Cards Using PCLI DLP- G520 Apply an Ingress Policy to a Port on GE_XP, 10GE_XP, GE_XPE, or 10GE_XPE Cards Using PCLI Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 78-19286-01...
  • Page 31 PCLI B-33 DLP- G650 Configure STCN on the GE_XP, 10GE_XP, GE_XPE, or 10GE_XPE Cards Using PCLI B-34 DLP- G651 Configure Preemption Delay on the Primary Edge Port Using PCLI B-35 Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 xxxi 78-19286-01...
  • Page 32 Contents DLP- G652 Configure VLAN Load Balancing on the Primary Edge Port Using PCLI B-35 N D E X Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 xxxii 78-19286-01...

  • Page 33: Table Of Contents

    Figure 1-20 Installing Standoffs and the AEP 1-47 Figure 1-21 AEP Wire-Wrap Connections to Backplane Pins 1-47 Figure 1-22 Cisco ONS 15454 Backplane Pinouts (Release 3.4 or Later) 1-55 Figure 1-23 Highlighted Environmental Alarms 1-56 Figure 1-24 Installing the AEP Cover...
  • Page 34 Figure 2-26 Connecting Office Power—DC Power Module (ANSI Only) 2-46 Figure 2-27 Connecting Office Power—DC Power Modules (ANSI Only) 2-47 Figure 2-28 Connecting Office Power—DC Power Module (ETSI Only) 2-49 Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 xxxiv 78-19286-01...
  • Page 35 Figure 3-23 Installing the DC Power Modules 3-42 Figure 3-24 DC Power Modules Installed in the ONS 15454 M6 Shelf Assembly 3-43 Figure 3-25 Installing a Power Filler Module 3-44 Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 xxxv 78-19286-01...
  • Page 36 4-34 Figure 5-1 Cisco TransportPlanner shelf layout - ONS 15454 Figure 5-2 Cisco TransportPlanner shelf layout - ONS 5454 M2 Figure 5-3 Cisco TransportPlanner shelf layout - ONS 15454 M6 Figure 5-4 Selecting the IP Address Option—ONS 15454 Shelf Assembly...
  • Page 37 Force Raman Calibration 8-19 Figure 9-1 Upgrade OCHNC Initialization—Completed 9-39 Figure 9-2 Upgrade OCHNC Initialization—Failed 9-40 Figure 9-3 Viewing the Provisionable Patchcords Table 9-41 Figure 9-4 Automatically Routing a VCAT Circuit 9-73 Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 xxxvii 78-19286-01...
  • Page 38 Figure 15-16 Extract the Fan-Tray Assembly 15-44 Figure 15-17 Fan-Tray Assembly Extracted Partially with Power Connector Disconnected 15-44 Figure 15-18 Fan-Tray Extracted 15-45 Figure 15-19 Attaching Plastic Lower Backplane Cover 15-49 Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 xxxviii 78-19286-01...
  • Page 39 32WSS-L Ports and Wavelengths Test Checklist 6-53 Table 6-3 40-WSS-C Ports and Wavelengths Test Checklist 6-76 Table 6-4 From COM-RX Side A Verification 6-149 Table 6-5 From COM-RX Side B Verification 6-150 Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 xxxix 78-19286-01...
  • Page 40 TXP_MR_2.5G and TXPP_MR_2.5G Transponder Card ITU-T G.709 Threshold Settings 7-45 Table 7-17 TXP_MR_2.5G and TXPP_MR_2.5G Transponder Card FEC Threshold Settings 7-46 Table 7-18 TXP_MR_2.5G and TXPP_MR_2.5G Transponder Card Trail Trace Identifier Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 78-19286-01...
  • Page 41 ADM-10G Card ITU-T G.709 Threshold Settings 7-92 Table 7-43 ADM-10G Card FEC Threshold Settings 7-93 Table 7-44 ADM-10GTrail Trace Identifier Settings 7-94 Table 7-45 MXP_2.5G_10G, MXP_2.5G_10E, MXP_2.5G_10E_C, MXP_2.5G_10E_L, or MXP_2.5G_10EX_C Card Settings 7-97 Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 78-19286-01...
  • Page 42 MXP_MR_10DME_C, MXP_MR_10DME_L, or MXP_MR_10DMEX_C Card Line Distance Extension Settings 7-137 Table 7-70 MXP_MR_10DME_C or MXP_MR_10DME_L Card Wavelength Trunk Settings 7-139 Table 7-71 MXP_MR_10DME_C or MXP_MR_10DME_L Card Line SONET or SDH Settings 7-140 Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 xlii 78-19286-01...
  • Page 43 Table 7-102 Ethertype Behavior 7-218 Table 7-103 GE_XPE Card PDH Ethernet Settings 7-219 Table 7-104 Jitter Buffer Values for Various Payload Types 7-220 Table 7-105 GE_XPE Card Electrical Lines Settings 7-221 Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 xliii 78-19286-01...
  • Page 44 Diagnostic and Fix Errors 9-43 Table 9-5 Circuit Protection Types 9-47 Table 9-6 Cisco ONS 15454 Circuit Status 9-47 Table 9-7 Provisionable Patchcord Ports 9-52 Table 9-8 PPC Origination Fields 9-54 Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 xliv 78-19286-01...
  • Page 45 OPT-AMP-L, OPT-AMP-17-C, OPT-AMP-C, OPT-RAMP-C, and OPT-RAMP-CE Card Amplifier Line Warning Threshold Settings 13-35 Table 13-20 OPT-AMP-L, OPT-AMP-17-C, OPT-AMP-C, OPT-RAMP-C, and OPT-RAMP-CE Card Amplifier Line Alarm Thresholds Settings 13-36 Table 13-21 OPT-RAMP-C and OPT-RAMP-CE Optical Raman Line Settings 13-39 Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 78-19286-01...
  • Page 46 40-SMR1-C and 40-SMR2-C Card Optical Line Alarm Thresholds Setting 13-97 Table 13-54 40-SMR1-C and 40-SMR2-C Card Line Settings 13-99 Table 13-55 40-SMR1-C and 40-SMR2-C Card Line Warning Threshold Settings 13-101 Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 xlvi 78-19286-01...
  • Page 47 A-12 Table A-5 Multishelf View Card-Related Shortcuts A-13 Table A-6 Node/Shelf View Card-Related Shortcuts A-14 Table A-7 Network Management Tasks in Network View A-14 Table A-8 Table Display Options A-15 Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 xlvii 78-19286-01...
  • Page 48 Tables Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 xlviii 78-19286-01...
  • Page 49 NTP-G297 Upgrade the ONS 15454 Multishelf with Catalyst 2950 Configuration Using the Catalyst 3560 1-94 NTP-G298 Configure a Cisco Catalyst 3560 (Active and Standby) for a Multishelf Node 1-96 NTP-G299 Configure a Cisco Catalyst 3560 (Extended) for a Multishelf Node...
  • Page 50 NTP-G257 Install the Fan-Tray Assembly in the ONS 15454 M6 Shelf Assembly 3-62 NTP-G312 Attach Wires to Alarm, Timing, LAN, and Craft Pin Connections in Cisco ONS 15454 M6 3-64 NTP-G308 Connect the ONS 15454 M6 Multishelf Node and the ONS 15454 M6 Subtending Shelves...
  • Page 51 NTP-G28 Create FTP Host 5-34 NTP-G132 Provision OSI 5-37 NTP-G29 Set Up SNMP 5-46 NTP-G143 Import the Cisco TransportPlanner NE Update Configuration File 5-48 NTP-G328 Add and Delete ANS Parameters 5-57 NTP-G30 Install the DWDM Cards 5-59 NTP-G31 Install the DWDM Dispersion Compensating Units...
  • Page 52 NTP-G148 Modify the 10G Data Muxponder Card Line Settings and PM Parameter Thresholds 7-134 NTP-G293 Modify the 40G Data Muxponder Card Line Settings and PM Parameter Thresholds 7-156 NTP-G281 Manage the GE_XP, 10GE_XP, GE_XPE, and 10GE_XPE Card Channel Group Settings 7-177 Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 78-19286-01...
  • Page 53 8-34 NTP-G164 Configure Link Management Protocol 8-36 NTP-G233 Configure Link Management Protocol on the Cisco CRS-1 Router and the Cisco ONS 15454 DWDM Node 8-43 NTP-G234 Automatically Configure Link Management Protocol on the Cisco CRS-1 Router and the Cisco ONS...
  • Page 54 NTP-G76 Verify Optical Span Loss Using CTC 12-2 NTP-G77 Manage Automatic Power Control 12-4 NTP-G78 View Side Power Monitoring 12-9 NTP-G80 Change Node Management Information 12-11 NTP-G134 Modify OSI Provisioning 12-13 NTP-G81 Change CTC Network Access 12-22 Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 78-19286-01...
  • Page 55 NTP-G195 Convert a Protected ROADM Node from two Separate Nodes to a Single Multishelf Node 14-24 NTP-G177 Upgrade ANS Parameters on a DWDM Node 14-31 NTP-G242 Modify the CD setting of TDC-CC and TDC-FC Cards 14-32 Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 78-19286-01...
  • Page 56 NTP-G225 Provision SVLAN Rate Limiting on the GE_XP, 10GE_XP, GE_XPE, or 10GE_XPE Card Using PCLI B-13 NTP-G220 Enable IGMP Snooping on GE_XP, 10GE_XP, GE_XPE, or 10GE_XPE Cards Using PCLI B-14 NTP-G217 Enable IGMP Fast-Leave Processing on GE_XP, 10GE_XP, GE_XPE, or 10GE_XPE Cards Using Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 78-19286-01...
  • Page 57 NTP-G286 Configure EFM on the GE_XP, 10GE_XP, GE_XPE, or 10GE_XPE Cards Using PCLI B-26 NTP-G284 Configure CFM on the GE_XP, 10GE_XP, GE_XPE, or 10GE_XPE Cards Using PCLI B-28 NTP-G288 Configure REP on the GE_XP, 10GE_XP, GE_XPE, or 10GE_XPE Cards Using PCLI B-32 Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 lvii 78-19286-01...
  • Page 58 Procedures Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 lviii 78-19286-01...
  • Page 59 DLP-G29 Install the Fiber-Storage Tray 1-68 DLP-G371 Install the Ethernet Adapter Panel 1-69 DLP-G352 Install the Y-Cable Module Tray 1-70 DLP-G30 Install the FlexLayer Shelf 1-70 DLP-G31 Install the FlexLayer Modules 1-71 Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 78-19286-01...
  • Page 60 DLP-G293 Install Timing Wires in ONS 15454 M2 - ETSI 2-56 DLP-G294 Install LAN Wires in ONS 15454 M2 2-60 DLP-G604 Install the TNC or TSC Card 2-61 DLP-G605 Provision PPM and Port for the TNC Card 2-63 Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 78-19286-01...
  • Page 61 DLP-296 Install Timing Wires on ONS 15454 M6 - ANSI 3-66 DLP-297 Install Timing Wires in ONS 15454 M6 - ETSI 3-67 DLP-298 Install LAN Wires in ONS 15454 M6 - ETSI 3-68 Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 78-19286-01...
  • Page 62 DLP-G446 Edit a TL1 Tunnel Using CTC 4-44 DLP-G447 Delete a TL1 Tunnel Using CTC 4-45 DLP-G449 Install or Reinstall the CTC JAR Files 4-46 DLP-G450 Configuring Windows Vista or Windows 7 to Support CTC 4-46 Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 lxii 78-19286-01...
  • Page 63 DLP-G353 Preprovision a Slot 5-54 DLP-G541 Add an ANS Parameter 5-58 DLP-G542 Delete an ANS Parameter 5-58 DLP-G348 Use the Cisco TransportPlanner Shelf Layout Report 5-62 DLP-G63 Install an SFP or XFP 5-67 DLP-G273 Preprovision an SFP or XFP Slot 5-68...
  • Page 64 DLP-G504 Manually Configure the SNMPv3 Proxy Trap Forwarder Table 5-140 DLP-G505 Automatically Configure the SNMPv3 Proxy Trap Forwarder Table 5-141 DLP-G268 Provision TXP_MR_10E_C Cards for Acceptance Testing DLP-G79 Verify the OPT-BST, OPT-BST-E, or OPT-BST-L Amplifier Laser and Power Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 lxiv 78-19286-01...
  • Page 65 DLP-G94 Verify Add and Drop Connections on an OADM Node with OSC-CSM Cards 6-144 DLP-G432 Set the Transponder Wavelength 6-158 DLP-G433 Record Transponder Optical Power 6-159 DLP-434 Record the OPT-AMP-17-C Power Value 6-165 DLP-435 Set the 40-WXC-C OCHNC Parameters 6-166 Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 78-19286-01...
  • Page 66 DLP-G221 Change the 10G Multirate Transponder OTN Settings 7-67 DLP-G403 Create the ADM-10G Peer Group 7-73 DLP-G469 Provision the ADM-10G Card Ethernet Settings 7-74 DLP-G397 Change the ADM-10G Line Settings 7-74 Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 lxvi 78-19286-01...
  • Page 67 DLP-G339 Provision the 10G Data Muxponder Client Port Alarm and TCA Thresholds 7-149 DLP-G366 Change the 10G Data Muxponder OTN Settings 7-153 DLP-G662 Change the 40G Multirate Muxponder Card Settings 7-157 Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 lxvii 78-19286-01...
  • Page 68 DLP-G634 Traceroute MEP Using CTC 7-199 DLP-G639 Enable or Disable EFM for Each Port Using CTC 7-201 DLP-G640 Configure EFM Parameters Using CTC 7-202 DLP-G641 Configure EFM Link Monitoring Parameters Using CTC 7-203 Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 lxviii 78-19286-01...
  • Page 69 DLP-G456 Change the OTU2_XP Line Thresholds for SONET or SDH Payloads 7-260 DLP-G457 Provision the OTU2_XP Port Alarm and TCA Thresholds 7-262 DLP-G462 Change the OTU2_XP Line RMON Thresholds for the 10G Ethernet and 10G FC Payloads 7-264 Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 lxix 78-19286-01...
  • Page 70 DLP-G508 Configure the Cisco CRS-1 Router Parameters 8-45 DLP-G481 Establish Telnet Session with the Cisco CRS-1 Router and Verify Configuration 8-46 DLP-G510 Create a Task Group, User Group, and User Account on the Cisco CRS-1 Router 8-47 DLP-G482 Configure a Static Route 8-50...
  • Page 71 DLP-G553 Create a Server Trail 9-79 DLP-G554 Repair Server Trails 9-81 DLP-G555 Provision a VCAT Circuit Source and Destination 9-82 DLP-G556 Provision an Open VCAT Circuit Source and Destination 9-83 Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 lxxi 78-19286-01...
  • Page 72 DLP-G148 View OTN PM Parameters 10-32 DLP-G149 View Payload Statistics PM Parameters 10-33 DLP-G150 View Payload Utilization PM Parameters 10-33 DLP-G151 View Payload History PM Parameters 10-34 DLP-G152 View Payload SONET/SDH PM Parameters 10-35 Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 lxxii 78-19286-01...
  • Page 73 DLP-G294 Edit the OSI Router Configuration 12-19 DLP-G295 Edit the OSI Subnetwork Point of Attachment 12-20 DLP-G296 Edit an IP-Over-CLNS Tunnel 12-21 DLP-G297 Delete an IP-Over-CLNS Tunnel 12-22 DLP-G162 Change IP Settings 12-23 Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 lxxiii 78-19286-01...
  • Page 74 DLP-G328 Grant Superuser Privileges to a Provisioning User 12-58 DLP-G191 Change User Password and Security Level on a Single Node 12-59 DLP-G192 Change User Password and Security Level for Multiple Nodes 12-60 Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 lxxiv 78-19286-01...
  • Page 75 DLP-G477 Change Optical Line Threshold Settings for the PSM Card 13-46 DLP-G478 Change the PSM ALS Maintenance Settings 13-49 DLP-G414 Change Optical Line Settings for 32MUX-O, 32DMX-O, 32DMX, 32DMX-L, 40-MUX-C, 40-DMX-C, Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 lxxv 78-19286-01...
  • Page 76 DLP-G254 Place Amplifier Ports Out of Service 14-4 DLP-G318 Place Amplifier Ports In Service 14-5 DLP-G526 Modify the CD Value of the TDC-CC and TDC-FC When Connected to OPT-AMP-C, OPT-PRE, 40-SMR-1 and 40-SMR-2 Cards 14-33 Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 lxxvi 78-19286-01...
  • Page 77 DLP-G650 Configure STCN on the GE_XP, 10GE_XP, GE_XPE, or 10GE_XPE Cards Using PCLI B-34 DLP-G651 Configure Preemption Delay on the Primary Edge Port Using PCLI B-35 DLP-G652 Configure VLAN Load Balancing on the Primary Edge Port Using PCLI B-35 Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 lxxvii 78-19286-01...
  • Page 78 Tasks Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 lxxviii 78-19286-01...
  • Page 79 The terms "Unidirectional Path Switched Ring" and "UPSR" may appear in Cisco literature. These terms Note do not refer to using Cisco ONS 15xxx products in a unidirectional path switched ring configuration. Rather, these terms, as well as "Path Protected Mesh Network" and "PPMN," refer generally to Cisco's path protection feature, which may be used in any topological network configuration.
  • Page 80 Preface Audience To use this publication, you should be familiar with Cisco or equivalent optical transmission hardware and cabling, telecommunications hardware and cabling, electronic circuitry and wiring practices, and preferably have experience as a telecommunications technician Document Organization Table 1...
  • Page 81 • Cisco Transport Planner DWDM Operations Guide • Release Notes for Cisco ONS 15454, ONS 15454 M2, and ONS 15454 M6 DWDM, Release 9.2 Release Notes for Cisco ONS 15454 SONET and SDH, Release 9.2 • Cisco ONS 15454 DWDM Procedure Guide, Release 9.2...
  • Page 82 Means reader take note. Notes contain helpful suggestions or references to material not covered in the document. Caution Means reader be careful. In this situation, the user might do something that could result in equipment damage or loss of data. Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 lxxxii 78-19286-01...
  • Page 83 üblichen Verfahren zur Vorbeugung vor Unfällen vertraut. Suchen Sie mit der am Ende jeder Warnung angegebenen Anweisungsnummer nach der jeweiligen Übersetzung in den übersetzten Sicherheitshinweisen, die zusammen mit diesem Gerät ausgeliefert wurden. BEWAHREN SIE DIESE HINWEISE GUT AUF. Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 lxxxiii 78-19286-01...
  • Page 84 Använd det nummer som finns i slutet av varje varning för att hitta dess översättning i de översatta säkerhetsvarningar som medföljer denna anordning. SPARA DESSA ANVISNINGAR Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 lxxxiv 78-19286-01...
  • Page 85 Preface Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 lxxxv 78-19286-01...
  • Page 86 Brug erklæringsnummeret efter hver advarsel for at finde oversættelsen i de oversatte advarsler, der fulgte med denne enhed. GEM DISSE ANVISNINGER Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 lxxxvi 78-19286-01...
  • Page 87 Preface Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 lxxxvii 78-19286-01...
  • Page 88 Obtaining Documentation, Obtaining Support, and Security Guidelines For information on obtaining documentation, submitting a service request, and gathering additional information, see the monthly What’s New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation, at: http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html Subscribe to the What’s New in Cisco Product Documentation as a Really Simple Syndication (RSS) feed...
  • Page 89 Install the Cisco ONS 15454 Shelf Assembly This chapter explains how to install the Cisco ONS 15454 ETSI and Cisco ONS 15454 ANSI shelf assemblies. Where procedures differ for the two shelf types, the procedure will indicate “ANSI only” or “ETSI only.”...
  • Page 90 NTP-G297 Upgrade the ONS 15454 Multishelf with Catalyst 2950 Configuration Using the Catalyst 3560, page 1-94—Complete this procedure as needed. NTP-G298 Configure a Cisco Catalyst 3560 (Active and Standby) for a Multishelf Node, page 1-96—Complete this procedure as needed. NTP-G299 Configure a Cisco Catalyst 3560 (Extended) for a Multishelf Node, page 1-97—Complete this procedure as needed.
  • Page 91 The following materials are required and are shipped with the ONS 15454 ANSI shelf (wrapped in plastic). The number in parentheses gives the quantity of the item included in the package. #12-24 x 3/4 pan-head Phillips mounting screws (48-1004-XX, 48-1007-XX) (8) • Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 78-19286-01...
  • Page 92 Tie wraps and/or lacing cord • Labels CLETOP cleaning cassette • Listed pressure terminal connectors such as ring and fork types; connectors must be suitable for • #10 AWG copper conductors Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 78-19286-01...
  • Page 93 Hex key 3-mm long arm (1) • • Bottom brackets for the fan-tray air filter • Cable assembly, Ethernet, RJ-45 (1) • Power cable (from fuse and alarm panel to MIC-A/P and MIC-C/T/P) (2) Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 78-19286-01...
  • Page 94 • Wire cutters • Note Ring runs are not provided by Cisco and can hinder side-by-side shelf installation where space is limited. Tools Needed (ETSI) To install the ONS 15454 ETSI, you need the following tools. #2 Phillips Dynamometric screwdriver •...
  • Page 95 Step 1 When you receive the ONS 15454 system equipment at the installation site, open the top of the box. The Cisco Systems logo designates the top of the box. Step 2 Remove the foam inserts from the box. The box contains the ONS 15454 shelf (wrapped in plastic) and a smaller box of items needed for installation.
  • Page 96 • The frame is not bent. Step 3 If the pins are bent or broken, or the frame is bent, call your Cisco sales engineer for a replacement. Step 4 Close the front door before installing. Return to your originating procedure (NTP).
  • Page 97 The air ramp (the angled piece of sheet metal on top of the shelf assembly) provides this spacing and should not be modified in any way. Statement 385 Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 78-19286-01...
  • Page 98 Onsite/Remote Onsite Security Level None Caution Use only the fastening hardware provided with the ONS 15454 ANSI to prevent loosening, deterioration, and electromechanical corrosion of the hardware and joined material. Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 1-10 78-19286-01...

  • Page 99: Figure 1-1 Reversing The Mounting Brackets

    23 in. (584.2 mm) mounting holes Mounting Front 19 in. (482.6 mm) L brackets Top of unit mounting holes Rear 23 in. (584.2 mm) position Step 7 Return to your originating procedure (NTP). Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 1-11 78-19286-01...
  • Page 100 Caution Although the air filter can work with older fan trays if it is installed with either side facing up, Cisco recommends that you install it with the metal bracing facing up to preserve the surface of the filter. You must install the air filter with the metal bracing facing up with 15454-CC-FTA.
  • Page 101 (1 inch) below the installed shelf assembly to allow air flow to the fan intake. If a second ONS 15454 ETSI is installed above a shelf assembly, the air ramp between the shelves provides space Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 1-13...

  • Page 102: Figure 1-3 Mounting An Ons 15454 Etsi In A Rack

    Using the Phillips Dynamometric screwdriver, install one mounting screw in each side of the assembly. Step 7 When the shelf assembly is secured to the rack, install the remaining mounting screws. Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 1-14 78-19286-01...
  • Page 103 Verify that the proper fuse and alarm panel has been installed in the top mounting space. If a fuse and Step 1 alarm panel is not present, you must install one according to manufacturer’s instructions: • (ETSI only) Verify that the fuse rating does not exceed 40A. Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 1-15 78-19286-01...
  • Page 104 If the rack is provided with stabilizing devices, install the stabilizers before mounting or servicing the unit in the rack. Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 1-16 78-19286-01...
  • Page 105 “DLP-G678 Mount the ONS 15454 Shelf Assembly in a Rack (One Person)” task on page 1-13 or the “DLP-G679 Mount the ONS 15454 Shelf Assembly in a Rack (Two People)” task on page 1-15. Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 1-17 78-19286-01...

  • Page 106: Figure 1-4 Three-Shelf Ons 15454 Etsi (Ons 15454 Sdh) Bay Assembly

    M6 mounting screws for each side of the shelf assembly. Figure 1-5 shows how to mount an air ramp in the rack. Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 1-18 78-19286-01...
  • Page 107 Step 1 Locate the rack mount unit (RMU) space specified in your site plan. Refer to the “Shelf Assembly Hardware” chapter in the Cisco ONS 15454 DWDM Reference Manual for more information about air ramp placement. Verify the rack type of your air ramp installation. The brackets are compatible with the following racks.

  • Page 108: Figure 1-6 Air Ramp With Brackets In An Etsi Configuration

    The bracket mounting holes will align with the forward-most mounting holes on the air ramp. When Step 7 aligned properly the mounting flange will be 124 mm from the front edge of the air ramp. Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 1-20 78-19286-01...
  • Page 109 The bracket mounting holes will align with the forward-most mounting holes on the air ramp. When aligned properly the mounting flange will be 80 mm from the front edge of the air ramp. Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 1-21...

  • Page 110: Figure 1-8 Positioning The Mounting Brackets For Deep Door Configuration

    “NTP-G4 Open and Remove the FMEC Cover (ETSI Step 3 Only)” procedure on page 1-26. If you are using an ANSI shelf, continue with the “NTP-G5 Remove the Backplane Covers (ANSI Only)” procedure on page 1-29. Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 1-22 78-19286-01...
  • Page 111 The ONS 15454 shelf assembly comes with a pinned hex key for locking and unlocking the front door. Turn the key counterclockwise to unlock the door and clockwise to lock it. Figure 1-9 illustrates the front door of the ANSI shelf. Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 1-23 78-19286-01...
  • Page 112 Required/As Needed As needed Onsite/Remote Onsite Security Level None For ONS 15454 ETSI shelves: Step 1 Unscrew the nut holding the ground wire to the shelf. Remove the nut and washer. Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 1-24 78-19286-01...

  • Page 113: Figure 1-10 Removing The Ons 15454 Etsi Front Door

    #4 Kepnut (49-0337-01) on the terminal lug using the open-end wrench. Remove the terminal lug and lock washer. Lift the door from its hinges at the top left corner of the door (Figure 1-11). Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 1-25 78-19286-01...

  • Page 114: Figure 1-11 Removing The Ons 15454 Ansi Front Door

    Complete the “DLP-G12 Remove the FMEC Cover” task on page 1-28. Step 2 Step 3 Continue with the “NTP-G6 Install the MIC-A/P and MIC-T/C/P FMECs (ETSI Only)” procedure on page 1-31. Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 1-26 78-19286-01...
  • Page 115 F A N F A IL M IN Step 2 Use the handles to pull the cover forward. Step 3 Return to your originating procedure (NTP). Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 1-27 78-19286-01...
  • Page 116 Detach the cover from the pin of the hinge. Step 4 Step 5 Remove the cover carefully from the left pin of the hinge. Step 6 Return to your originating procedure (NTP). Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 1-28 78-19286-01...
  • Page 117 Medium slot-head screwdriver Small slot-head screwdriver Prerequisite Procedures None Required/As Needed Required Onsite/Remote Onsite Security Level None Unscrew the five retaining screws that hold the cover in place (Figure 1-14). Step 1 Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 1-29 78-19286-01...
  • Page 118 Lift the panel by the bottom to remove it from the shelf assembly. Store the panel for later use. Attach the backplane cover(s) whenever electrical interface assemblies Step 4 (EIAs) are not installed. Step 5 Return to your originating procedure (NTP). Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 1-30 78-19286-01...
  • Page 119 Push the FMEC gently into the connector. The ONS 15454 ETSI FMECs plug into electrical connectors Step 4 on the back panel of the shelf assembly when the screws are tightened. Figure 1-15 shows FMEC installation. Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 1-31 78-19286-01...

  • Page 120: Figure 1-15 Installing Fmecs On The Ons 15454 Etsi

    F A IL M IN Tighten the screws. Step 5 Continue with the “NTP-G7 Install the Power and Ground” procedure on page 1-33. Step 6 Stop. You have completed this procedure. Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 1-32 78-19286-01...
  • Page 121 Statement 1003 Warning This equipment is intended to be grounded. Ensure that the host is connected to earth ground during normal use. Statement 39 Warning Use copper conductors only. Statement 1025 Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 1-33 78-19286-01...
  • Page 122 “DLP-G19 Turn On and Verify Office Power” task on page 1-39. Step 4 Step 5 Continue with the “NTP-G8 Install the Fan-Tray Assembly” procedure on page 1-41. Stop. You have completed this procedure. Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 1-34 78-19286-01...
  • Page 123 Connectors must be suitable for copper conductors. When terminating power, return, and frame ground, do not use soldering lug connectors, screwless Caution (push-in) connectors, quick-connect connectors, or other friction-fit connectors. Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 1-35 78-19286-01...
  • Page 124 Table 1-1 Pin Connection of the Power FMECs Function Cable Color Battery return Black –48 V battery Ground Green with yellow stripes Step 5 Return to your originating procedure (NTP). Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 1-36 78-19286-01...
  • Page 125 Measure and cut the cables as needed to reach the ONS 15454 from the fuse panel. Figure 1-16 shows Step 2 the ONS 15454 power terminals. Step 3 Dress the power according to local site practice. Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 1-37 78-19286-01...

  • Page 126: Figure 1-16 Cisco Ons 15454 Power Terminals

    Crimp the lugs onto the ends of all power leads. Step 6 When terminating battery and battery return connections as shown in Figure 1-16, follow a Note torque specification of 10 in-lb. Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 1-38 78-19286-01...
  • Page 127 B-side return ground and verify that no voltage is present. Step 2 To power up the node, insert the fuse into the fuse position according to site practice. The fuse rating must not exceed 30A. Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 1-39 78-19286-01...
  • Page 128 Voltage B—Voltage of the shelf that corresponds to power supply B, in millivolts. • Chassis Temperature—Temperature of the shelf in degrees Celsius. • Click the Reset button to refresh the voltage and temperature values. Step 3 Stop. You have completed this procedure. Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 1-40 78-19286-01...
  • Page 129 If you install the air filter below 15454E-CC-FTA or 15454-CC-FTA, only filters with part numbers 700-23193-01 and 700-23194-01 can be used in this configuration. Error messages appear on the TCC2/TCC2P/TCC3 card, the fan-tray LED, and in Cisco Transport Note Controller (CTC) when the fan-tray assembly is removed from the shelf or when one fan is not working.
  • Page 130 Caution Although the air filter can work with older fan trays if it is installed with either side facing up, Cisco recommends that you install it with the metal bracing facing up to preserve the surface of the filter. You must install the air filter with the metal bracing facing up with 15454E-CC-FTA or 15454-CC-FTA.

  • Page 131: Figure 1-17 Installing The Fan-Tray Assembly On The Ons 15454 Etsi

    Install the Cisco ONS 15454 Shelf Assembly Required Tools and Equipment (ETSI) Figure 1-17 Installing the Fan-Tray Assembly on the ONS 15454 ETSI F A N F A IL M IN Fan tray assembly Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 1-43 78-19286-01...

  • Page 132: Figure 1-18 Installing The Fan-Tray Assembly On The Ons 15454 Ansi

    “NTP-G9 Install the Alarm Expansion Panel (ANSI Only)” procedure on page 1-45. Otherwise, continue with the “NTP-G10 Attach Wires to Alarm, Timing, LAN, and Craft Pin Connections” procedure on page 1-48. Stop. You have completed this procedure. Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 1-44 78-19286-01...
  • Page 133 Only the AEP alarm contacts can be used. Remove the two backplane screws. Replace the two screws with standoffs. Insert the longer standoff on Step 1 the left, and the shorter standoff on the right (Figure 1-19). Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 1-45 78-19286-01...

  • Page 134: Figure 1-19 Replace Backplane Screws With Standoffs

    Replace Backplane Screws with Standoffs Longer Shorter Step 2 Attach the remaining two standoffs on either side of the backplane (Figure 1-20). Position the AEP board over the standoffs. Step 3 Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 1-46 78-19286-01...

  • Page 135: Figure 1-20 Installing Standoffs And The Aep

    Plug the other end of the AEP cable into AEP connector port. Figure 1-21 AEP Wire-Wrap Connections to Backplane Pins White Orange Black Yellow BITS ENVIRONMENTAL ALARMS MODEM CRAFT LOCAL ALARMS IN/OUT FG10 FG11 FG12 Violet Green Brown Slate Blue Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 1-47 78-19286-01...
  • Page 136 Prerequisite Procedures NTP-G6 Install the MIC-A/P and MIC-T/C/P FMECs (ETSI Only), page 1-31 NTP-G5 Remove the Backplane Covers (ANSI Only), page 1-29 Required/As Needed As needed Onsite/Remote Onsite Security Level None Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 1-48 78-19286-01...
  • Page 137 0.51 mm² or 0.64 mm² (#22 or #24 AWG) wires Prerequisite Procedures NTP-G6 Install the MIC-A/P and MIC-T/C/P FMECs (ETSI Only), page 1-31 Required/As Needed As needed Onsite/Remote Onsite Security Level None Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 1-49 78-19286-01...
  • Page 138 FGND Ground EXALM7– Extra alarm 7 EXALM7+ Extra alarm 7 EXALM8– Extra alarm 8 EXALM8+ Extra alarm 8 EXALM9– Extra alarm 9 EXALM9+ Extra alarm 9 EXALM10– Extra alarm 10 Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 1-50 78-19286-01...
  • Page 139 Connect the DB-62 connector to the ALARM IN/OUT connector on the MIC-A/P faceplate. Step 3 Tighten the screws of the connector on the alarm cable. Step 4 Return to your originating procedure (NTP). Step 5 Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 1-51 78-19286-01...
  • Page 140 Connect the other end of the cable to the external source of the timing signal according to Table 1-4. Step 4 Repeat Step 3 for each cable that is required. Return to your originating procedure (NTP). Step 5 Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 1-52 78-19286-01...
  • Page 141 LAN Pin Assignments RJ-45 Pin RJ-45 Pin Function LAN 1 PNMSRX+ Connecting to DCE white/green (a hub or switch) PNMSRX– green Cross-over Ethernet cable PNMSTX white/orange — — PNMSTX– orange — — Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 1-53 78-19286-01...
  • Page 142 — PNMSTX– orange — — 1. The Cisco ONS 15454 ETSI is DCE. Return to your originating procedure (NTP). Step 2 DLP-G23 Install Alarm Wires on the Backplane (ANSI Only) Purpose This task installs alarm wires on the backplane so that you can provision external (environmental) alarms and controls with the AIC-I card.
  • Page 143 Chapter 1 Install the Cisco ONS 15454 Shelf Assembly Required Tools and Equipment (ETSI) Figure 1-22 Cisco ONS 15454 Backplane Pinouts (Release 3.4 or Later) BITS ENVIRONMENTAL ALARMS MODEM CRAFT LOCAL ALARMS IN/OUT FG10 FG11 FG12 Field Function Field Function BITS BITS Output 2 negative (–)

  • Page 144: Figure 1-23 Highlighted Environmental Alarms

    Output to external device 1 ring BITS-2 Input from BITS device 2 BITS-2 Input from BITS device 2 ring BITS-2 Output to external device 2 BITS-2 Output to external device 2 Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 1-56 78-19286-01...
  • Page 145 Required Tools and Equipment (ETSI) Note For more detailed information about timing, refer to the “Timing” chapter in the Cisco ONS 15454 DWDM Reference Manual. To set up system timing, see the “NTP-G53 Set Up Timing” procedure on page 8-22.
  • Page 146 Wrap the ground shield of the craft interface cable to the frame-ground pin. Step 2 Wrap the ground wire of your computer cable to pin A3 on the craft pin field. Table 1-8 shows the pin assignments for the CRAFT pin field. Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 1-58 78-19286-01...
  • Page 147 Security Level None Step 1 Position the lower cover over the AEP. Make sure that the AEP AMP Champ connectors protrude through the cutouts in the lower cover (Figure 1-24). Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 1-59 78-19286-01...

  • Page 148: Figure 1-24 Installing The Aep Cover

    Alarm Input Pin Assignments AMP Champ Pin Signal Name AMP Champ Pin Signal Name ALARM_IN_1– ALARM_IN_2– ALARM_IN_3– ALARM_IN_4– ALARM_IN_5– ALARM_IN_6– ALARM_IN_7– ALARM_IN_8– ALARM_IN_9– ALARM_IN_10– ALARM_IN_11– ALARM_IN_12– ALARM_IN_13– ALARM_IN_14– ALARM_IN_15– ALARM_IN_16– Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 1-60 78-19286-01...
  • Page 149 NO_1 NO_2 — COM_2 COM_3 — NO_3 NO_4 — COM_4 COM_5 — NO_5 NO_6 — COM_6 COM_7 — NO_7 NO_8 — COM_8 COM_9 — NO_9 NO_10 — COM_10 COM_11 — Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 1-61 78-19286-01...

  • Page 150: Figure 1-25 Alarm Input Connector

    XREF=6 ALARM_IN_19- ALARM_IN_18- XREF=6 XREF=6 ALARM_IN_20- ALARM_IN_21- XREF=6 XREF=6 ALARM_IN_22- ALARM_IN_23- XREF=6 XREF=6 ALARM_IN_25- ALARM_IN_24- XREF=6 XREF=6 ALARM_IN_27- ALARM_IN_26- XREF=6 XREF=6 ALARM_IN_28- ALARM_IN_29- XREF=6 XREF=6 ALARM_IN_31- ALARM_IN_30- XREF=5 ALARM_IN_+ GND2 Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 1-62 78-19286-01...

  • Page 151: Figure 1-26 Alarm Output Connector

    NTP-G4 Open and Remove the FMEC Cover (ETSI Only), page 1-26 Required/As Needed Required Onsite/Remote Onsite Security Level None Step 1 Insert the cover carefully onto the left pin of the hinge (Figure 1-27). Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 1-63 78-19286-01...

  • Page 152: Figure 1-27 Ons 15454 Etsi Fmec Cover

    Attach the cover to the shelf using the screws on the top of the cover. Step 7 Continue with the “NTP-G14 Install DWDM Equipment” procedure on page 1-66. Stop. You have completed this procedure. Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 1-64 78-19286-01...

  • Page 153: Figure 1-28 Backplane Attachment For The Rear Cover

    Step 4 Attach the cover by hanging it from the mounting screws on the back of the mounting brackets and Step 5 pulling it down until it fits snugly into place. Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 1-65 78-19286-01...

  • Page 154: Figure 1-29 Installing The Rear Cover

    Step 3 Complete the “DLP-G29 Install the Fiber-Storage Tray” task on page 1-68 as needed. Complete the “DLP-G371 Install the Ethernet Adapter Panel” task on page 1-69 as needed. Step 4 Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 1-66 78-19286-01...
  • Page 155 Procedures for installing FlexLayer hardware in this chapter require that you have a network plan calculated for your DWDM network with Cisco Transport Planner, Release 9.2. Cisco TransportPlanner is a DWDM planning tool that is available from your Cisco account representative. Cisco TransportPlanner prepares a shelf plan for each network node and calculates the power and attenuation levels for the DWDM cards installed in the node.
  • Page 156 2 RUs.) Locate the RMU space specified in your site plan. Refer to the “Shelf Assembly Hardware” chapter in the Cisco ONS 15454 DWDM Reference Manual for common site configurations. Verify that the mounting brackets attached to the unit are correct for your rack size. Complete “DLP-G3...
  • Page 157 The EAP requires 1 RU in a standard 19-inch (482.6-mm), 23-inch (584.2-mm)/600 mm x 600mm, or 600 mm x 300 mm rack. Locate the RMU space specified in your site plan. Refer to the “Shelf Assembly Hardware” chapter in the Cisco ONS 15454 DWDM Reference Manual for common ANSI and ETSI site configurations.
  • Page 158 Locate the RMU space specified in your site plan. Refer to the “Shelf Assembly Hardware” chapter in the Cisco ONS 15454 DWDM Reference Manual for common site configurations, and use the Cisco TransportPlanner Internal Connections Report to determine how many Y-cable modules you need to install.
  • Page 159 Table 1-11 lists the two-channel FlexLayer modules and part numbers. Refer to the “Shelf Assembly Hardware” chapter in the Cisco ONS 15454 DWDM Reference Manual for more information about FlexLayer modules. Table 1-11 ONS 15xxx Two-Channel Add/Drop FlexLayer Module Hardware Part...

  • Page 160: Figure 1-30 Ons 15Xxx Flexlayer Shelf Assembly

    Frame Ground Terminal Fiber Management Tray VOA Module Repeat this task as necessary for each FlexLayer module you want to install. Step 4 Step 5 Return to your originating procedure (NTP). Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 1-72 78-19286-01...
  • Page 161 Security Level None Step 1 According to the Cisco TransportPlanner Internal Connections Report, determine which slots you will use to install the Y-cable modules. Step 2 Open the drawer of the tray by pushing inward on the latches located at the left and right front of the tray.
  • Page 162 Return to your originating procedure (NTP). NTP-G15 Install the Common Control Cards Purpose This procedure describes how to install the common control cards. Tools/Equipment Redundant TCC2/TCC2P/TCC3 cards on Cisco ONS 15454 shelf (required) AIC-I card (optional) MS-ISC-100T (optional; for multishelf node configurations) Prerequisite Procedures...
  • Page 163 FAIL and ACT/STBY LEDs. Removing a TCC2/TCC2P/TCC3 during the software transfer process will corrupt the system memory. Note Allow each card to boot completely before installing the next card. Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 1-75 78-19286-01...
  • Page 164 TCC2 card initializes. The alarm should clear after the card completely boots. Note If the FAIL LED is on continuously, see the tip in Step 8 about the TCC2 card automatic upload. Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 1-76 78-19286-01...
  • Page 165 Both green PWR LEDs turn on for 10 seconds. The PWR LEDs then turn red for 2 to 3 minutes before going to steady green. During this time, the ACT/STBY, MJ, and MN LEDs might turn on, followed by the SNYC LED briefly. Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 1-77 78-19286-01...
  • Page 166 TCC2/TCC2P/TCC3 card and install a replacement card. Refer to the release-specific software upgrade document to replace the software. To replace the TCC2/TCC2P/TCC3 card, refer to the Cisco ONS 15454 DWDM Troubleshooting Guide. Step 8 Repeat Steps through for the redundant TCC2/TCC2P/TCC3 card.
  • Page 167 It might take up to 3 minutes for the PWR A and PWR B LEDs to update. Note If you insert a card into a slot provisioned for a different card, no LEDs turn on. Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 1-79 78-19286-01...
  • Page 168 The card can be installed in any slot from Slot 1 to 6 or 12 to 17. Cisco recommends that you install the MS-ISC-100T cards in Slot 6 and Slot 12.
  • Page 169 1-32). For more information on MS-ISC-100T card port assignments, refer to the “Common Control Cards” chapter in the Cisco ONS 15454 DWDM Reference Manual. Using the 5.9 in. (0.15 m) CAT-5 LAN cable, plug one connector into the NC port of the MS-ISC-100T card located on the left side of the node controller shelf (Slots 1 to 6) and plug the other connector into the front panel (RJ-45 connector) of the TCC2/TCC2P/TCC3 card in Slot 7.
  • Page 170 Using a cross-over (CAT-5) LAN cable, plug one connector into the front panel of the subtending shelf TCC2/TCC2P/TCC3 card in Slot 7 and plug the other end into the SSC1 port on the left EAP. Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 1-82...
  • Page 171 Use this procedure to connect a multishelf node and subtending shelves to two Cisco Catalyst 2950s and configure the Cisco Catalyst 2950. Tools/Equipment Two Cisco Catalyst 2950 switches must be installed in same rack as the node controller shelf; refer to the Cisco Catalyst 2950 product documentation for installation instructions.
  • Page 172 Onsite or remote Security Level Superuser When Cisco Catalysts are used in a multishelf node configuration, the Cisco Catalysts can be used for Note other applications as long as they do not interfere with the VLAN settings of the multishelf node configuration.
  • Page 173 Required Onsite/Remote Onsite Security Level None At the Cisco IOS command line interface (CLI) for the MS-ISC-100T card, enter the following spanning Step 1 tree commands: Router(config)# bridge public VLAN ID protocol rstp Router(config)# bridge public VLAN ID forward-time 5...
  • Page 174 (Router(config-if)bridge-group private VLAN ID priority 0 Router(config)#interface FastEthernet11 Router(config)# no ip address Router(config)#no ip route-cache Router(config)# shutdown Enter the following interface commands: Step 6 (Router(config)# interface POS0 (Router(config)# no ip address Cisco ONS 15454 DWDM Procedure Guide, Release 9.2 1-86 78-19286-01...
  • Page 175 Use this procedure to perform a shelf installation acceptance test for the ONS 15454 ETSI or ONS 15454 ANSI. Tools/Equipment Voltmeter Prerequisite Procedures Applicable procedures in Chapter 1, “Install the Cisco ONS 15454 Shelf Assembly” Required/As Needed Required Onsite/Remote Onsite...

This manual is also suitable for:

Ons 15454Ons 15454 m2Ons 15454 m6

Table of Contents
