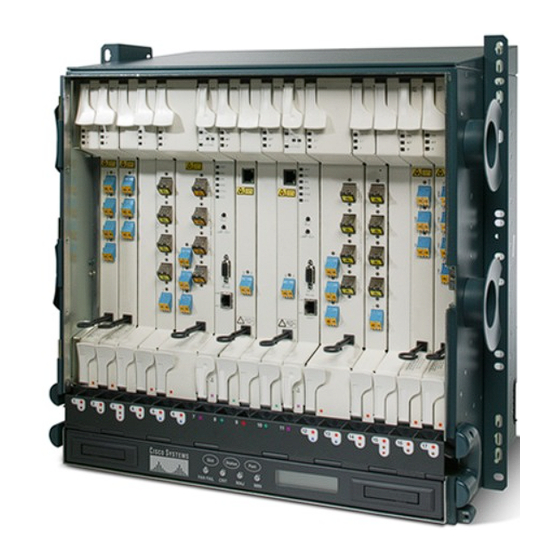

Cisco ONS 15454 M12 Maintenance Manual

Maintaining the ONS 15454 M12 (ANSI and ETSI),
ONS 15454 M2 and ONS 15454 M6 Shelf
This chapter explains how to maintain the ONS 15454 (ANSI and ETSI), ONS 15454 M2 and ONS 15454
M6 shelf installations.
Note Unless otherwise specified, "ONS 15454" refers to both ANSI and ETSI M12 shelf assemblies.
Note Due to memory limitations, TCC2/TCC2P cards are not supported as the node controller in multi-shelf
configuration from R10.5.2.6. Hence, it is recommended to use TCC3 card as the node controller in multi-shelf
configuration. However, the TCC2/TCC2P cards can be used as a subtended controller and also in a stand-alone
configuration.
•
•
•
•
•
•
•
•
•
•
•
•

NTP-G114 Inspect and Replace the Air Filter

Purpose
NTP-G114 Inspect and Replace the Air Filter, on page 1
NTP-G274 Replace the Air Filter of the ONS 15454 M2 Shelf Assembly, on page 5
NTP-G262 Replace the Air Filter of the ONS 15454 M6 Shelf Assembly, on page 7
NTP-G263 Replace the Air Filter of the AC Power Module in the ONS 15454 M6 Shelf Assembly, on
page 10
NTP-G115 Clean Fiber Connectors, on page 11
NTP-G40 Replace the Front Door , on page 14
NTP-G116 Replace the Fan-Tray Assembly of the ONS 15454 Shelf Assembly, on page 16
NTP-G272 Replace the Fan-Tray Assembly of the ONS 15454 M2 Shelf Assembly, on page 22
NTP-G260 Replace the Fan-Tray Assembly of the ONS 15454 M6 Shelf Assembly, on page 24
NTP-G117 Replace the ANSI Shelf Alarm Interface Panel, on page 26
NTP-G118 Replace the ANSI Shelf Plastic Lower Backplane Cover, on page 29
NTP-G795 Change System Mode Using LCD, on page 30
This procedure ensures that the air filter is free from dirt and dust, which allows
optimum air flow and prevents dirt and dust from entering the shelf.
Maintaining the ONS 15454 M12 (ANSI and ETSI), ONS 15454 M2 and ONS 15454 M6 Shelf
1
