B r i d g e M o d e
B r i d g e M o d e

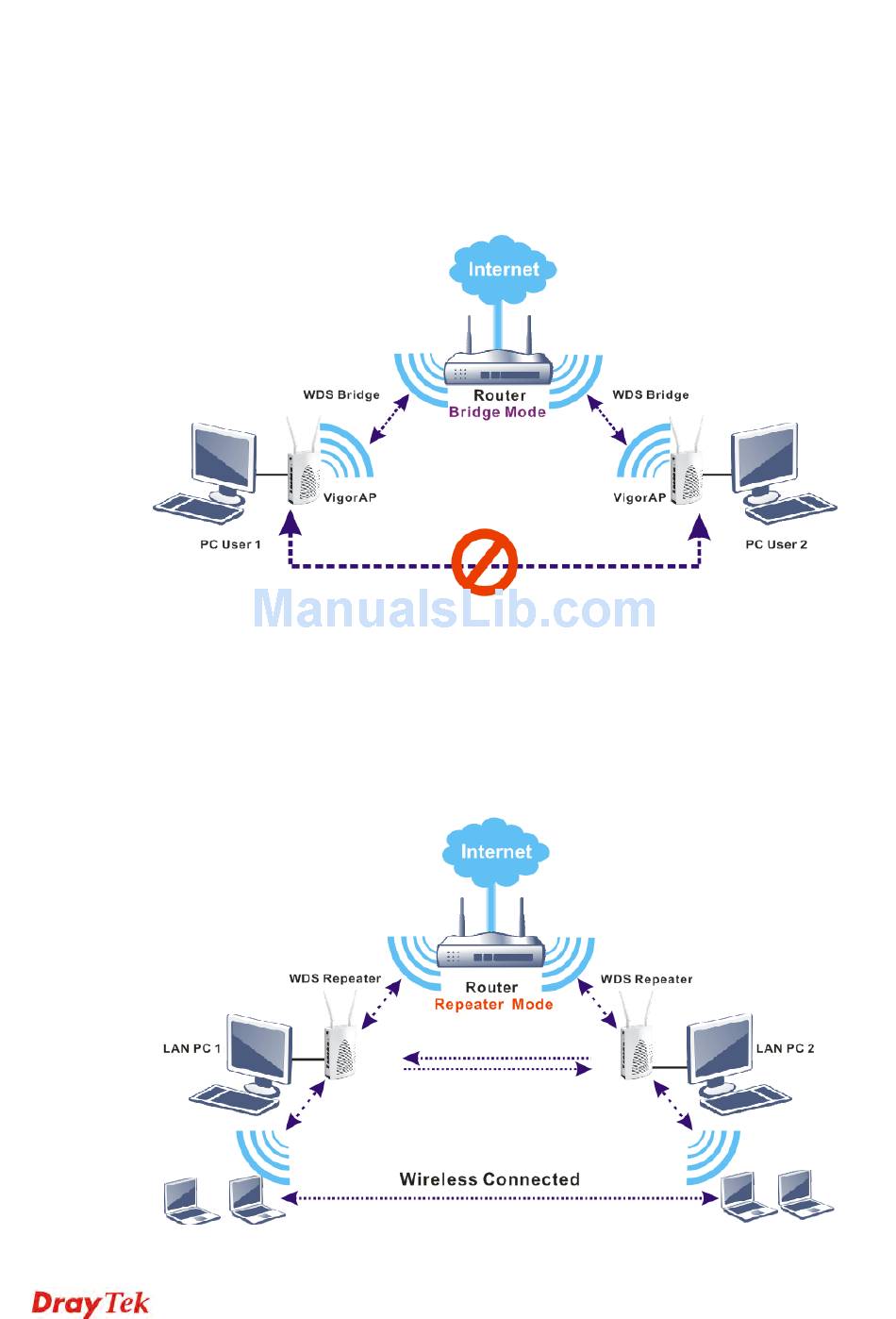

Vigor routers (and / or Vigor APs) with WDS Bridge link established can communicate with
each other. Wireless stations (clients) within the effective range of wireless signal can access
into Internet through the router /AP. However, PC users under VigorAPs without WDS Bridge
link established cannot communicate with each other (refer to the following figure, PC User 1
and PC Users 2).
R e p e a t e r M o d e
R e p e a t e r M o d e
Vigor routers (and / or Vigor APs) with WDS Repeater link established can communicate with
each other, and communicate with wireless stations (clients) due to the coverage range of a
wireless connection extended.
The wireless signal from the root router (AP) can be received and extended by other router
(AP), therefore the coverage range of wireless signal can be expanded which is convenient for
remote wireless stations which require to access Internet via the Virgor router (AP).
