RIP Protocol

WAN IP Network

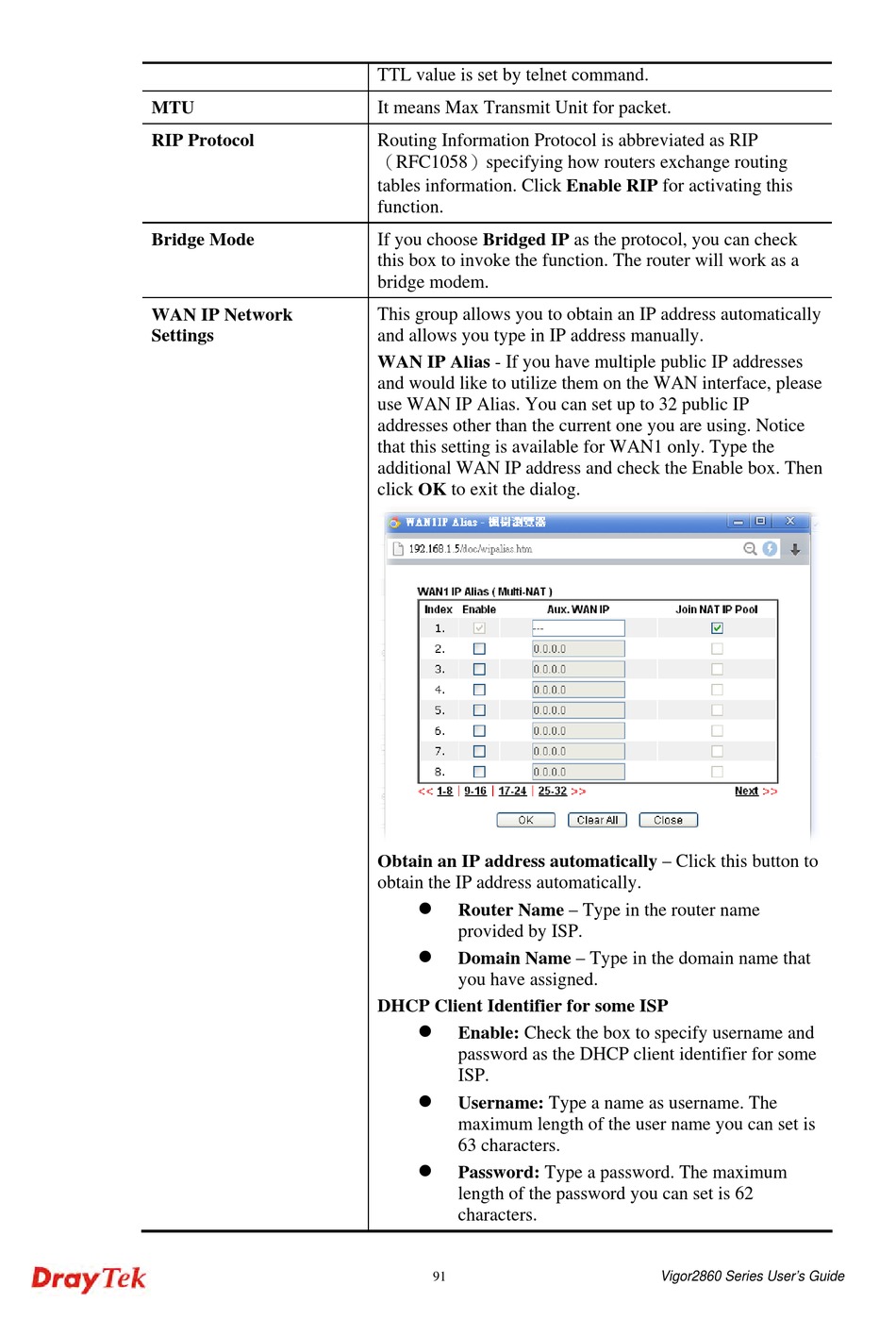

TTL value is set by telnet command.

It means Max Transmit Unit for packet.

Routing Information Protocol is abbreviated as RIP

（RFC1058）specifying how routers exchange routing

tables information. Click Enable RIP for activating this

If you choose Bridged IP as the protocol, you can check

this box to invoke the function. The router will work as a

bridge modem.

This group allows you to obtain an IP address automatically

and allows you type in IP address manually.

WAN IP Alias - If you have multiple public IP addresses

and would like to utilize them on the WAN interface, please

use WAN IP Alias. You can set up to 32 public IP

addresses other than the current one you are using. Notice

that this setting is available for WAN1 only. Type the

additional WAN IP address and check the Enable box. Then

click OK to exit the dialog.

Obtain an IP address automatically – Click this button to

obtain the IP address automatically.

Router Name – Type in the router name

provided by ISP.

Domain Name – Type in the domain name that

you have assigned.

DHCP Client Identifier for some ISP

Enable: Check the box to specify username and

password as the DHCP client identifier for some

Username: Type a name as username. The

maximum length of the user name you can set is

63 characters.

Password: Type a password. The maximum

length of the password you can set is 62

Vigor2860 Series User's Guide
