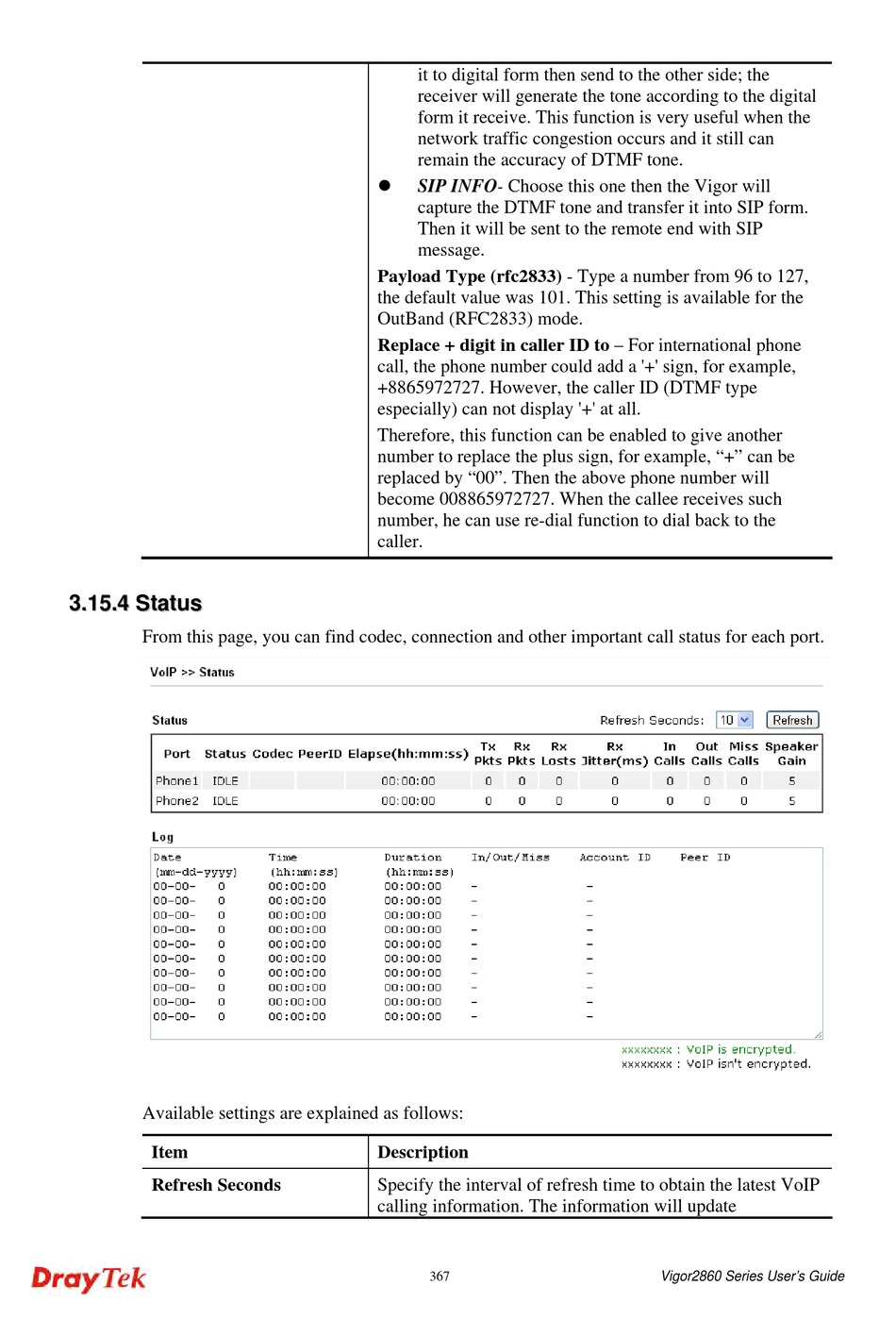

From this page, you can find codec, connection and other important call status for each port.

Available settings are explained as follows:

Refresh Seconds

it to digital form then send to the other side; the

receiver will generate the tone according to the digital

form it receive. This function is very useful when the

network traffic congestion occurs and it still can

remain the accuracy of DTMF tone.

SIP INFO- Choose this one then the Vigor will

capture the DTMF tone and transfer it into SIP form.

Then it will be sent to the remote end with SIP

Payload Type (rfc2833) - Type a number from 96 to 127,

the default value was 101. This setting is available for the

OutBand (RFC2833) mode.

Replace + digit in caller ID to – For international phone

call, the phone number could add a '+' sign, for example,

+8865972727. However, the caller ID (DTMF type

especially) can not display '+' at all.

Therefore, this function can be enabled to give another

number to replace the plus sign, for example, "+" can be

replaced by "00". Then the above phone number will

become 008865972727. When the callee receives such

number, he can use re-dial function to dial back to the

Specify the interval of refresh time to obtain the latest VoIP

calling information. The information will update
