Installing Device Labels

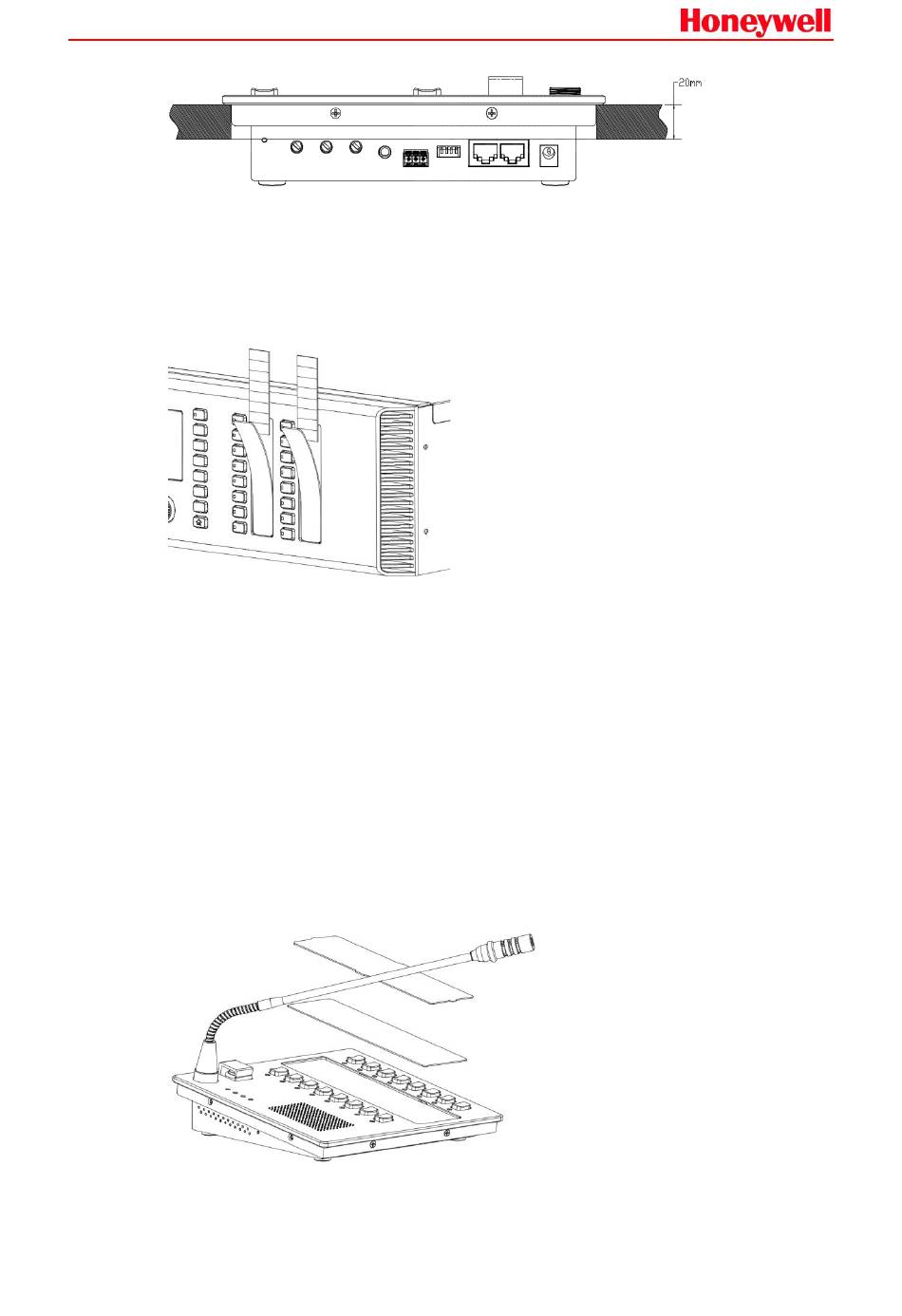

Installing RK-MCU Labels
There are 8 zone buttons and 8 audio source buttons on the front panel of the RK-MCU. The buttons
can be identified by the labels on the right. Standard labels are provided, users can write the button
name on the labels, then install the labels as shown below.
To install the labels, follow these steps:
1． Use a flat-blade tool, such as a screwdriver, to lift the plastic cover of the label slot.
2． Remove the protective cover.
3． Place the label in the slot.
4． Replace the plastic cover.
Installing RK-MIC Labels
There are 8 configurable buttons on the panel of the RK-MIC; users can write the button name on
the label and then install it on the RK-MIC.
The steps are as follow:
1． Use a flat-blade tool, such as a screwdriver, to lift the plastic cover of the label slot.
2． Remove the protective cover.
3． Place the label in the slot.
4． Replace the plastic cover.
37
