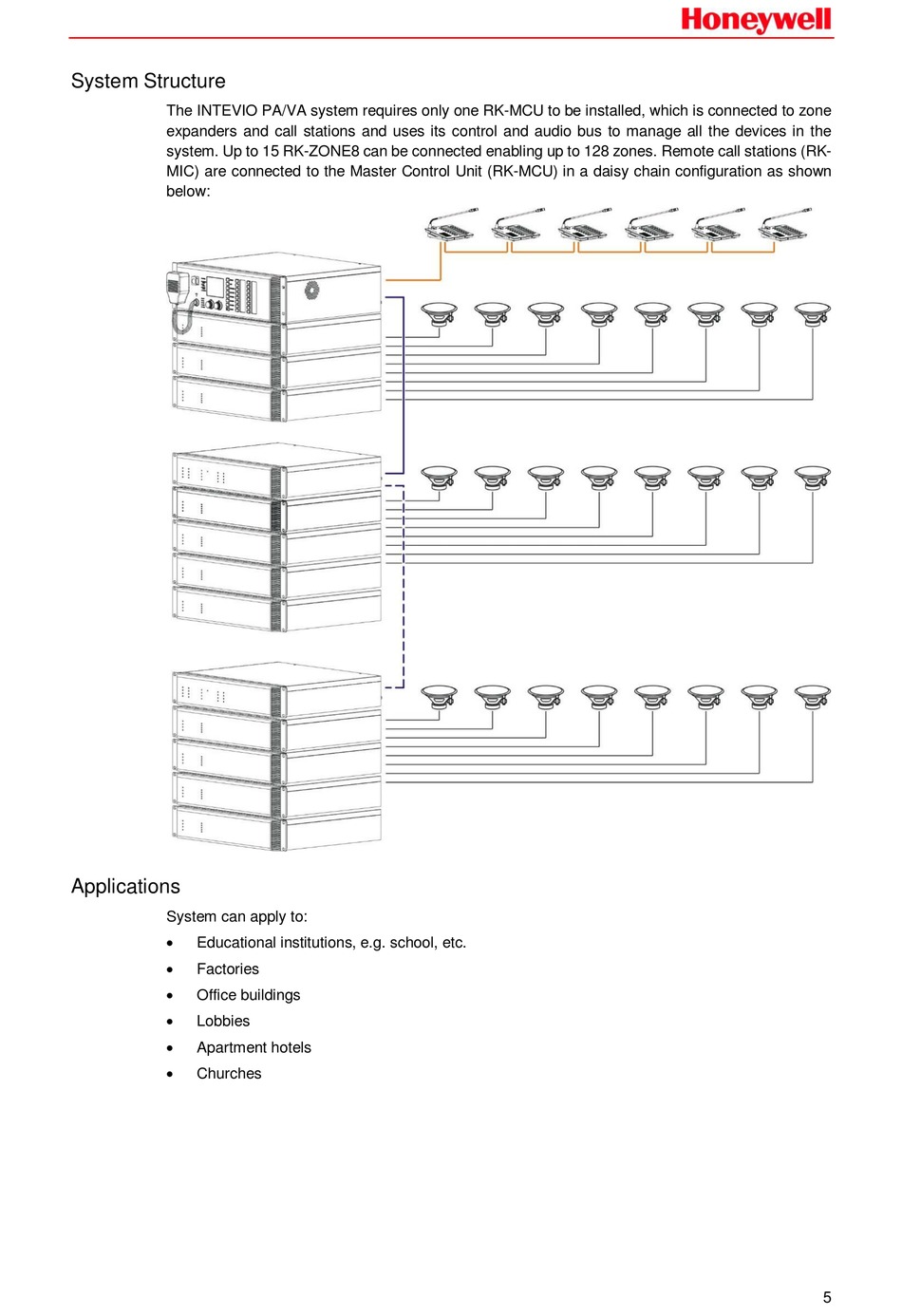

System Structure

The INTEVIO PA/VA system requires only one RK-MCU to be installed, which is connected to zone
expanders and call stations and uses its control and audio bus to manage all the devices in the
system. Up to 15 RK-ZONE8 can be connected enabling up to 128 zones. Remote call stations (RK-
MIC) are connected to the Master Control Unit (RK-MCU) in a daisy chain configuration as shown
below:

Applications

System can apply to:

Educational institutions, e.g. school, etc.

Factories

Office buildings

Lobbies

Apartment hotels

Churches
5
