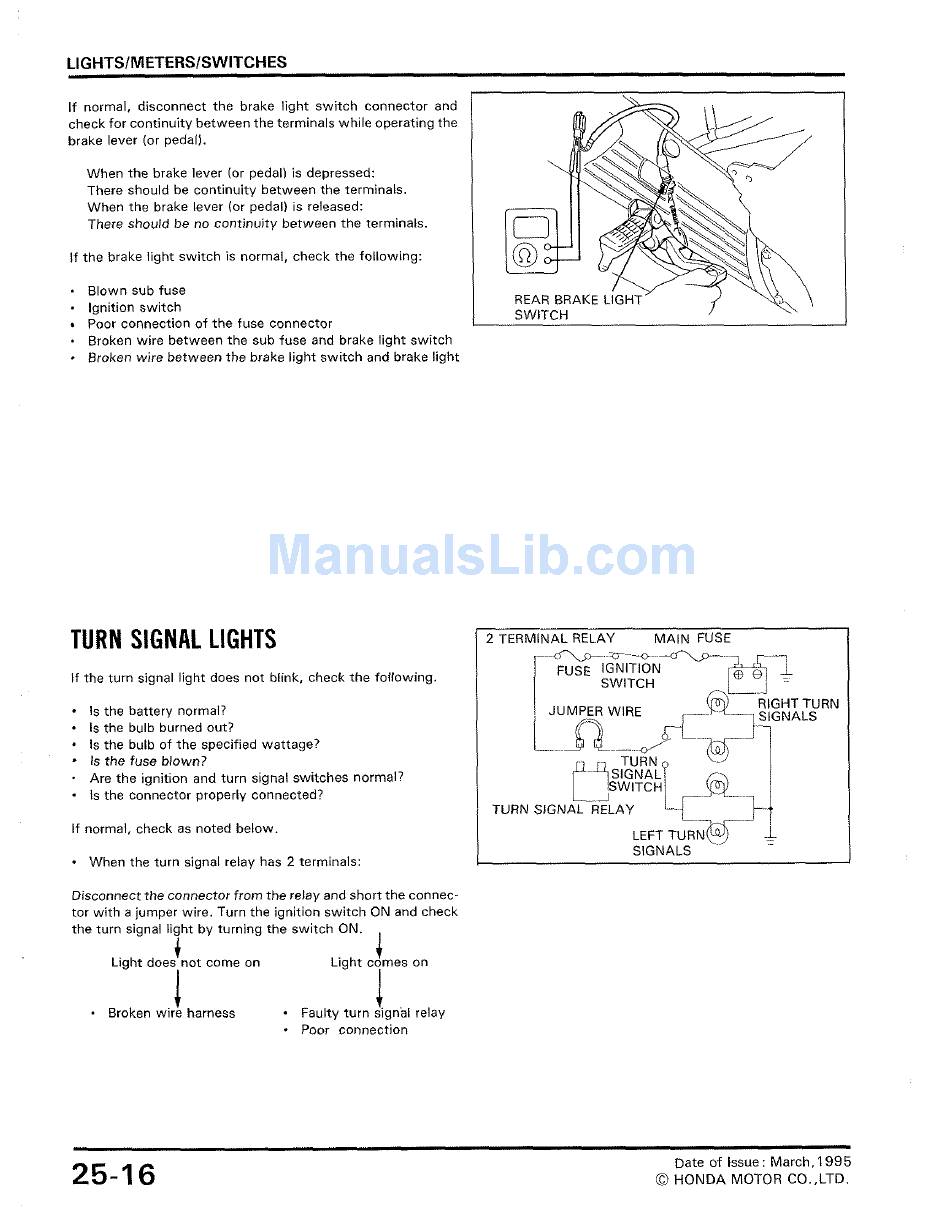

If normal, disconnect the brake iight switch connector and
check for continuity between the terminals while operating the
brake lever (or pedal).
When the brake lever (or pedall is depressed:
There should be continuity between the terminals.
When the brake lever (or pedal) is released:
There should be n o continuity between the terminals.
If the brake iight switch is normal, check the following:
-
Blown sub fuse
Ignition switch
Poor connection of the fuse connector
.
Broken wire between the sub fuse and brake light switch
.
Broken wire between the brake light switch and brake light
TURN SIGNAL LIGHTS
If the turn signal light does not blink, check the following.
.
Is the battery normal?
.
Is the bulb burned out?
Is the bulb of the specified wattage?
Is the fuse blown?
Are the ignition and turn signal switches normal?
IS the connector properly connected?
If normal, check as noted below.
.
When the turn signal relay has
2
terminals:
Disconnect the connector from the reiay and short the connec-
tor with a jumper wire. Turn the ignition switch ON and check
the turn signal light by turning the switch ON.
I
t
Light does not come on
t
Light comes on
I I
t
.
Broken wire harness
t
.
Faulty turn slgnal reiay
.
Poor connection
/
2 TERMINAL RELAY MAIN FUSE
- ~ - i ~ . . . - a - - - o ~ . ~
FUSE IGNITION
L q
SWITCH
@ e l
,
I-.
,
I
JUMPER WIRE
r-.
RIGHT TURN
I
- 1
SIGNALS
I
L . ,
-
SIGNALS
25-1
6
Date of issue : March, 1995
