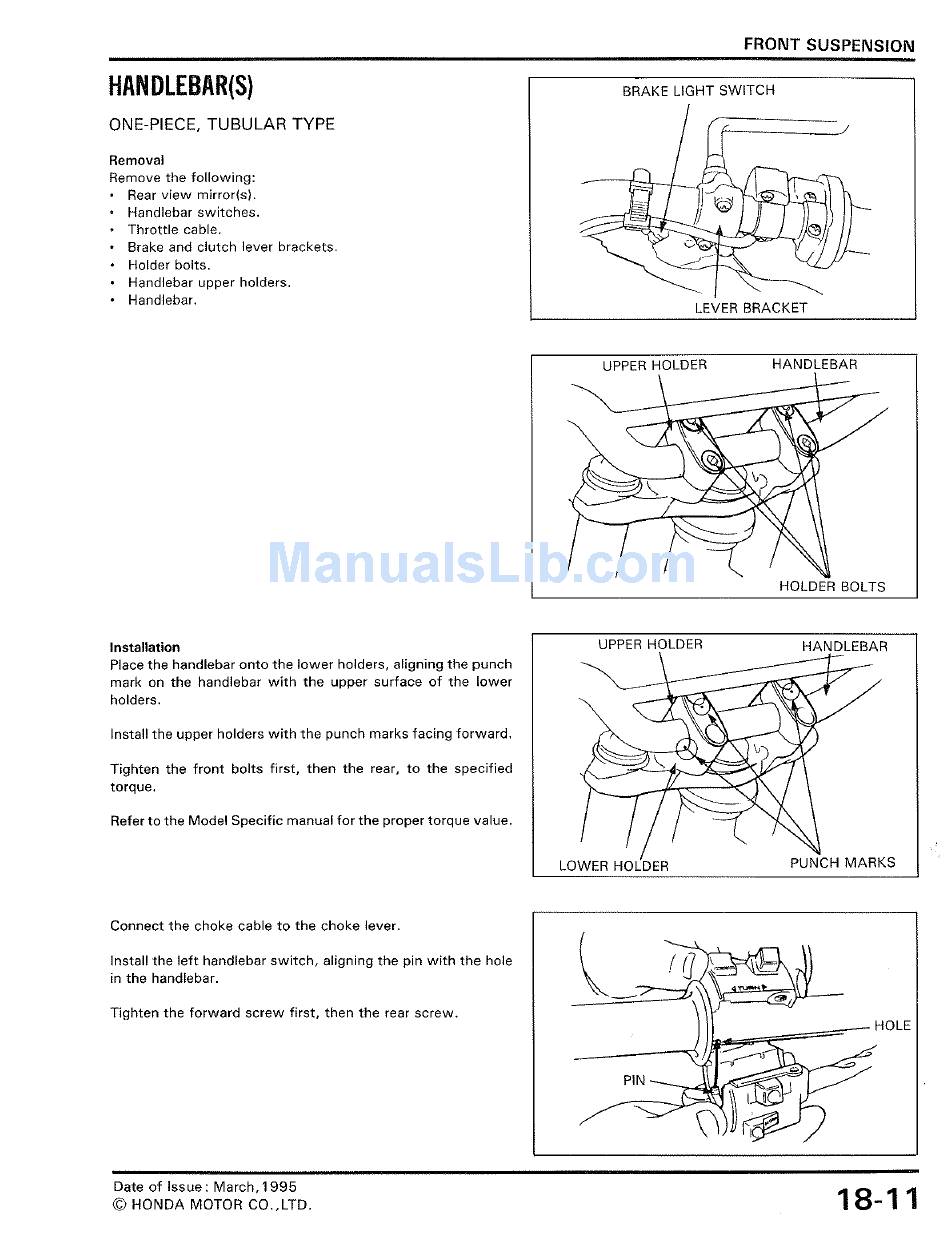

Handlebar(S); One-Piece, Tubular Type; Handlebars Installation - Honda Motorcycle Service Manual

FRONT SUSPENSION
ONE-PIECE, TUBULAR TYPE
Removal
Remove the following:
.
Rear view mirrorlsl.
Handlebar switches.
.
Throttle cable.
-
Brake and clutch lever brackets.
.
Holder bolts.
.
Handlebar upper holders.
Handlebar.
Installation
Place the handlebar onto the lower holders, aligning the punch
mark on the handlebar with the upper surface of the lower
holders.
Install the upper holders with the punch marks facing forward.
Tighten the front bolts first, then the rear, t o the specified
torque.
Refer to the Model Specific manual for the proper torque value.
BRAKE LIGHT SWITCH
UPPER HOLDER HANDLEBAR
I
UPPER HOLDER HANDLEBAR
Connect the choke cable t o the choke lever.
I
Install the left handlebar switch, aligning the pin with the hole
in the handlebar.
Tighten the forward screw first, then the rear screw.
Date of Issue: March,1995
o
HONDA MOTOR CO.,LTD.
18-1 1
