68K System Monitor
User's Guide

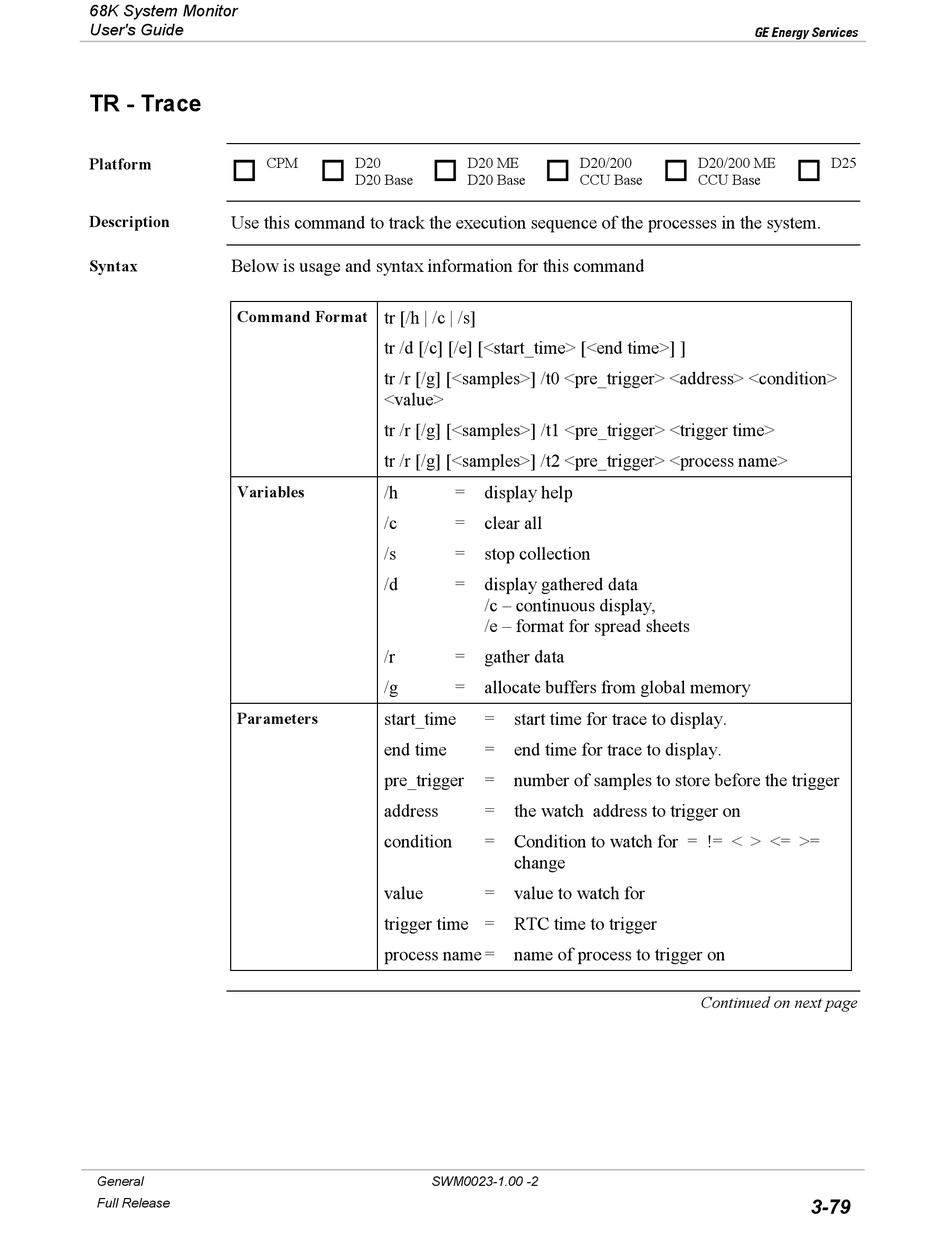

TR - Trace

o
CPM
Platform
Use this command to track the execution sequence of the processes in the system.
Description
Below is usage and syntax information for this command
Syntax
Command Format
Variables
Parameters
General
Full Release
o o
D20 D20 ME
D20 Base D20 Base
tr [/h | /c | /s]
tr /d [/c] [/e] [<start_time> [<end time>] ]
tr /r [/g] [<samples>] /t0 <pre_trigger> <address> <condition>
<value>
tr /r [/g] [<samples>] /t1 <pre_trigger> <trigger time>
tr /r [/g] [<samples>] /t2 <pre_trigger> <process name>
/h = display help
/c = clear all
/s = stop collection
/d = display gathered data
/c – continuous display,
/e – format for spread sheets
/r = gather data
/g = allocate buffers from global memory
start_time =
end time =
pre_trigger =
address =
condition =
value =
trigger time =
process name =
SWM0023-1.00 -2
o o
D20/200
CCU Base
start time for trace to display.
end time for trace to display.
number of samples to store before the trigger
the watch address to trigger on
Condition to watch for = != < > <= >=
change
value to watch for
RTC time to trigger
name of process to trigger on
GE Energy Services
o
D20/200 ME D25
CCU Base
Continued on next page
3-79
