Replace Cables

The standard interface cable is attached to the scanner with an 10-pin modular
connector. When properly seated, the connector is held in the scanner's base by a
flexible retention tab. The interface cable is designed to be field replaceable.
•
•

Replace an Interface Cable

1. Turn off the power to the host system.
2. Disconnect the scanner's cable from the terminal or

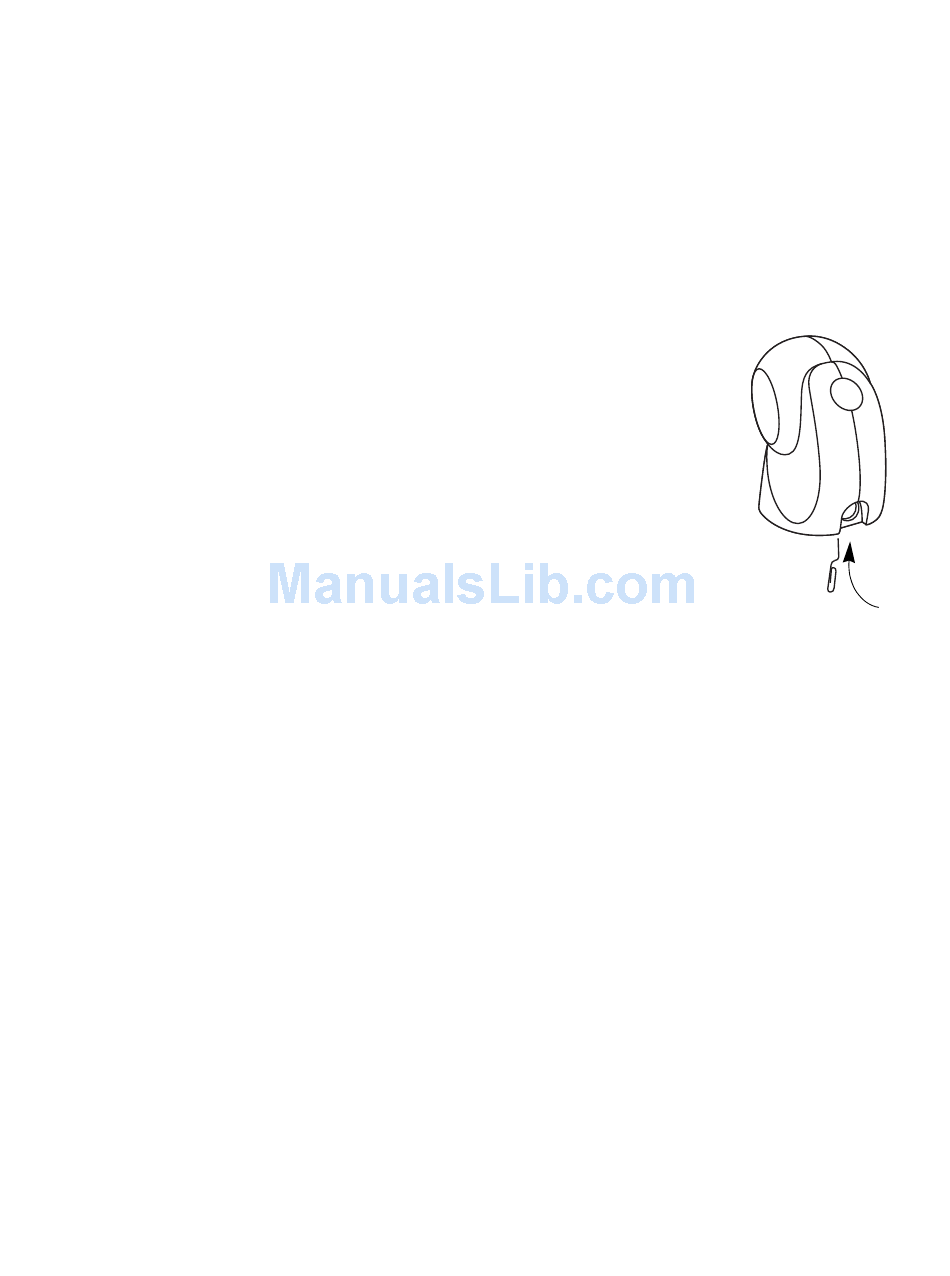

3. Locate the small hole underneath the base. This is the
4. Straighten one end of a paper clip.
5. Insert the end of the paper clip into the small hole and
6. Replace with the new cable.

Troubleshoot the Scanner

The scanner automatically performs self-tests whenever you turn it on. If your
scanner is not functioning properly, review the following Troubleshooting Guide to
try to isolate the problem.
Is the power on?
If the LEDs aren't illuminated, check that:
•
•
Is the scanner having trouble reading your symbols?
If the scanner isn't reading symbols well, check that the symbols:
•
•
•
208
Order replacement cables from Honeywell or from an authorized distributor.
When ordering a replacement cable, specify the cable part number of the
original interface cable.
computer.
cable release.
press in. This depresses the retention tab, releasing the
connector. Pull the connector out while maintaining
pressure on the paper clip, then remove the paper clip.
Insert the connector into the opening and press firmly.
The connector is keyed to go in only one way, and will click into place.
The cable is connected properly.
The host system power is on (if external power isn't used).
Aren't smeared, rough, scratched, or exhibiting voids.
Aren't coated with frost or water droplets on the surface.
Are enabled in the scanner or in the decoder to which the scanner connects.
Orbit 7120plus/7190g User Guide
Cable
Release
