1) Disconnect negative cable at battery.
2) Disconnect coupler from bulb.
3) Remove socket cover (1).
4) Replace bulb (2) and assemble all removed parts.

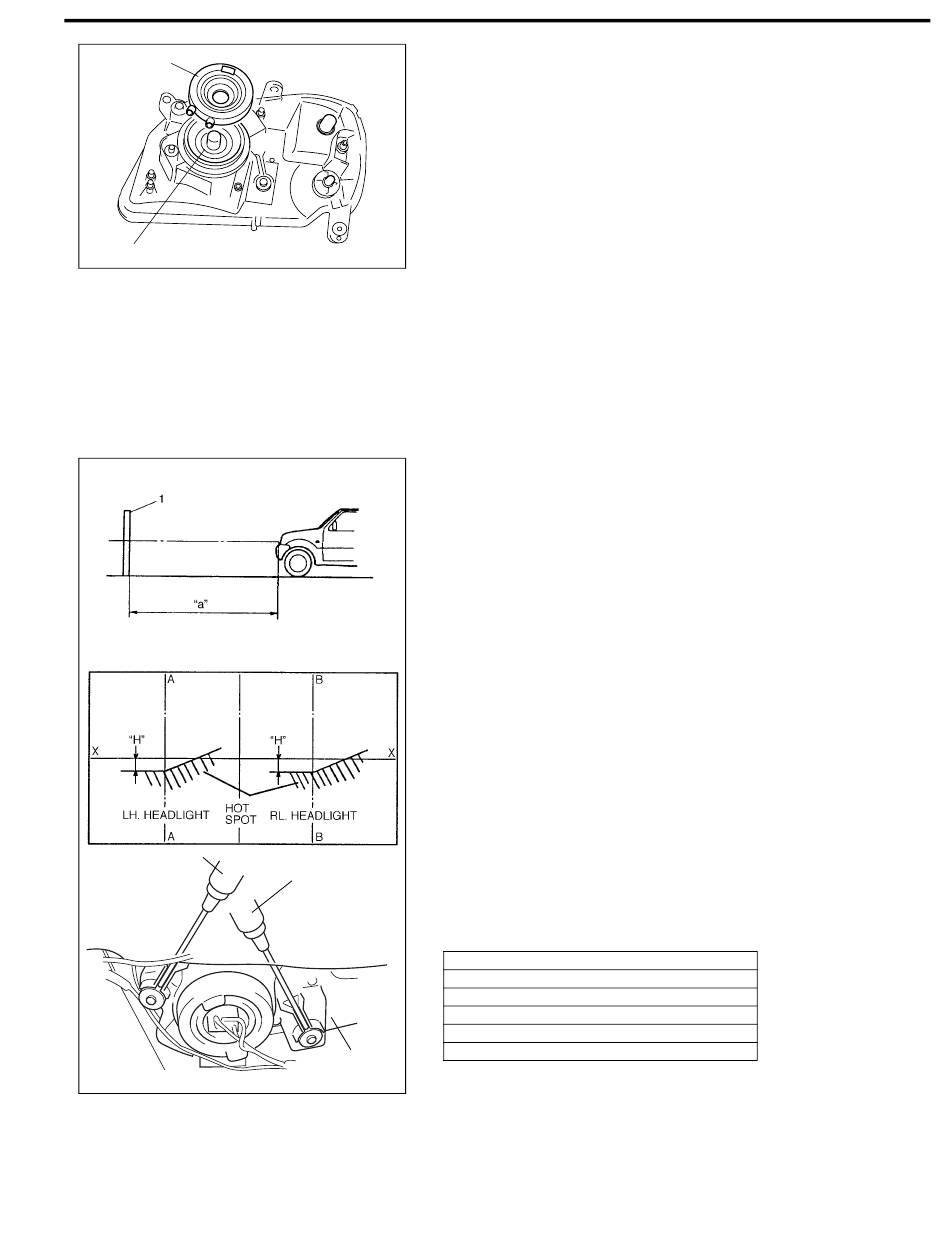

HEADLIGHT AIMING ADJUSTMENT WITH SCREEN

NOTE:
• Unless otherwise obligated by local regulations, adjust
headlight aiming according to following procedure.
• After replacing headlight, be sure to adjust aiming.
1) Make sure the following items.
• Place vehicle on a flat surface in front of blank wall (screen)
(1) ahead of headlight surface.
Distance between screen and headlight
"a" : 10 m (32.8 ft.)
• Adjust air pressure of all tires to a specified value respec-
tively.
• Bounce vehicle body up and down by hand to stabilize sus-
pension.
• Carry out with one driver aboard.
Driver's weight
: 75 kg (165 lb)
2) Check to see if hot spot (high intensity zone) of each main
(low) beam axis falls as shown in figure.
Hot spot specification
"H" : Approx. 130 mm (5.15 in.)
3) Align headlight aiming to specification by adjusting aiming
screw and aiming gear if it is not set properly.
1. Headlight assembly
2. Aiming (for up/down adjustment)
3. Aiming (for right/left and up/down adjustment)
X-X : Horizontal center line of headlights bulb
A-A : Vertical center line of left headlight bulb
B-B : Vertical center line of right headlight bulb
1
BODY ELECTRICAL SYSTEM 8-11
