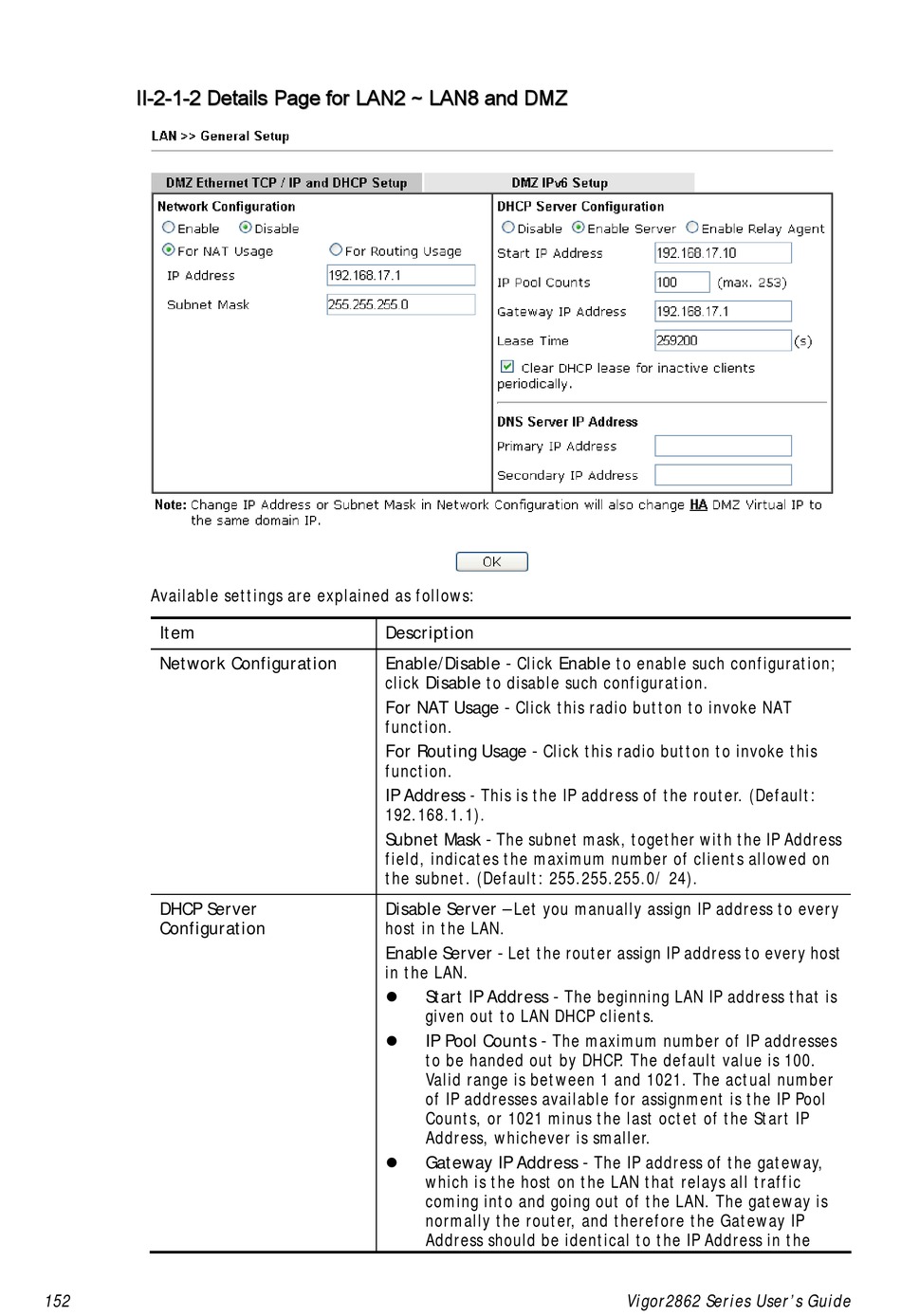

Ii-2-1-2 Details Page For Lan2 ~ Lan8 And Dmz - Draytek Vigor2862 Series User Manual

I I - 2 - 1 - 2 D
I I - 2 - 1 - 2 D
Available settings are explained as follows:
Item
Network Configuration
DHCP Server
Configuration
152
e t a i l s P a g e f o r L A N
e t a i l s P a g e f o r L A N
Description
Enable/Disable - Click Enable to enable such configuration;
click Disable to disable such configuration.
For NAT Usage - Click this radio button to invoke NAT
function.
For Routing Usage - Click this radio button to invoke this
function.
IP Address - This is the IP address of the router. (Default:
192.168.1.1).
Subnet Mask - The subnet mask, together with the IP Address
field, indicates the maximum number of clients allowed on
the subnet. (Default: 255.255.255.0/ 24).
Disable Server – Let you manually assign IP address to every
host in the LAN.
Enable Server - Let the router assign IP address to every host
in the LAN.



2 ~ L A N 8 a n d D M Z
2 ~ L A N 8 a n d D M Z
Start IP Address - The beginning LAN IP address that is
given out to LAN DHCP clients.
IP Pool Counts - The maximum number of IP addresses
to be handed out by DHCP. The default value is 100.
Valid range is between 1 and 1021. The actual number
of IP addresses available for assignment is the IP Pool
Counts, or 1021 minus the last octet of the Start IP
Address, whichever is smaller.
Gateway IP Address - The IP address of the gateway,
which is the host on the LAN that relays all traffic
coming into and going out of the LAN. The gateway is
normally the router, and therefore the Gateway IP
Address should be identical to the IP Address in the
Vigor2862 Series User's Guide
