Oil Pump Replacement Removal Procedure - Suzuki XL7 2007 Service Manual

CAUTION
!
Refer to "Fastener Notice: ".

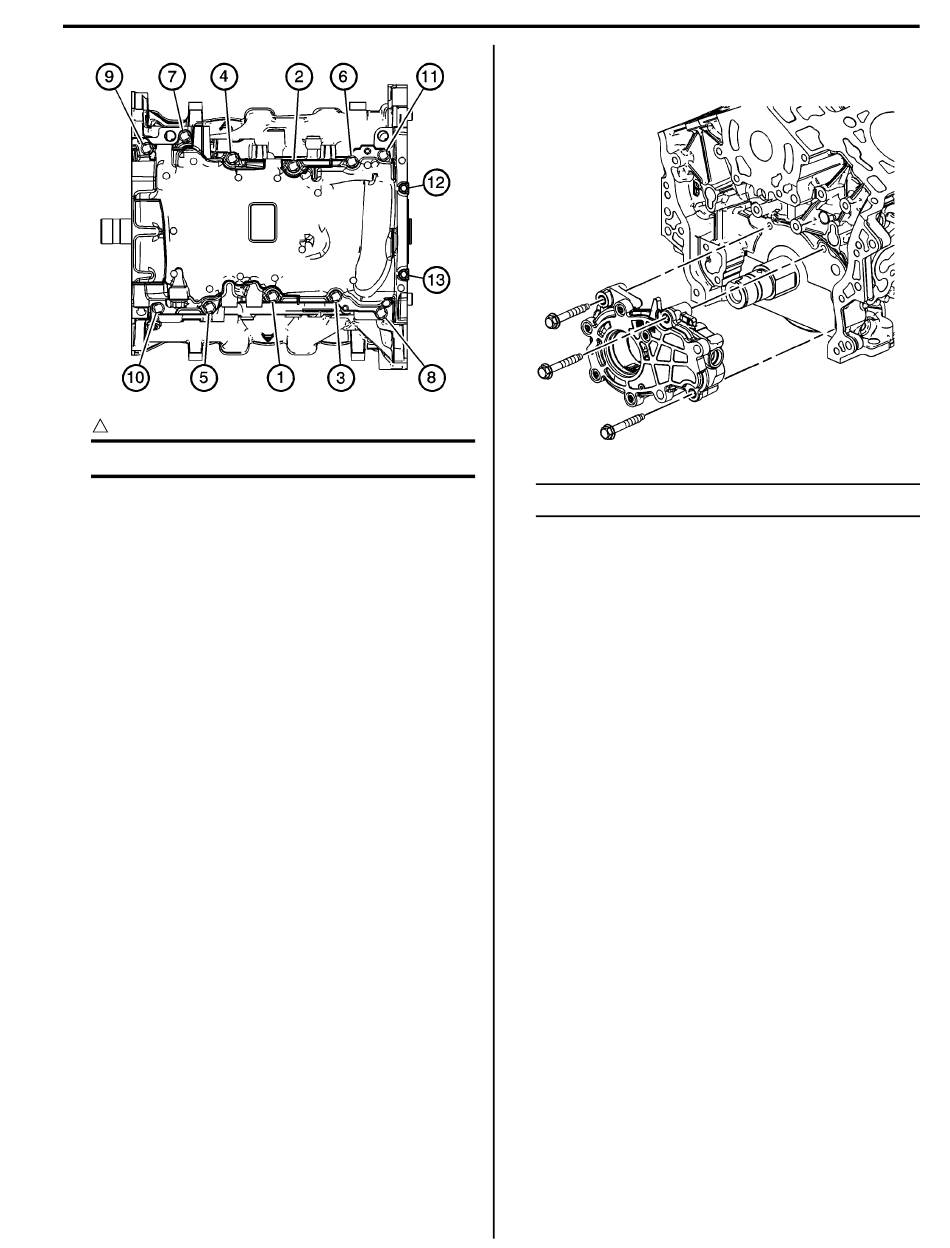

6. Tighten the oil pan bolts in sequence shown.
Tightening torque
1. Tighten the 8 mm bolts (1-11) to 23 N⋅m (17 lb
ft).
2. Tighten the 6 mm bolts (12, 13) to 10 N⋅m (89
lb in).
7. Install the air conditioning (A/C) compressor. Refer to
"Compressor Replacement: ".
8. Install the catalytic converter. Refer to "Catalytic
Converter Replacement - Left Side: ".
9. Lower the vehicle. Refer to "Lifting and Jacking the
Vehicle: ".
10. Refill the engine oil. Refer to "Engine Oil and Oil
Filter Replacement".
11. Install the right side engine mount. Refer to "Engine
Mount Replacement - Right Side: ".
12. Remove the engine support fixture. Refer to "Engine
Support Fixture: ".
13. Connect the battery negative cable. Refer to "Battery
Negative Cable Disconnection and Connection: ".
Engine Lubrication System:
Oil Pump Replacement
Removal Procedure
NOTE
Do not remove the left bank idler sprocket.
1. Remove the primary timing chain. Refer to "Primary
Camshaft Drive Chain and Sprockets Replacement:
".
2. Remove the oil pump bolts and the oil pump. Refer
to "Oil Pump Removal".
3. Perform the following steps as necessary:
– Disassemble the oil pump. Refer to "Oil Pump
Disassemble".
– Clean and inspect the oil pump. Refer to "Oil
Pump Cleaning and Inspection".
1E-10
