How To Add A New Bridge Vlan Profile - Draytek Vigor2960 Series User Manual

Refresh
Profile Number Limit
Profile
WAN/VLAN ID
LAN VLAN/Member
H o w t o a d d a n e w
H o w t o a d d a n e w

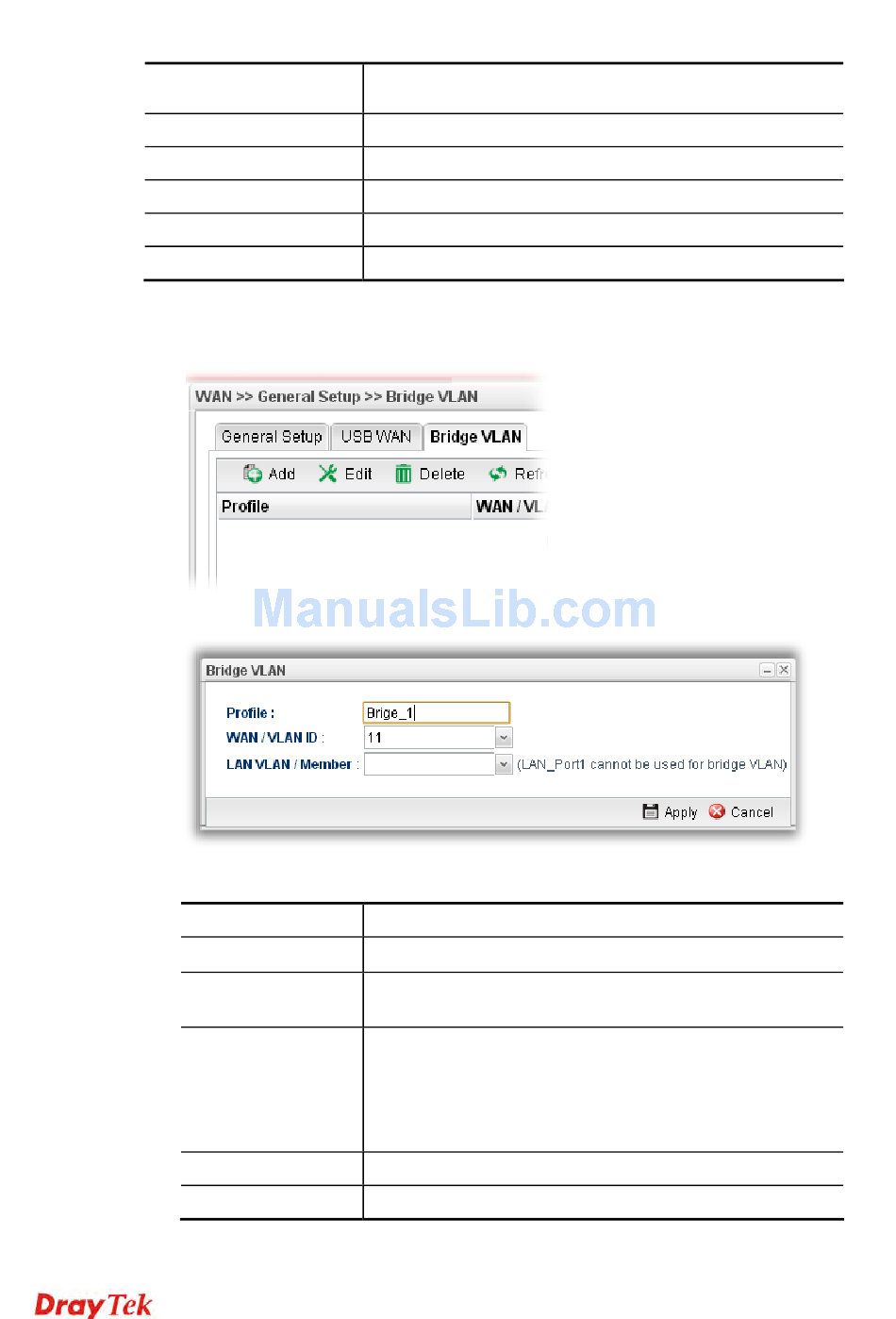

1. Click Add.
2. The settings under Global tab are listed as below:
Available parameters are listed as follows:
Item
Profile
WAN/VLAN ID
LAN
VLAN/Member
Apply
Cancel
To delete a profile, simply select the one you want to delete
and click the Delete button.
Renew current web page.
Display the total number of the profiles to be created.
Display the profile name.
Display the VLAN ID number of the WAN profile selected.
Display VLAN ID number of the LAN port selected.
b r i d g e V L A N p r o f
b r i d g e V L A N p r o f
Description
Type the name of the profile.
Use the drop down list to choose the WAN profile with the
specified VLAN ID.
Choose a VLAN profile from the drop down list.
You have to open LAN>>Switch page and click 802.1Q
VLAN for creating VLAN ID number bound with LAN port
(802.1Q VLAN profile) first. Otherwise, no profiles will be
displayed here for you to specify.
Click it to save and exit the dialog.
Click it to exit the dialog without saving anything.
