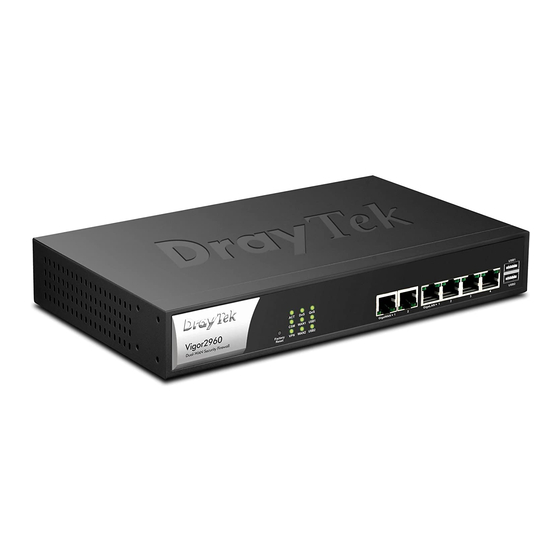

Page 2 Vigor2960 Dual-WAN Security Firewall User’s Guide Version: 1.4 Firmware Version: V1.1.0 (For future update, please visit DrayTek web site for further information) Date: June 22, 2015 Vigor2960 Series User’s Guide...
Page 3 Web registration is preferred. You can register your Vigor router via Owner http://www.draytek.com. Firmware & Tools Due to the continuous evolution of DrayTek technology, all routers will be regularly Updates upgraded. Please consult the DrayTek web site for more information on newest firmware, tools and documents.
Page 4 No. 26, Fu Shing Road, HuKou Township, HsinChu Industrial Park, Hsin-Chu County, Taiwan Product: Vigor2960 DrayTek Corp. declares that Vigor2960 of routers are in compliance with the following essential requirements and other relevant provisions of EC, Directive 2004/108/EC. The product conforms to the requirements of Electro-Magnetic Compatibility (EMC) Directive 2004/108/EC by complying with the requirements set forth in EN55022/Class A and EN55024/Class A.
Page 5: Table Of Contents
4.2.2 PPPoE Server........................103 4.2.3 Switch ..........................108 4.2.4 Bind IP to MAC ........................114 4.2.5 LAN DNS ..........................118 4.3 Routing ............................. 121 4.3.1 Load Balance Pool.......................121 4.3.2 Static Route .........................125 4.3.3 Policy Route.........................131 4.3.4 Default Route........................148 4.3.5 RIP Configuration ........................149 Vigor2960 Series User’s Guide...
Page 6 4.9.1 VPN Client Wizard .......................300 4.9.2 VPN Server Wizard......................307 4.9.3 Remote Access Control .......................313 4.9.4 PPP General Setup ......................314 4.9.5 IPsec General Setup......................319 4.9.6 VPN Profiles ........................320 4.9.7 VPN Trunk Management .....................333 4.9.8 Connection Management ....................338 Vigor2960 Series User’s Guide...
Page 7 4.16.8 Web Console ........................427 4.16.9 Ping/Trace Route.......................427 4.16.10 Data Flow Monitor......................428 4.16.11 User Status ........................429 4.17 External Devices ........................429 4.18 Product Registration....................... 430 Chapter 5: Trouble Shooting..................431 5.1 Checking If the Hardware Status Is OK or Not................. 431 Vigor2960 Series User’s Guide...
Page 8 5.3 Pinging the Router from Your Computer .................. 435 5.4 Checking If the ISP Settings are OK or Not ................436 5.5 Backing to Factory Default Setting If Necessary..............437 5.6 Contacting DrayTek ........................438 Vigor2960 Series User’s Guide viii...
Page 9: Chapter 1: Introduction
The Vigor2960 Series integrates a rich suite of functions, including NAT, firewall, VPN, load balance, and bandwidth management capability. These products are very suitable for providing multi-integrated solutions to SME markets. A Virtual Private Network (VPN) is an extension of a private network that encompasses links across shared or public networks like an Intranet.
Page 10: Led Indicators And Connectors
The port is connected with 10/100Mbps. Left LED The port is connected. GigaLAN (Green) The port is disconnected. 1/2/3/4 Blinking The data is transmitting. Right LED The port is connected with 1000Mbps. (Green) The port is connected with 10/100Mbps. Vigor2960 Series User’s Guide...
Page 11 Vigor2960 Series User’s Guide...
Page 12 Then the router will restart with the factory default configuration. GigaWAN 1/2 Connecters for remote networked devices. GigaLAN 1/2/3/4 Connecters for local networked devices. USB1/2 Connecter for Mobile HDD, 3G Modem or printer. Connecter for a power cord. ON/OFF - Power switch. Vigor2960 Series User’s Guide...
Page 13: Hardware Installation
Power on the device by pressing down the power switch on the rear panel. The PWR LED should be ON. The system starts to initiate. After completing the system test, the ACT LED will light up and start blinking. Below shows an outline of the hardware installation for your reference. Vigor2960 Series User’s Guide...
Page 14: Wall-Mounted Installation
The Vigor2960 Series can be mounted on the wall by using standard brackets shown below. Choose a flat surface (on the wall) which is suitable for placing the router. Make the screw holes on the short side of the bracket aim at the screw holes on the router. Next, fasten both the bracket and the router with two screws;...
Page 15: Chapter 2: Initial Configuration
Open a web browser on your PC and type http://192.168.1.1. A pop-up window will open to ask for username and password. Please type default values on the window for the first time accessing. The default value for user name is admin and the password is admin. Next, click Login. Vigor2960 Series User’s Guide...
Page 16 New Password and retype it on the field of Confirm Password. Then click Apply to continue. Now, the password has been changed. Next time, use the new password to access the Web User Interface for this router. Vigor2960 Series User’s Guide...
Page 17: Quick Start Wizard
Available parameters are listed as follows: Item Description Use the drop down list to choose one of the WAN profiles Profile for modifying. IPv4 Protocol Use the drop down list to choose the type for the IPv4 protocol for such profile. Vigor2960 Series User’s Guide...
Page 18: Step 2 - Configuring The Selected Protocol
Type a public gateway address for such WAN profile. Add – Click this button to display the IP address field for DNS Server IP adding a new IP address. Type the IP address on the tiny boxes Address one by one. Vigor2960 Series User’s Guide...
Page 19 Previous Click it to return to previous setting page. Finish Click it to finish the configuration. Cancel Click it to discard the settings configured in this page. When you finished the above settings, please click Finish. Vigor2960 Series User’s Guide...
Page 20 If your ISP provides you the PPPoE (Point-to-Point Protocol over Ethernet) connection, please select PPPoE for this router to get the following page. Enter the username and password provided by your ISP on the web page. Vigor2960 Series User’s Guide...
Page 21 Previous Click it to return to previous setting page. Finish Click it to finish the configuration. Cancel Click it to discard the settings configured in this page. When you finished the above settings, please click Finish. Vigor2960 Series User’s Guide...
Page 22 In this case, you can fill in this IP address in the Fixed IP field. Please contact your ISP before you want to use this function. Static – specify the IP address. DHCP - obtain the IP address automatically. Vigor2960 Series User’s Guide...
Page 23 Finish Click it to finish the configuration. Cancel Click it to discard the settings configured in this page. When you finished the above settings, please click Finish. Later, you can surf the Internet at any time. Vigor2960 Series User’s Guide...
Page 24 When the following screen appears, it means you have finished the Quick Start Wizard configuration. Vigor2960 Series User’s Guide...
Page 25: Register Vigor Router
A Login page will be shown on the screen. Please type the account and password that you created previously. And click Login. Notice: If you haven’t an accessing account, please create a new one first. Please read the articles on the Agreement regarding user rights carefully while creating a user account. Vigor2960 Series User’s Guide...
Page 26 When the following page appears, please type in Nick Name (for the router) and choose the right registration date from the popup calendar (it appears when you click on the box of Registration Date). After adding the basic information for the router, please click Submit. Vigor2960 Series User’s Guide...
Page 27 Now, your router information has been added to the database. Click OK to leave this web page and return to My Information web page. Take a look at the page of My Information, the new added Vigor2960 is listed under Your Device List. Vigor2960 Series User’s Guide...
Page 28 This page is left blank. Vigor2960 Series User’s Guide...
Page 29: Chapter 3: Application And Tutorial
RDP Server via any browser. Open the Web User Interfaceof Vigor2960. Enable the HTTPS service from System Maintenance >> Access Control by clicking Enable for HTTPS Allow and type 443 as the value of HTTPS Port. Vigor2960 Series User’s Guide...
Page 30 Open User Management >> User Profile to create a new profile named “7788”. Set the Password as 7788 and choose the profile of Win7 as SSL Application (RDP). Click Apply. Logout Vigor2960. Login Vigor2960 HTTPS Server with 7788 for both Username and Password. Vigor2960 Series User’s Guide...
Page 31 A screen like the following figure will appear. Simply click the SSL Application link. In the following screen, click Connect for connecting to Win7, the RDP server. Vigor2960 Series User’s Guide...
Page 32 After that, you can access into Windows 7 via a browser. Note the message below the window. In which, TLS means Transport Layer Security. Vigor2960 Series User’s Guide...
Page 33: Troubleshooting
If you have installed Java Runtime Environment edition 6 but still cannot establish the connection, please make sure you have disabled “Use TLS 1.0” in the Java Control Panel as figure shown below. Then, try to connect again. Vigor2960 Series User’s Guide...
Page 34: How To Configure Ospf
Each router has its own view of the topology and calculates its own SPF tree, even though all the routers build a shortest-path tree using the same link-state database. Vigor2960 Series User’s Guide...
Page 35 2. Next, continue to create a LAN (192.168.3.1/24) profile named lan2 with the settings shown below. 3. Open LAN >> Static Route Setup and click the Inter-LAN Route tab to enable this profile. Vigor2960 Series User’s Guide...
Page 36 Profiles lan2 area setting as 11 and lan1 area as 11. (As shown in the topology diagram.) 1. Open LAN >> General Setup to create a LAN (192.168.2.1/24) profile named lan1 with the settings shown below. 2. Next, continue to create a LAN (192.168.3.2/24) profile named lan2 with the settings shown below. Vigor2960 Series User’s Guide...
Page 37 Profiles lan2 area setting as 11 and lan1 area as 11. (As shown in the topology diagram.) 1. Open LAN >> General Setup to create a LAN (192.168.4.1/24) profile named lan1 with the settings shown below. Vigor2960 Series User’s Guide...
Page 38 2. Next, continue to create a LAN (192.168.3.3/24) profile named lan2 with the settings shown below. 3. Open LAN >> General Setup and click the Inter-LAN Route tab to enable this profile. Vigor2960 Series User’s Guide...
Page 39 4. Open Routing >> OSPF Configuration to enable this profile. Click Add to make the LAN Profiles lan2 area setting as 11 and lan1 area as 11. (As shown in the topology diagram.) 5. After setting, check the routing information (marked with red line) which is created by OSPF. Vigor2960 Series User’s Guide...
Page 40 Vigor2960 Series User’s Guide...
Page 41: How To Configure Lan To Lan Ipsec Tunnel Between Vigor2960 And Other Router
Type the Pre-shared key and choose a WAN Profile. Specify Local IP/Subnet Mask with 192.168.29.0/24. The Remote Host should be Vigor 2710's WAN IP address; And the Remote IP/Subnet Mask should be192.168.2.0/24. Click Apply to save the settings and return to previous page. Vigor2960 Series User’s Guide...
Page 42 Choose Dial-Out as Call Direction and check the box of Always on. For Dial-Out Settings, please choose IPsec Tunnel and type WAN IP address of Vigor2960 in the field of Server IP/Host Name for VPN (e.g., 1.169.162.1). Type the same IKE Pre-Shared Key configured in Vigor2960. Vigor2960 Series User’s Guide...
Page 43 Please check if the VPN connection is built successfully in both devices respectively. For Vigor2960, open VPN and Remote Access>>IPsec>>Status for viewing the result. As to Vigor2710, please open VPN and Remote Access>>Connection Management to confirm the result. Vigor2960 Series User’s Guide...
Page 44: Cvm Application - How To Manage The Cpe (Router) Through Vigor2960
Web Port. Then click Apply to save the settings. Open Central VPN Management>>CPE Management. On the page of CPE Maintenance, there is no CPE managed by Vigor2960. Open Central VPN Management>>General Setup. Vigor2960 Series User’s Guide...
Page 45 “http://{IP address of Vigor296}:{CVM port}/ACSServer/services/ACSServlet” and type the same Username and Password defined on the page of Central VPN Management>>General Setup in Vigor2960. Then, click Enable for CPE Client and then click OK to save the settings. Vigor2960 Series User’s Guide...
Page 46 Login the web user interface of the CPE. Open System Maintenance>>Management Setup. Check Allow management from the Internet to set management access control. Vigor2960 Series User’s Guide...
Page 47 IP address for your CPE. Then click OK. Note: Reboot the CPE device and re-log into Vigor2960. CPE which has registered to Vigor2960 will be captured and displayed on the page of Central VPN Management>>CPE Management. Vigor2960 Series User’s Guide...
Page 48 Return to the web user interface of Vigor2960. Open Central VPN Management>>CPE Management. Now there is one CPE managed (Vigor2830) by Vigor2960 on the page of CPE Maintenance. Vigor2960 Series User’s Guide...
Page 49: Cvm Application - How To Build The Vpn Between Remote Devices And Vigor2960
When a remote device is managed by Vigor2960 series, it is easy to build VPN between these two devices. Access into the web user interface of Vigor2960 series. Open Central VPN Management>>CPE Management. The icons displayed on the screen means the remote devices are ready for building VPN with Vigor2960.
Page 50 Or click Advanced to open the following page for specified the CPE you want. Click Connect after finished the settings. A confirmation dialog will appear. Click OK and wait for a moment. If VPN is built successfully, related information will be displayed on Connected Devices. Vigor2960 Series User’s Guide...
Page 51 VPN and Remote Access>>LAN to LAN of the remote device for viewing the detailed information. Note: The profile name is created automatically by the system. Do not modify any value in such page to avoid VPN error. Vigor2960 Series User’s Guide...
Page 52: Cvm Application - How To Upgrade Cpe Firmware Through Vigor2960
Open System Maintenance>>Access Control. Check Enable for Web Allow and type the value for Web Port. Then click Apply to save the settings. Open Central VPN Management>>CPE Management. Click CPE Maintenance. In the Maintenance area, click File Explorer. In the File Explorer dialog, click Upload. Vigor2960 Series User’s Guide...
Page 53 In the Upload dialog, click the Browse.. button to find out the firmware (e.g., 2830_0508 in this case) you want to upload from PC to Vigor2960. Then, click Upload. Vigor2960 Series User’s Guide...
Page 54 When the file is uploaded successfully, later you will find the one in the File Explorer dialog. Vigor2960 Series User’s Guide...
Page 55 Firmware Upgrade as the Action, choose Now as the Schedule (it means the firmware upgrade will be performed after clicking Apply); and type the string of the firmware filename or click to choose a correct one. Vigor2960 Series User’s Guide...
Page 56 – now). Note that a red icon, will appear during the period of firmware upgrading. And, in the web user interface of client’s CPE, the system will show you that firmware upgrade is on going. Vigor2960 Series User’s Guide...
Page 57 If [Finished] is displayed, it means the firmware upgrade of specified CPE has completed. Open Central VPN Management>>CPE Management. In the Managed Devices Status area, choose the router (representing Vigor2830) and click Detail. Check the software version field. Vigor2960 Series User’s Guide...
Page 58: How To Use High Availability For Vigor Routers
Note: Make sure the WAN interfaces for both Router A and Router B are well connected. Both routers can be used to access into Internet. Note: For advanced applications, please refer to FAQ/Application Notes on www.draytek.com. Vigor2960 Series User’s Guide...
Page 59 2. Open Applications >>High Availability. 3. In the tab of High Availability Global Setup, choose Hot-Standby as Redundant Method; choose Primary as Config Synchronization Rule; type draytek as Authentication Key; choose Immediate as Advance Preemption Mode. Click Apply to save the settings.
Page 60 3. In the tab of High Availability Global Setup, choose Hot-Standby as Redundant Method; choose Secondary as Config Synchronization Rule; type the lan1 IP address configured in router A; type draytek as Authentication Key; choose Automatic as Advance Preemption Mode. Click Apply to save the settings.
Page 61 Type the lan1 IP address configured in Router A 4. Click the High Availability Profile Setup tab to create HA profile(s). Click Add. 5. Create an HA profile. Refer to the following figures. Vigor2960 Series User’s Guide...
Page 62 Under such construction, when Router A (defined as Master device) is powered off, Router B (defined as Slave device) will be up and take over all the jobs that Router A performs. Later, when Router A is powered on again, all the jobs will return to Router Vigor2960 Series User’s Guide...
Page 63: How To Configure Dns Inbound Load Balance On Vigor 2960
WAN interface according to the DNS query time. Follow the steps listed below to Configure DNS Inbound Load Balance. Open NAT >> Port Redirection to set up Port Redirection rules for the Web server. Click Apply to save the settings. Vigor2960 Series User’s Guide...
Page 64 It means the total DNS query time will be three, one will pass through WAN1; two will pass through WAN2. Click the Detail tab and locate Additional A Record. Type “www” as the name of the Host, and type “192.168.1.10” as the IP Address. Vigor2960 Series User’s Guide...
Page 65 > www.yourdomain.com Server: [google-public-dns-a.google.com] Address: 8.8.8.8 Name: www.yourdomain.com Address: 2.2.2.2 Third DNS query > www.yourdomain.com Server: [google-public-dns-a.google.com] Address: 8.8.8.8 Name: www.yourdomain.com Address: 2.2.2.2 Note: It is recommended to clear cache before executing “nslookup” for DNS query. Vigor2960 Series User’s Guide...
Page 66 This page is left blank. Vigor2960 Series User’s Guide...
Page 67: Chapter 4: Advanced Configuration
When a router begins to connect to your ISP, a serial of discovery process will occur to ask for a connection. Then a session will be created. Your user ID and password is authenticated Vigor2960 Series User’s Guide...
Page 68: General Setup
ISP connections, all the traffic will be guided and switched to the normal communication port for proper operation. Note: Some menu items (e.g., Bridge VLAN) are available only under Advance Mode. Web Page in Basic Mode Web Page in Advance Mode Vigor2960 Series User’s Guide...
Page 69 If the data transmitted with tag, Enable will be displayed in this field. Otherwise, Disable will be shown instead. VLAN ID Display the VLAN ID of the profile. Priority Display the level of the priority for such profile. Vigor2960 Series User’s Guide...
Page 70 Open WAN>>General Setup. Click the Add button to open the following dialog. Different protocol type selected will bring up different configuration web page. Available parameters for global configuration are listed as follows: Item Description Profile (max Type a name (less than 7 characters) for such profile. Vigor2960 Series User’s Guide...
Page 71 VLAN Tag Enable – Click it to enable the function of VLAN Tag. Data transmitted through the router will be tagged with specified number for identification. Disable – Click it to disable the function of VLAN Tag. Vigor2960 Series User’s Guide...
Page 72 Global configuration allows you to enable the profile, give a brief explanation for such profile, specify the VLAN ID, specify MAC address, choose IPv4 and IPv6 protocol, and specify the mode of the data transmission (NAT or Routing). Vigor2960 Series User’s Guide...
Page 73 Save to save the setting onto the router. Type other IP addresses to be bound to this interface. This IP Alias setting is optional. If you have typed addresses here, you can see and choose it in later web page settings (e.g., Vigor2960 Series User’s Guide...
Page 74 Assign an interval period of time for each detecting. Detection Interval Connection Assign detecting times to ensure the connection of the WAN Detection Retry interface. After passing the times you set in this field and no Vigor2960 Series User’s Guide...
Page 75 Next, click Save. The new one will be added and displayed on the field under the box. Save – Click this button to save the setting. MTU/MRU It means Max Transmit Unit for packet. The default setting is 1500. Vigor2960 Series User’s Guide...
Page 76 Click it to save the configuration and exit the dialog. Cancel Click it to exit the dialog without saving the configuration.  If you choose PPPoE as IPv4 protocol type, click the PPPoE Tab to open the following page: Vigor2960 Series User’s Guide...
Page 77 PING and HTTP supported in Vigor router for you to choose to send the request out. Connection If you choose PING/HTTP as Connection Detection Mode, Detection Host you have to specify the detection host address in this field. Use the default setting. Vigor2960 Series User’s Guide...
Page 78 It is used for local service (e.g., NTP, ping diagnostic) or used for forwarding packets to PC on LAN/VPN. Disable – Click it to disable the function of DNS specified. Add – click this button to have a field for adding a new IP Vigor2960 Series User’s Guide...
Page 79 Enable – Click it to enable the function of Always On. The router will keep network connection all the time. Disable – Click it to disable the function of Always On. Connection Select a detecting mode for this WAN interface. There are Vigor2960 Series User’s Guide...
Page 80 MAC Address.  If you choose PPP as IPv6 protocol type Simply refer to the section of “If you choose PPPoE as IPv4 protocol type, click the PPPoE Tab to open the following page” for detailed information. Vigor2960 Series User’s Guide...
Page 81 Add – Click this button to have a field for adding a new IP address. Save – Click this button to save the setting. Apply Click it to save the configuration and exit the dialog. Cancel Click it to exit the dialog without saving the configuration. Vigor2960 Series User’s Guide...
Page 82 Click it to exit the dialog without saving the configuration.  If you choose DHCP IA PD as IPv6 protocol type It is not necessary for you to configure any web page. After finished the settings configuration, click Apply to save and apply the settings. Vigor2960 Series User’s Guide...
Page 83 Display the status of the profile. False means disabled; True Enable means enabled. Description Display a brief explanation for such profile. Port Display the physical WAN interface for such profile. Protocol Display the protocol selected by the profile. Vigor2960 Series User’s Guide...
Page 84 Click it to save and exit the dialog. Cancel Click it to exit the dialog without saving anything. After finished the settings above, click the 3G/4G PPP or 4G DHCP tab (based on the Protocol specified) to display the following page: Vigor2960 Series User’s Guide...
Page 85 Please use the default value. If you have any question, please contact to your ISP. Modem Initial String 2-The initial string 1 is shared with APN. In some cases, user may need another initial AT Vigor2960 Series User’s Guide...
Page 86 ISPs. Default Click it to restore the default settings. Apply Click it to save and exit the dialog. Cancel Click it to exit the dialog without saving anything. Enter all of the settings and click Apply. Vigor2960 Series User’s Guide...
Page 87 Profile Number Limit Display the total number of the profiles to be created. Profile Display the profile name. WAN Profile Display the WAN profile selected. LAN VLAN/Member Display VLAN ID number of the LAN port selected. Vigor2960 Series User’s Guide...
Page 88 Apply Click it to save and exit the dialog. Cancel Click it to exit the dialog without saving anything. Enter all of the settings and click Apply. The new profile will be shown as below. Vigor2960 Series User’s Guide...
Page 89: Inbound Load Balance
To edit a profile, simply select the one you want to modify and click the Edit button. The edit window will appear for you to modify the corresponding settings for the selected rule. Delete Remove the selected WAN profile. Vigor2960 Series User’s Guide...
Page 90 Simply click the Add button to open the following dialog. Available parameters are listed as follows: Item Description Status Check this box to enable such profile. Domain Name Type an available domain name to serve the inbound load balance. Vigor2960 Series User’s Guide...
Page 91 Alias – Use the drop down list to choose an alias IP setting (for Alias From WAN Interface) or type an IP address manually (for Alias From Manual Input). Weight –Use the drop down list to choose the one you want. Vigor2960 Series User’s Guide...
Page 92 IP Address – This is optional. If required, simply type the IP address of the NS record server. MX Record This is used to specify the mail server with IP address. Add –Click it to add a new server with specified name and IP Vigor2960 Series User’s Guide...
Page 93 A sub-domain setting page will appear for you to add new profile. Note that the configuration is similar to the way stated on the above steps. Vigor2960 Series User’s Guide...
Page 94: Switch
This page allows you to configure Mirroring Port, Mirrored Port, enable/disable WAN interface, and configure 802.1Q VLAN ID for different WAN interfaces, and so on. Vigor2960 Series User’s Guide...
Page 95 Display number of the WAN interface for the packets Member tagged with such VLAN ID number to pass through. Display number of the WAN interface for the VLAN ID Untag will be untagged for packets passing through the WAN interface selected. Vigor2960 Series User’s Guide...
Page 96 Mirrored Port Select a port to make the packets passing through it monitored by the administrator. Apply Click it to save the configuration. Cancel Click it to discard the settings configured in this page. Vigor2960 Series User’s Guide...
Page 97 (Auto, 10M, 100M, 1000M, 1000M-Disable-Auto-Negotiation or 100M-Disable-Auto-Negotiation) for such interface. 802.3az – It is a function of energy-efficient Ethernet. It can detect the network traffic automatically to adjust the power output and let Vigor2960 save the energy during the Vigor2960 Series User’s Guide...
Page 98: Lan
IP address to public IP address to forward the right packets to the right host and vice versa. Besides, Vigor router has a built-in DHCP server that assigns private IP address to each local host. Vigor2960 Series User’s Guide...
Page 99: General Setup
Profile Number Limit Display the total number of the profiles to be created. Profile (max length:7) Display the name of the LAN profile. Enable Display the status of the profile. False means disabled; True means enabled. Vigor2960 Series User’s Guide...
Page 100 Type the description for the new LAN profile. Type a number as the VLAN ID to make the data be VLAN ID identified while performing data transmission. Priority(802.1p) Type the packet priority number for such profile. The range is from 0 to 7. Vigor2960 Series User’s Guide...
Page 101 Type an IP address as the ending point for DHCO server. DHCP DNS Set the private IP address for DNS server. If this field is blank, users on LAN will treat Vigor2960 as the DNS server. Vigor2960 Series User’s Guide...
Page 102 Vigor2960 WUI. Gateway IP Type a public gateway address for such WAN profile. Address More Subnet Different subnets can be created under one LAN profile. Specify other subnets which might be needed in the future. Vigor2960 Series User’s Guide...
Page 103 Click it to save and exit the dialog. Apply Cancel Click it to exit the dialog without saving anything. When you finish the above settings, please click Apply to save the configuration and exit the dialog. Vigor2960 Series User’s Guide...
Page 104 DHCP Server Location Display the LAN or WAN profile for the DHCP server. DHCP Server IP Display the IP address of DHCP server. DHCP Relay Agent IP Display the IP address of DHCP relay agent server. Vigor2960 Series User’s Guide...
Page 105 Click it to save and exit the dialog. Cancel Click it to exit the dialog without saving anything. When you finish the above settings, please click Apply to save the configuration and exit the dialog. The LAN profile has been edited. Vigor2960 Series User’s Guide...
Page 106 To make the users in different LAN communicating with each other, please check the box to enable Inter-LAN route function. Vigor2960 Series User’s Guide...
Page 107 10 ~ 150. It is used to control the lifetime of the prefix. A lifetime of 0 indicates that the router is not a default router and should not appear on the default router list. Vigor2960 Series User’s Guide...
Page 108 Click it to save and exit the dialog. Cancel Click it to exit the dialog without saving anything. When you finish the above settings, please click Apply to save the configuration and exit the dialog. The LAN profile has been edited. Vigor2960 Series User’s Guide...
Page 109 Display the private IP address for DNS server. Open LAN>>General Setup and click the DHCPv6 tab. Choose one of the LAN profiles by clicking on it and click the Edit button to open the following dialog. Vigor2960 Series User’s Guide...
Page 110 2000:0000:0000:0000:0000:0000:0000:10 or 2000::10. It is available when Manual Setting is selected as Mode. Set the private IP address for DNS server. If this field is blank, users on LAN will treat Vigor2960 as the DNS server. Vigor2960 Series User’s Guide...
Page 111: Pppoe Server
There are several advantages of using PPPoE connections on the LAN. Firstly, the PPPoE server can secure the LAN PC connections with username/password authentication. Secondly, it can prevent ARP attack by nature. Thirdly, the system administrator can configure quota (time/traffic based) for each user as ISP does. Vigor2960 Series User’s Guide...
Page 112 Display the IP address of the client’s host. IP Address Up Time Display the time that the PPPoE connection built. RX Bytes Display the total amount of received packets. TX Bytes Display the total amount of transmitted packets. Vigor2960 Series User’s Guide...
Page 113 Type an IP address as primary DNS. Secondary DNS Type another IP address as secondary DNS. PPPoE Server Choose the authentication type for PPPoE server. Authentication Type Any PPPoE user shall pass the authentication of PPPoE Vigor2960 Series User’s Guide...
Page 114 DHCP Relay can help to forward the DHCP request to the DHCP server. Apply Click it to save and exit the dialog. Cancel Click it to discard current page modification. Vigor2960 Series User’s Guide...
Page 115 Display the connection time. If the action is “Down”, such field will display the total connection time. If the action is “up”, such field will display the time point that the user account access into the PPPoE server. Vigor2960 Series User’s Guide...
Page 116: Switch
Modify the selected VLAN ID setting. Edit To edit VALN ID setting, simply select the one you want to modify and click the Edit button. The edit window will appear for you to modify the corresponding settings for the selected rule. Vigor2960 Series User’s Guide...
Page 117 VLAN profile, than return this page and make the selection again. Determine if the packets transmitted to Internet through such Untag LAN profile with the VLAN ID number is tagged or not. Vigor2960 Series User’s Guide...
Page 118 Available parameters are listed as follows: Item Description Enable Check the box to enable the Mirror function for the switch. Mirroring Port Select a port to view traffic sent from mirrored ports. Vigor2960 Series User’s Guide...
Page 119 A pop up window will appear for you to change the settings. Renew current web page. Refresh Display the profile name of the interface. Interface Display the status of the profile. False means disabled; True Enable means enabled. Vigor2960 Series User’s Guide...
Page 120 Display addition information for such interface. Apply Click it to save and exit the dialog. Cancel Click it to exit the dialog without saving anything. Enter all of the settings and click Apply. The profile has been edited. Vigor2960 Series User’s Guide...
Page 121 It always takes a lot of time. To reduce the sending number of times, wasted bandwidth and transmission time, use Jumbo Frame to enlarge the size of the data and speed up the transmission rate for packets coming from LAN. Vigor2960 Series User’s Guide...
Page 122: Bind Ip To Mac
PC added to the LAN, you can click this link to obtain the newly ARP table information. Apply – Click it to save the setting. IP Address - Display the IP address of one device. Vigor2960 Series User’s Guide...
Page 123 Enable – Specified IP addresses on the Bind Table will be reserved for the device with bind MAC address. Other devices which are not listed on the Bind Table shall still get the IP address from DHCP server. Vigor2960 Series User’s Guide...
Page 124 IP address. Type a brief description for such profile. Comment Apply Click it to save and exit the dialog. Cancel Click it to exit the dialog without saving anything. Enter all of the settings and click Apply. Vigor2960 Series User’s Guide...
Page 125 A new profile has been added onto Bind Table. Vigor2960 Series User’s Guide...
Page 126: Lan Dns
Modify the selected VLAN ID setting. Edit To edit VALN ID setting, simply select the one you want to modify and click the Edit button. The edit window will appear for you to modify the corresponding settings for the Vigor2960 Series User’s Guide...
Page 127 Display which type (Specified LAN or All LANs) the LAN DNS will be applied to. LAN Profile Display the LAN profile selected for applying LAN DNS configuration. Open LAN>>LAN DNS. Click the Add button. The following dialog will appear. Vigor2960 Series User’s Guide...
Page 128 Type several domain names in this field. LAN DNS will redirect both Domain name and Alias Domain Name to an assigned IP. For example, Domain Name is set with “www.draytek.com”, and the Alias Domain Name is set as “www.dray.com”. If the IP address is set with “192.168.1.123”, then both “www.draytek.com”...
Page 129: Routing
The profiles configured here will be selected in the field of Routing >>Default Route page. Each item will be explained as follows: Item Description Add a new pool profile. Edit Modify the selected pool profile. Vigor2960 Series User’s Guide...
Page 130 If you choose Load Balance, the tab of Load Balance will be shown which allows you to configure for different WAN interfaces. If you choose Failover, the tab of Failover will be displayed which allows you to specify the primary profile and backup profile for such Pool setting. Vigor2960 Series User’s Guide...
Page 131 Use the drop down list of Interface to choose the WAN profiles that will be in the Load Balance Pool. Type the value for Weight. Click Apply. A new profile will be added on the page. Vigor2960 Series User’s Guide...
Page 132 Use the drop down list to choose the one you need. Backup Profile Use the drop down list to choose the one you need. Click Apply. A new profile will be added on the page. Vigor2960 Series User’s Guide...
Page 133: Static Route
Enable Display the status of the profile. False means disabled; True means enabled. Destination IP Address Display the IP address for such static route profile. Display the subnet mask for such static route profile. Subnet Mask Vigor2960 Series User’s Guide...
Page 134 Apply Click it to save and exit the dialog. Cancel Click it to exit the dialog without saving anything. Enter all of the settings and click Apply. The new profile will be added on the screen. Vigor2960 Series User’s Guide...
Page 135 Display the status of the profile. False means disabled; True means enabled. Display the IP address for such static route profile. Destination IP Address Prefix Length Display the prefix length of the profile. Nexthop Display the nexthop address for such static route profile. Vigor2960 Series User’s Guide...
Page 136 IP routing function to complete the work. Usually, the local device might be assigned with a public IP address or an IP address with the same subnet as certain WAN. When the local device tries to transmit the data packets out, Vigor2960 Series User’s Guide...
Page 137 Display the WAN profile used for such ARP profile. LAN Profile Display the LAN profile used for such ARP profile. Display the IP address used by such ARP profile. Mask Display the mask address used by such ARP profile. Vigor2960 Series User’s Guide...
Page 138 Click it to save and exit the dialog. Apply Cancel Click it to exit the dialog without saving anything. Enter all of the settings and click Apply. The new profile will be added on the screen. Vigor2960 Series User’s Guide...
Page 139: Policy Route
>>FAQ/Application Notes on www.draytek.com. Each item will be explained as follows: Item Description Add a new rule profile. Edit Modify the selected rule profile. To edit a profile, simply select the one you want to modify Vigor2960 Series User’s Guide...
Page 140 Display the route mode (NAT or Routing) used by such Mode policy route. Failover to Next Rule Display the status (enabled or disabled) of the function. Failback (Quick Display the status (enabled or disabled) of the function. Recover) Vigor2960 Series User’s Guide...
Page 141 Choose a protocol (ALL, TCP, UDP, TCP/UDP and ICMP) for such rule applied to load balance. All is the default setting. Source Source Type - Choose the address type (Any, Subnet or Object) for such rule. Vigor2960 Series User’s Guide...
Page 142  Country Object - Use the drop down list to choose the country object(s) for such rule profile. Route Rule Out-going Rule - It determines the way (interface) that the incoming traffic will be forwarded to. Vigor2960 Series User’s Guide...
Page 143 When target …..- When certain IP or domain connects successfully or fails to connect for several seconds, Vigor router will treat the selected interface as disconnected and activate Failover mechanism. For example, you might configure settings as: Out-going Rule : User Defined Vigor2960 Series User’s Guide...
Page 144 Vigor router will treat the selected interface as disconnected and activate Failover mechanism. For example, you might configure settings as: Out-going Rule : User Defined Out-going interface : wan1 Vigor2960 Series User’s Guide...
Page 145 [8.8.8.8] ping [Fail] for [5] seconds Then, it means even if wan1 connects to network always, once the target cannot be detected by Vigor router for 5 seconds, Vigor router will use next matched rule to perform data transmission. Vigor2960 Series User’s Guide...
Page 146 Disable to disable such function. When SSL VPN selected as Out-going Rule  SSL Profile – VPN SSL profiles can be selected by such policy route.  Mode – Specify which mode (NAT or Routing) Vigor2960 Series User’s Guide...
Page 147 Disable to disable such function. Apply Click it to save the configuration. Cancel Click it to return to the factory setting. Enter all of the settings and click Apply. The new rule profile will be added on the screen. Vigor2960 Series User’s Guide...
Page 148 NAT Address Mapping function lets you specify the outgoing IP address(es) for one internal IP address or a block of internal IP addresses. We will take an example to introduce how to make use of this feature. Log into the web user interface of Vigor2960. Vigor2960 Series User’s Guide...
Page 149 From the following page, set main WAN IP address as 202.211.100.10. Click Add on IP Alias to configure the other IP address which is 202.211.100.11. After finished configuration for WAN1, continue to configure WAN2. At this time, the IP switch shall be set as “203.98.200.10”. Vigor2960 Series User’s Guide...
Page 150 Open Objects Setting>>Object and click Add to create a new IP object profile. Type the required information as shown below. Click Apply to save the settings. Open Routing>> Policy Route and click Add to create a new profile. Vigor2960 Series User’s Guide...
Page 151 IP range object profile from the drop down list of IP Object. Click Apply to save the settings. And, Upon completing the above configuration, you have specified the outgoing IP address(es) for some specific computers. Now, you bind some specific computers to some WAN IP alias for outgoing traffic. Vigor2960 Series User’s Guide...
Page 152 Internet. The PC in LAN1 can send the data to the remote PC through the specified WAN1. Access into web user interface of Vigor2960. Open Routing>> Policy Route and click Add to create a new profile. Vigor2960 Series User’s Guide...
Page 153 Out-going Rule; choose WAN1 as the Load Balance Rule; click Disable for Failover to Next Rule. After finished the above settings, click Apply to save the configuration. Now, any packets from LAN1 sent to the remote PC (IP address: 203.65.1.35) will be forcefully to pass through WAN1. Vigor2960 Series User’s Guide...
Page 154 A LAN to LAN VPN tunnel is built between DrayTek VPN router (e.g., Vigor2960) and the remote router. Enterprise firewall router (in Headquarter) can control the all of the traffic coming from the remote PC (in Branch) which wants to access into Internet.
Page 155 Source Type and type the source IP address with 172.16.3.25; choose User Defined as Out-going Rule; choose lan1 as the Out-going Interface; type 192.168.1.2 as the Out-going (Gateway); and click Disable for Failover to Next Rule. After finished the above settings, click Apply to save the configuration. Vigor2960 Series User’s Guide...
Page 156: Default Route
Enable – Check it to let the network connection being WANs established through any active WAN interface. Disable – Check it to disable the function. Click it to save the configuration. Apply Cancel Discard current page modification. Vigor2960 Series User’s Guide...
Page 157: Rip Configuration
B will tell A "if you want to send packets to C, please send it to me first", then A will create a routing rule to forward packet that destination is C to B. In another direction, C will do the same thing. Vigor2960 Series User’s Guide...
Page 158 Check the box to enable the Mirror function for the switch. Profile Choose the LAN/WAN profile(s). Click it to save the settings. Apply Cancel Click it to exit the dialog without saving anything. After finished the settings, click Apply to save them. Vigor2960 Series User’s Guide...
Page 159: Ospf Configuration
Area – An AS will be divided into several areas. Each area must be assigned with a dedicated number. Note: For the detailed information of OSPF application, refer to section “3.2 How to Configure OSPF?”. Apply Click it to save the settings. Vigor2960 Series User’s Guide...
Page 160 Use the drop down list of LAN Profile to choose the one you need. And specify the value of Area (either 0.0.0.0 ~ 255.255.255.255 or 0 ~ 4294967295) for that profile. Click Apply to save the settings. A new profile is created and displayed on the screen. Vigor2960 Series User’s Guide...
Page 161: Bgp Configuration
AS numbers indicate the full paths that the route information will be taken. It can be operated by one or several ISPs and follows the routing policies made by ISP. Such page displays current neighbors status in BGP routing environment. Vigor2960 Series User’s Guide...
Page 162 Display the autonomous system number of the neighbor configured successfully in the Neighbor tab in Routing >>BGP configuration. State Display the status of neighbor profile. If it is established successfully, “Established (time)” will be shown in this field. Vigor2960 Series User’s Guide...
Page 163 Profile Number Limit - Display the total number of the profiles to be created. IP – Type the IP address. Subnet Mask – Display subnet mask for the IP address automatically. After finished the settings, click Apply to save the configuration. Vigor2960 Series User’s Guide...
Page 164 Delete button. Rename Allow to modify the selected profile name. Before using such function, there is one profile existed at least. Refresh Renew current web page. Profile Display the name of the profile. Vigor2960 Series User’s Guide...
Page 165 Click it to save and exit the dialog. Apply Cancel Click it to exit the dialog without saving anything. Enter all of the settings and click Apply. A new profile has been added onto Neighbor table. Vigor2960 Series User’s Guide...
Page 166: Nat
Series is NAT-enabled by default and gets one globally routable IP addresses from the ISP by Static, PPPoE, or DHCP mechanism. The Vigor2960 Series assigns private network IP addresses according to RFC-1918 protocol and translates the private network addresses to a globally routable IP address so that local hosts can communicate with the router and access the Internet.
Page 167 Display the starting number of the public port. Public Port End Display the ending number of the public port. Display the private IP used for this entry. Private IP Private Port Display the number of the private port. Vigor2960 Series User’s Guide...
Page 168 Specify the WAN interface for such profile. WAN Profile Use IP Alias When All is selected as WAN Profile, such feature is unavailable. Use the drop down menu to specify which type of IP Alias you want. Vigor2960 Series User’s Guide...
Page 169: Dmz Host
The DMZ may typically also have the company’s Web pages so these could be served to the outside world. If an outside user penetrated the DMZ host’s security, only the Web pages will be corrupted but other company information would not be exposed. Vigor2960 Series User’s Guide...
Page 170 Display the status of the profile. False means disabled; True means enabled. Outgoing WAN Profile Display the WAN profile that such DMZ host profile will be applied to. IP Alias Display the selected WAN IP address if Use IP Alias is enabled. Vigor2960 Series User’s Guide...
Page 171 Use the drop down list to choose the IP object profile(s) to apply to such profile. Allowed IP Group This is an optional setting. Use the drop down list to choose the IP group profile(s) to Vigor2960 Series User’s Guide...
Page 172 Click it to save and exit the dialog. Cancel Click it to exit the dialog without saving anything. Enter all of the settings and click Apply. A new profile has been added onto DMZ Host table. Vigor2960 Series User’s Guide...
Page 173: Alg
Available parameters are listed as follows: Item Description Enable SIP ALG Check the box to enable the function for the switch. Click it to save the settings. Apply Cancel Click it to discard the settings configured in this page. Vigor2960 Series User’s Guide...
Page 174: Connection Timeout
Available parameters are listed as follows: Item Description TCP Timeout Set a time limit for sessions established by TCP (except Port 80 and Port 443). UDP Timeout Set a time limit for sessions established by UDP. Vigor2960 Series User’s Guide...
Page 175: Firewall
Click it to discard the settings configured in this page. The firewall controls the allowance and denial of packets through the router. Firewall Setup in the Vigor2960 Series mainly consists of packet filtering, Denial of Service (DoS) and URL (Universal Resource Locator) content filtering facilities. These firewall filters help to protect your local network against attack from outsiders.
Page 176 Vigor2960 Series User’s Guide...
Page 177 The following dialog will appear. Available parameters are listed as follows: Item Description Group Type the name of the IP filter group. Enable Check the box to enable this profile. Give a brief description for the profile. Comment Vigor2960 Series User’s Guide...
Page 178 IP filter group profile. A setting page will appear for you to add new IP filter rule profile. Move your mouse to click Add. The following page for configuration will appear. Vigor2960 Series User’s Guide...
Page 179 Limit Packets setting can be passed immediately; however, packets number greater that the Limit Packets setting will be dropped. That is, packets to be passed or dropped are determined by connection rate (new session) at that time. Vigor2960 Series User’s Guide...
Page 180 The selected profile will be treated as service type. You can click to create another new service type object profile. Service Type Group –Click the triangle icon to display Vigor2960 Series User’s Guide...
Page 181 You can click to create another new IP object profile. Destination IP Group - Click the triangle icon display the profile selection box. Choose one or more IP group profiles from the drop down list. The selected profile Vigor2960 Series User’s Guide...
Page 182 Enter all of the settings and click Apply. 10. A new IP filter rule has been added under the IP Filter Group (named IPF_Market in this case). Note: You can create multiple IP filter rules under a certain IP Filter group. Vigor2960 Series User’s Guide...
Page 183 Display the total number of the profiles to be created. Profile Number Limit Group Display the name of the IP filter group profile. Enable Display the status of the profile. False means disabled; True means enabled. Comment Display the description for such profile. Vigor2960 Series User’s Guide...
Page 184 Give a brief description for the profile. Apply Click it to save and exit the dialog. Click it to exit the dialog without saving anything. Cancel Enter all of the settings and click Apply. A new filter group has been added. Vigor2960 Series User’s Guide...
Page 185 You can create filter rule by clicking on the left side of the selected IP filter group profile. A setting page will appear for you to add new IP filter rule profile. Move your mouse to click Add. Vigor2960 Series User’s Guide...
Page 186 When you choose Block If No Further Match or Accept If No Further Match as Block Action, you have to specify next IP filter group for further matching. Syslog Click Enable to make the history of firewall actions Vigor2960 Series User’s Guide...
Page 187 Click it to exit the dialog without saving anything. Enter all of the settings and click Apply. 10. A new IPv6 filter rule has been added under the IPv6 Filter Group (named For_IPv61 in this case). Vigor2960 Series User’s Guide...
Page 188 Note: You can create multiple IPv6 filter rules under a certain IP Filter group. Vigor2960 Series User’s Guide...
Page 189 Display the status of the profile. False means disabled; True means enabled. Time Object If no time schedule is set, None will be shown in this field. Time Group Display the Time group profile selected for such application profile. Vigor2960 Series User’s Guide...
Page 190 Type the name of the application filter profile. Enable Check the box to enable this profile. Click Enable to make the history of firewall actions Syslog appearing on the System Maintenance >> Syslog/Mail Alert >> Syslog File. Vigor2960 Series User’s Guide...
Page 191 Source LDAP Group - Click the triangle icon to display the profile selection box. Choose one or more user LDAP profiles from the drop down list. The selected profile will be treated as source target. You can click to create another Vigor2960 Series User’s Guide...
Page 192 Apply Click it to save and exit the dialog. Cancel Click it to exit the dialog without saving anything. Enter all of the settings and click Apply. A new application filter profile has been added. Vigor2960 Series User’s Guide...
Page 193 To delete a rule, simply select the one you want to delete and click the Delete button. Move Up Change the order of selected profile by moving it up. Move Down Change the order of selected profile by moving it down. Vigor2960 Series User’s Guide...
Page 194 Disable – Type the message manually to display on the page that the user tries to access into the blocked web page through HTTPs. Default HTTPS WebSite The message will display on the user's browser when he/she Vigor2960 Series User’s Guide...
Page 195 Disable – When only keyword and web category are selected for such rule, choose Disable. Syslog Click Enable to make the history of firewall actions appearing on the System Maintenance >> Syslog/Mail Alert >> Syslog File. Vigor2960 Series User’s Guide...
Page 196 Source LDAP Group - Click the triangle icon to display the profile selection box. Choose one or more user LDAP profiles from the drop down list. The selected profile will be Vigor2960 Series User’s Guide...
Page 197 Apply Click it to save and exit the dialog. Cancel Click it to exit the dialog without saving anything. Enter all of the settings and click Apply. A new URL filter profile has been added. Vigor2960 Series User’s Guide...
Page 198 If no time schedule is set, None will be shown in this field. Source IP Display the IP object profile selected for each rule. QQ Account Pass Display the account name which is allowed to pass if the Vigor2960 Series User’s Guide...
Page 199 The select account will not be blocked by Vigor router. You can click to create another new QQ account. Use the drop down list to specify a QQ account profile for QQ Account Block Vigor2960 Series User’s Guide...
Page 200 Port Redirection/DMZ passing through Vigor router’s firewall.  Enable Syslog – Check the box to make related information for the blocked packets being recorded in Syslog. The above three policies also can be configured in Vigor2960 Series User’s Guide...
Page 201 Others are allowed to pass through without any inspection. Apply Click it to save the configuration. Cancel Click it to discard the settings configured in this page. After finished the above settings, click Apply to save the configuration. Vigor2960 Series User’s Guide...
Page 202: Dos Defense
Default interface profiles will be shown on the page. Choose one of the profiles and click Edit. You can modify the rate limit manually for each interface profile. Available parameters are listed as follows: Vigor2960 Series User’s Guide...
Page 203 Any packet that may paralyze the host in the security zone is blocked. The DoS Defense Engine also monitors traffic behavior. Any anomalous situation violating the DoS configuration is reported and the attack is mitigated. Available parameters are listed as follows: Item Description Vigor2960 Series User’s Guide...
Page 204 Block Trace Route Click Enable to activate the Block Trace Route function. Block SYN Fragment Click Enable to activate the Block SYN fragment function. Any packets having the SYN flag and fragmented bit sets will be dropped. Vigor2960 Series User’s Guide...
Page 205 The router will block any packets with unknown protocol types. Apply Click it to save the configuration. Cancel Click it to discard the settings configured in this page. After finished the above settings, click Apply to save the configuration. Vigor2960 Series User’s Guide...
Page 206: Mac Block
Display the total number of the object profiles to be created. Profile Display the name of the profile. Enable Display the status of the profile. False means disabled; True means enabled. MAC Address Display the MAC address for such profile. Vigor2960 Series User’s Guide...
Page 207 Apply Click it to save and exit the dialog. Cancel Click it to exit the dialog without saving anything. Enter all of the settings and click Apply. A new MAC Block profile has been created. Vigor2960 Series User’s Guide...
Page 208: Objects Setting
Vigor2960 allows users to set different filter profiles based on IP, service type, keyword, file extension, instant message application, P2P application, protocol application, web category, QQ application, time setting, SMS service, mail service and notification. These objects setting profiles can be applied in Firewall. Vigor2960 Series User’s Guide...
Page 209: Ip Object
Display the address type (single, range or subnet) for such profile. Start IP Address Display the IP address of the starting point for such profile. End IP Address Display the IP address of the ending point for such profile. Vigor2960 Series User’s Guide...
Page 210 Subnet as Address Type. Click it to save and exit the dialog. Apply Cancel Click it to exit the dialog without saving anything. Enter all of the settings and click Apply. A new IP object profile has been created. Vigor2960 Series User’s Guide...
Page 211: Ip Group
Display the total number (32) of the object profiles to be created. Group Name Display the name of the object group. Description Display the description for such profile. Objects Display the object profiles grouped under such group. Vigor2960 Series User’s Guide...
Page 212 Apply Click it to save the configuration. Cancel Click it to exit the dialog without saving anything. Enter all of the settings and click Apply. A new IP Group profile has been created. Vigor2960 Series User’s Guide...
Page 213: Ipv6 Object
Display the name of the object. Address Type Display the address type of the object. Address Pool Display the IP address/ IP range /subnet of the object. Open Objects Setting>>IPv6 Object. Simply click the Add button. The following dialog will appear. Vigor2960 Series User’s Guide...
Page 214 Apply Click it to save the configuration. Cancel Click it to exit the dialog without saving anything. Enter all of the settings and click Apply. A new IPv6 Object profile has been created. Vigor2960 Series User’s Guide...
Page 215: Country Object
To delete a rule, simply select the one you want to delete and click the Delete button. Refresh Renew current web page. Open Objects Setting>>Country Object. Simply click the Add button. The following dialog will appear. Vigor2960 Series User’s Guide...
Page 216 Check the box(es) for the country/countries to be blocked by Firewall. Apply Click it to save the configuration. Cancel Click it to exit the dialog without saving anything. Enter all of the settings and click Apply. A new Country Object profile has been created. Vigor2960 Series User’s Guide...
Page 217: Service Type Object
Display the starting source port for such profile. Source Port End Display the ending source port for such profile. Display the starting destination port for such profile. Destination Port Start Destination Port End Display the ending destination port for such profile. Vigor2960 Series User’s Guide...
Page 218 ICMP. Type a port number (0 – 65535) as the ending destination port. Apply Click it to save the configuration. Cancel Click it to exit the dialog without saving anything. Enter all of the settings and click Apply. Vigor2960 Series User’s Guide...
Page 219: Service Type Group
Display the name of the service type group. Description Display the description for such profile. Objects Display the service type object profiles grouped under such group. Open Objects Setting>> Service Type Group. Simply click the Add button. Vigor2960 Series User’s Guide...
Page 220 Apply Click it to save the configuration. Click it to exit the dialog without saving the configuration. Cancel Enter all of the settings and click Apply. A new Service Type Group profile has been created. Vigor2960 Series User’s Guide...
Page 221: Keyword /Dns Object
Renew current web page. Profile Number Limit Display the total number (100) of the object profiles to be created. Profile Display the name of the keyword object profile. Member Display the words specified in such profile. Vigor2960 Series User’s Guide...
Page 222 Click it to exit the dialog without saving the configuration. Enter all of the settings and click Apply. A new Keyword Object profile has been created. DNS can be set as a filter rule to be applied in Firewall. Vigor2960 Series User’s Guide...
Page 223 Display the total number (100) of the object profiles to be created. Profile Display the name of the DNS object profile. Member Table Display the words specified in such profile. Open Objects Setting>> DNS Object. Simply click the Add button. The following dialog will appear. Vigor2960 Series User’s Guide...
Page 224: File Extension Object
This page allows you to set file extension profiles which will be applied in Firewall. All the files with the extension names specified in these profiles will be processed according to the chosen action. Each item will be explained as follows: Item Description Vigor2960 Series User’s Guide...
Page 225 Display the selected file extension of activeX. Compression Display the selected file extension of compression. Display the selected file extension of execution. Execution Open Objects Setting>>File Extension Object. Simply click the Add button. The following dialog will appear. Vigor2960 Series User’s Guide...
Page 226 Use the drop down list to check the box (es) to select the file extension you need. Apply Click it to save the configuration. Cancel Click it to exit the dialog without saving the configuration. Enter all of the settings and click Apply. Vigor2960 Series User’s Guide...
Page 227: App Object
Renew current web page. Profile Number Limit Display the total number (32) of the object profiles to be created. Profile Display the name of the IM object profile. Display the IM application specified in such profile. Vigor2960 Series User’s Guide...
Page 228 Below shows the items with versions which are categorized under IM. Display the P2P specified in such profile. Protocol Display the protocol specified in such profile. Others Display other types specified in such profile. Vigor2960 Series User’s Guide...
Page 229 Click it to exit the dialog without saving the configuration. Click P2P to get the following page. Vigor2960 can block P2P application for users, especially for the ones who always upload or download improper files to Internet. Vigor2960 Series User’s Guide...
Page 230 POP3, for LAN users can be blocked by Vigor2960. Common services will be listed in this function and can be selected to be blocked by the router. Item Description Protocol Several protocols offered for you to choose. Check the one (s) you want to add for such profile. Vigor2960 Series User’s Guide...
Page 231 Several protocols offered for you to choose. Check the one g/Remote (s) you want to add for such profile. Control/Web HD Enter all of the settings and click Apply. A new APP Object profile has been created. Vigor2960 Series User’s Guide...
Page 232: Web Category Object
If you want to purchase a formal edition, simply contact with your DrayTek dealer. Note 1: Web Content Filter (WCF) is not a built-in service of Vigor router but a service powered by Commtouch.
Page 233 Display the items under certain category that you choose to Computer block. Other Display the items under certain category that you choose to block. Open Objects Setting>> Web Category Object and click the Web Category Object tab. Simply click the Add button. Vigor2960 Series User’s Guide...
Page 234 Simply check the one(s) that you don’t want the user to visit. Other Simply check the one(s) that you don’t want the user to visit. Apply Click it to save the configuration. Cancel Click it to exit the dialog without saving the configuration. Vigor2960 Series User’s Guide...
Page 235 MyVigor website. After finishing the activation for the trial version of WCF, remember to purchase “Silver Card” for WCF service from your DrayTek dealer or distributor. Note: This page is designed for Chinese IM "Tencent QQ" users (especially for China) only.
Page 236 Display the total number (16) of the object profiles to be created. Profile Display the name of the QQ object profile. Display the account name of the QQ object profile. Description Display a brief explanation of the QQ object profile. Vigor2960 Series User’s Guide...
Page 237: Qq Object
Type a brief explanation for the QQ object profile. Apply Click it to save the configuration. Cancel Click it to exit the dialog without saving the configuration. Enter all of the settings and click Apply. A new QQ Object profile has been created. Vigor2960 Series User’s Guide...
Page 238: Qq Group
Display the name of the group. Group Name Description Display the brief explanation for such group. Display the objects selected by such group. Objects Open Objects Setting>> QQ Group. Simply click the Add button. The following dialog will appear. Vigor2960 Series User’s Guide...
Page 239 Apply Click it to save the configuration. Cancel Click it to exit the dialog without saving the configuration. Enter all of the settings and click Apply. A new QQ group profile has been created. Vigor2960 Series User’s Guide...
Page 240: Time Object
Display the starting time of the time object profile. End Date Display the ending date of the time object profile. End Time Display the ending time of the time object profile. Weekdays Display the frequency of such time object profile. Vigor2960 Series User’s Guide...
Page 241 Specify the starting time of the time object profile. Specify the ending date of the time object profile. End Date End Time Specify the ending time of the time object profile. Weekdays Specify which days in one week should perform the schedule. Vigor2960 Series User’s Guide...
Page 242: Time Group
Display the total number (8) of the object profiles to be created. Display the name of the group. Group Name Description Display the brief explanation for such group. Display the time objects selected by such group. Objects Vigor2960 Series User’s Guide...
Page 243 Objects Setting>>Time Object will be seen here. Apply Click it to save the configuration. Cancel Click it to exit the dialog without saving the configuration. Enter all of the settings and click Apply. A new time group profile has been created. Vigor2960 Series User’s Guide...
Page 244: Sms Service Object
Display the user name that the sender can use to register to selected SMS provider. Quota Display the number of the credit that you purchase from the service provider Interval(s) Display the time interval for sending the SMS. Vigor2960 Series User’s Guide...
Page 245 Note that one credit equals to one SMS text message on the standard route. To avoid quota being exhausted soon, type time interval for Interval(s) sending the SMS. Apply Click it to save the configuration. Vigor2960 Series User’s Guide...
Page 246: Mail Service Object
Display the name of the profile. Enable Display the status of the profile. False means disabled; True means enabled. Mail From Display the mail address of the sender. SMTP Port Display the port number used for the SMTP service. Vigor2960 Series User’s Guide...
Page 247 Mail From Type the e-mail address of the sender. SMTP Port Type the port number for SMTP server. SMTP Server Type the IP address of the mail server. Click the Enable button to enable service. SSL/TLS Vigor2960 Series User’s Guide...
Page 248 Apply Click it to save the configuration. Cancel Click it to exit the dialog without saving the configuration. Enter all of the settings and click Apply. A new mail service object profile has been created. Vigor2960 Series User’s Guide...
Page 249 Display if such function is enabled or disabled. Temperature Display if such function is enabled or disabled. Router Reboot Display if such function is enabled or disabled. Syslog Display if such function is enabled or disabled. Vigor2960 Series User’s Guide...
Page 250: Notification Object
Enable – Such notification will be recorded in Syslog. Apply Click it to save the configuration. Cancel Click it to exit the dialog without saving the configuration. Enter all of the settings and click Apply. A new notification object profile has been created. Vigor2960 Series User’s Guide...
Page 251: User Management
The Online User Status is a monitoring tool which only works after you choose HTTP or HTTPS as the Mode setting on General Setup page of User Management>>Web Portal. Refer to section 4.7.1.2 General Setup to get more detailed information of setting web portal. Vigor2960 Series User’s Guide...
Page 252 Display the authentication type (local, RADIUS, LDAP, Login Disable, Guest) used by such user. LDAP Group Display the LDAP group used by such user. Logout/Clear It is a button which is used to disconnect the connection manually. Vigor2960 Series User’s Guide...
Page 253 Bulleting Board will be displayed on the screen when the user logs into the web user interface of Vigor router.  Show Bulletin in Captive Portal Page – It is available when Bulletin Board is enabled and HTTP/HTTPS is Vigor2960 Series User’s Guide...
Page 254 Period Time to Logout - It is available when Period Logout is enabled. Shutdown Logout(ARP Enable - Force the online user logging out the web user timeout) interface of Vigor router when the router shuts down. Vigor2960 Series User’s Guide...
Page 255 Bulletin Message It is available when Disable is selected in Upload Bulletin Message. The bulletin message is shown on login page or authorization page. In login page, it can be disabled by Show Bulletin In Login Page. Vigor2960 Series User’s Guide...
Page 256: User Profile
This function allows to configure all accounts (user profiles) in Vigor2960, including PPTP/L2TP, System user, and so on. User profile is used to configure different authorities, including web portal, VPN dial-in, PPPoE server, System Administration, etc., for different users. Vigor2960 Series User’s Guide...
Page 257 Display the current PPPoE traffic quota usage portion for Quota(MB) such user. Allow FTP Server Login Display if FTP Server Login is activated (enable or disable) or not. Open User Management>>User Profile. Simply click the Add button. Vigor2960 Series User’s Guide...
Page 258 The user has to type the password specified here to pass the authentication. When the user passes the authentication, he/she can access Internet via this router with the limitation configured in this user profile. Vigor2960 Series User’s Guide...
Page 259 The range is from 1 to 255. -1 means not limit; 0 means No access. PPTP/L2TP/SSL Server PPTP Dial-in / L2TP Click Enable to make network connection through Dial-in / SSL Tunnel PPTP/L2TP/SSL Tunnel protocol for users who access into Internet via such profile. Vigor2960 Series User’s Guide...
Page 260 Display the cumulative amount of time that the user (min) used. Reset - Click it to reset the setting to default value (0). Traffic Quota(MB) It is used to set the maximum traffic (MB) for such user profile. Vigor2960 Series User’s Guide...
Page 261 Click it to save the configuration. Click it to exit the dialog without saving the Cancel configuration. Enter all of the settings and click Apply. A new User Profile has been created. Below shows an example of user profile. Vigor2960 Series User’s Guide...
Page 262 By default, the Idle Timeout is set to 300 seconds. Modify PPTP Status Check the box to configure detailed setting. /Modify L2TP Status Enable – Click it to enable the PPTP/L2TP/SSL tunnel /Modify SSL Tunnel network connection all user profiles. Status Vigor2960 Series User’s Guide...
Page 263 Apply to All – Apply all of the modifications to all user profiles. Partial – Apply all of the modifications to specified user profile. After finished the above settings, click Apply to save the configuration. Vigor2960 Series User’s Guide...
Page 264 Bind IP Open User Management >> User Profile, and click Add. Set up user profile as shown below. Type Username; check Enable and type Password. Then, type Max User Login. Click Apply to save the settings. Vigor2960 Series User’s Guide...
Page 265 Type the Group Name (in this case, Room); Guest Name Prefix, and Number of Generate (in this case, 100); click Enable for Validity Period to type the Start Time and End time, and click Apply to save the settings. Vigor2960 Series User’s Guide...
Page 266 Open User Management >> Guest Profile and click Guest Group to check the Mass User account Group. By clicking each account (e.g., choose 1001 and click Edit), we can check the information for this account, and we may also modify the account name and password manually. Vigor2960 Series User’s Guide...
Page 267 Note that Administrator is able to Export the information for the whole group to a .csv file, which is useful to redistribute the account and password combinations to guests. Vigor2960 Series User’s Guide...
Page 268 Boss to put it into the white list, and this will allow this IP address to access to the Internet without authentication. After finishing configuration, Vigor2960 will redirect users to the authentication page when they try accessing to the Internet. Vigor2960 Series User’s Guide...
Page 269: User Group
For Room guest to access into Internet: The User Group can consist of several user profiles, which help the administrator to manage a large number of users conveniently. Each item will be explained as follows: Item Description Vigor2960 Series User’s Guide...
Page 270 Check this box to enable such profile. Member Use the drop down list to check the user profile(s) under such group. To clear the selected one, click to remove current object selections. Apply Click it to save the configuration. Vigor2960 Series User’s Guide...
Page 271: Guest Profile
Display the total number (30) of the profiles to be created. Group Display the name of the guest group. Enable Display the status of the profile. False means disabled; True means enabled. Comment Display the description for the profile. Vigor2960 Series User’s Guide...
Page 272 Start Time/End Time – Specify the valid period by typing the time with the format of YYYY-MM-DD-HH-MM. When it is set with “--“, that means such time setting is no limit. Apply Click it to save the configuration. Vigor2960 Series User’s Guide...
Page 273 You can create several guest names by clicking on the left side of the selected guest group profile. A setting page will appear for you to add new guest list. Move your mouse to click Add. The following page for configuration will appear. Vigor2960 Series User’s Guide...
Page 274 The guest profile can be unlocked to be used by other users. Enter all of the settings and click Apply. 10. A new guest has been added under the Guest Group (named Carrie in this case). Vigor2960 Series User’s Guide...
Page 275 (ending) Length – Type a number to determine the length of the Random Password Settings random passwords which will be assigned to the mass guest profiles by the system. The range of Password Length is 6~12. Vigor2960 Series User’s Guide...
Page 276 This function is used to export the guest profile names and random passwords. Available parameters are listed as follows: Item Description Guest Group Choose a group that you want to export the settings, including guest profile names and random passwords as a file for reference. Vigor2960 Series User’s Guide...
Page 277: Radius
It means the maximum usage duration for RADIUS authentication. Apply Click it to save the configuration. Cancel Click it to discard the settings configured in this page. After finished the above settings, click Apply to save the configuration. Vigor2960 Series User’s Guide...
Page 278 After finished the above settings, click Apply to save the configuration. Note: “Allow Radius Server Login” can be enabled from the configuration page in User Management>>User Profile. It allows the clients to be authenticated by internal RADIUS server of Vigor router. Vigor2960 Series User’s Guide...
Page 279: Ldap/Active Directory
Display the name of the profile. Enable Display the status of the profile. False means disabled; True means enabled. Bind Type Display the type setting selected for such profile. Server IP Address Display the IP address of the LDAP server. Vigor2960 Series User’s Guide...
Page 280 Open User Management>>LDAP/Active Directory. Simply click the Add button. The following dialog will appear. Available parameters are listed as follows: Item Description Type a name for such profile. Profile Enable This Profile Check this box to enable such profile. Vigor2960 Series User’s Guide...
Page 281 It means the maximum usage duration for LDAP authentication. Apply Click it to save the configuration. Click it to exit the dialog without saving the configuration. Cancel Enter all of the settings and click Apply. A new LADP/Active Directory Profile has been created. Vigor2960 Series User’s Guide...
Page 282: Application
Basically, Vigor routers are compatible with the DDNS services supplied by most popular DDNS service providers such as www.dyndns.org, www.no-ip.com, www.dtdns.com, www.changeip.com, www.dynamic- nameserver.com. You should visit their websites to register your own domain name for the router. Vigor2960 Series User’s Guide...
Page 283 The information will update immediately when the Refresh button is clicked. Refresh Renew current web page. Profile Display the name of the DDNS. Status Display the connection status of the DDNS server. Domain Name Display the domain name for the DDNS server. Vigor2960 Series User’s Guide...
Page 284 Display the domain name of such profile. Display the interface (My WAN IP or My Internet IP) IP Source selected by such DDNS profile. Force update interval Display the interval setting to refresh the data for such profile. Vigor2960 Series User’s Guide...
Page 285 WAN interface first, then applied to other interface. selected wan only – The DDNS profile will be applied to the traffic via WAN interface only. No other interface will be used. Service Provider Select the service provider for the DDNS account. Vigor2960 Series User’s Guide...
Page 286 Click it to force update the profile. Apply Click it to save the configuration. Cancel Click it to exit the dialog without saving the configuration. Enter all of the settings and click Apply. The DDNS Profile has been modified. Vigor2960 Series User’s Guide...
Page 287 This page displays the information related to all DDNS. Vigor2960 Series User’s Guide...
Page 288: Gvrp
Join Time Define the time for the system to send GVRP packet to other device. The unit is second. Apply Click it to save the configuration. Click it to discard the settings configured in this page. Cancel Vigor2960 Series User’s Guide...
Page 289: Igmp Proxy
Vigor router can NOT accept the packets transmitted from IGMP proxy.  IGMP Interface IP – Type the IP address of IGMP server. Apply Click it to save the configuration. Cancel Click it to discard the settings configured in this page. Vigor2960 Series User’s Guide...
Page 290: Upnp
Determine the maximum session number for UPnP function. Apply Click it to save the configuration. Cancel Click it to discard the settings configured in this page. The reminder as regards concern about Firewall and UPnP Can't work with Firewall Software Vigor2960 Series User’s Guide...
Page 291: High Availability
(Active) device, the lower Vigor2960 is regarded as Slave (standby) device. When Master Vigor2960 Series is broken down, the Slave device could replace the Master role to take over all jobs as soon as possible. However, once the original Master is working again, the Slave would be changed to original role to stand by.
Page 292 Config Synchronization Role(Hot-Standby) – Specify the Settings under Hot-Standby role for such Vigor router. Primary – It means such Vigor router is treated as the primary device (master device). Authentication Key – Type a string as the authentication key. Vigor2960 Series User’s Guide...
Page 293 Authentication Key – Type a string as the authentication key. It is used for encrypting the HA session communication to prevent malicious attack. Advance Preemption Mode – Specify a mode for changing the Config Synchronization Role. Vigor2960 Series User’s Guide...
Page 294 WAN connection status. It is similar to "LAN Port Detection Mode" but will detect connection status of all enabled WAN profiles. If connection status of all enabled WAN profiles are down, the master router hands off its Vigor2960 Series User’s Guide...
Page 295 (router). When the primary device fails, one of the rest ones will be elected as the new master device. When the Master device fails, one of the slave devices will be chosen as the Master device to offer the network service for the connected PCs. Vigor2960 Series User’s Guide...
Page 296 Gateway VHID Display the virtual host ID number of the profile. HA Status Display the online status (Master, Backup, LAN_failed and WAN_Failed) of such HA profile. Open Applications>>High Availability and click the Hot-Standby Profile Setup tab. Vigor2960 Series User’s Guide...
Page 297 VHID is used for Backup router to identify which Master will be backed up. Click it to save the configuration. Apply Cancel Click it to discard the settings configured in this page. Enter all of the settings and click Apply. Vigor2960 Series User’s Guide...
Page 298 All the WAN interfaces can be active which provide more flexible utilization of network service. When LAN1 in Router A fails, one of the available line connections (e.g., LAN1 in Router C) will be selected to offer the network service for all the connected PCs. Vigor2960 Series User’s Guide...
Page 299 Display the virtual host ID number of the profile. Role Display the role of this profile in the corresponding HA group. HA Status Display the online status (Master, Backup, LAN_failed and WAN_Failed) of such HA profile. Vigor2960 Series User’s Guide...
Page 300 Each HA LAN profile (configured under the same router) must be specified a role as Master or Backup. Apply Click it to save the configuration. Cancel Click it to discard the settings configured in this page. Vigor2960 Series User’s Guide...
Page 301: Wake On Lan
IP Address - The IP addresses that have been configured in Firewall>>Bind IP to MAC will be shown in this drop down list. Choose the IP address from the drop down list that you want to wake up. Vigor2960 Series User’s Guide...
Page 302 Display the name of the profile. Display the status of profile (true means Enable/ false means Enable Disable). Bind Table Display the profile name from Bind Table. MAC Address Display the MAC address of the computer to be woke on Vigor2960 Series User’s Guide...
Page 303 LAN profile will be waken up remotely. Apply Click it to save the configuration and exit the page. Cancel Click it to exit the dialog without saving the configuration. Enter all of the settings and click Apply. Vigor2960 Series User’s Guide...
Page 304: Sms / Mail Alert Service
Display the status of the profile. False means disabled; True Enable means enabled. SMS Provider Display the name of the SMS provider. Recipient Display the one who will receive the SMS. Notify Profile Display the name of the notify profile. Vigor2960 Series User’s Guide...
Page 305 Click it to save the configuration and exit the page. Cancel Click it to exit the dialog without saving the configuration. Enter all of the settings and click Apply. The SMS alert service profile has been modified. Vigor2960 Series User’s Guide...
Page 306 Notify Profile Display the name of the notify profile. Open Applications>> SMS/Mail Alert Service and click the Mail Alert Service tab. Choose one of the index numbers and click the Edit button. The following dialog will appear. Vigor2960 Series User’s Guide...
Page 307 Click it to save the configuration and exit the page. Click it to exit the dialog without saving the configuration. Cancel Enter all of the settings and click Apply. The mail alert service profile has been modified. Vigor2960 Series User’s Guide...
Page 308: Vpn And Remote Access
Below shows the menu items for VPN and Remote Access. Such wizard is used to configure VPN settings for VPN client. Such wizard will guide to set the LAN-to-LAN profile for VPN dial out connection (from server to client) step by step. Vigor2960 Series User’s Guide...
Page 309 Create New VPN Profile – It allows you to create a new VPN LAN to LAN profile. Simply type the name in the field of Profile Name. The field of Profile Name is available only when you click this setting. Vigor2960 Series User’s Guide...
Page 310 If you choose PPTP as the Type, you will get the following screen: Available parameters are listed as follows: Item Description Profile Display the name of the VPN profile. Enable Check this box to enable such profile. Always On Click Enable to make the profile being always on. Vigor2960 Series User’s Guide...
Page 311 Disable – This is default setting. Click this button to let multicast packets be blocked by the router.  RIP via VPN Enable – Click it to exchange routing information protocol packets via VPN connection.  Disable – Disable such function. This is default setting. Vigor2960 Series User’s Guide...
Page 312 Choose AH to specify the IPsec protocol for the Authentication Header protocol. The data will be authenticated but not be encrypted. DPD Delay DPD means dead peer detection. It is a keep-alive timer. A Vigor2960 Series User’s Guide...
Page 313 Type the IP address or host name of SSL VPN server. Name SSL User Name Type a user name for authentication in SSL VPN connection. SSL Password Type a password for authentication in SSL VPN connection. Vigor2960 Series User’s Guide...
Page 314 Enable – Click it to exchange routing information packets via VPN connection.  Disable – Disable such function. Fill in the required information on this page and click Finish. Later, a new profile has been created. Vigor2960 Series User’s Guide...
Page 315: Vpn Server Wizard
LAN-to-LAN profile for VPN dial in connection (from client to server) step by step. Open VPN and Remote Access >> VPN Server Wizard. The following dialog will appear. Available parameters are listed as follows: Item Description Type Specify which protocol (PPTP/IPsec/SSL) will be used for such VPN profile. Vigor2960 Series User’s Guide...
Page 316 Profile previously. Otherwise, there are no selections displayed here. Local IP / Subnet Type the IP address and subnet mask of local host. Mask Remote IP / Subnet Type the LAN IP address and LAN subnet mask for the Mask remote host. Vigor2960 Series User’s Guide...
Page 317 WAN Profile Choose a WAN profile to be used by such profile. Local IP/Subnet Type the IP address and subnet mask of local host. Mask Local Next Hop Specify the gateway for WAN interface. Usually, use the Vigor2960 Series User’s Guide...
Page 318 It is the timeout timer. The peer will be declared dead once no acknowledge message is received after timeout value. Use the value 0 to disable this function. The recommended value is 120 seconds if enabled. Vigor2960 Series User’s Guide...
Page 319 Enable – Click this button to let multicast packets pass through the router.  Disable – This is default setting. Click this button to let multicast packets be blocked by the router.  Enable – Click it to exchange routing information RIP via VPN Vigor2960 Series User’s Guide...
Page 320 Fill in the required information on this page and click Finish. A pop-up window will appear. Click OK. Then, return to VPN and Remote Access>>VPN Server Wizard. The new added VPN server profile will be displayed on the screen. Vigor2960 Series User’s Guide...
Page 321: Remote Access Control
Enable SSL Tunnel /IPsec Service IPsec Remote Dial-In Choose one of the services by clicking on the radio button. Service Apply Click it to save the configuration. Cancel Click it to discard the settings configured in this page. Vigor2960 Series User’s Guide...
Page 322: Ppp General Setup
CHAP protocol. MPPE Encryption Specify one of the encryptions for such server. It is available only when MS-CHAP or MS-CHAP_v2 is selected. User Authentication Set user authentication to Local , RADIUS or LDAP server. Type Vigor2960 Series User’s Guide...
Page 323 Enable – Click it to make PPTP acceleration for VPN. Apply Click it to save the configuration. Cancel Click it to discard the settings configured in this page. This page display current status for VPN tunnel built with L2TP protocol. Vigor2960 Series User’s Guide...
Page 324 Enable - Let the router assign IP address to every host in the LAN. Disable - Let you manually assign IP address to every host in the LAN. DHCP Server Location It is available when DHCP Relay is enabled. Vigor2960 Series User’s Guide...
Page 325 If it is checked, the router will use L2TP with IPsec policy Force L2TP with IPsec for VPN connection. policy Apply Click it to save the configuration. Cancel Click it to discard the settings configured in this page. Enter all of the settings and click Apply. Vigor2960 Series User’s Guide...
Page 326 Type the maximum segment size (MSS) for SSL VPN tunnel. Apply Click it to save the configuration. Cancel Click it to discard the settings configured in this page. Enter all of the settings and click Apply. Vigor2960 Series User’s Guide...
Page 327: Ipsec General Setup
Type the maximum segment size (MSS) for IPsec VPN tunnel. Apply Click it to save the configuration. Cancel Click it to discard the settings configured in this page. Enter all of the settings and click Apply. Vigor2960 Series User’s Guide...
Page 328: Vpn Profiles
Display the status of the profile. False means disabled; True means enabled. Dial-Out Through Display the WAN interface selected for the profile. Local IP / Subnet Mask Display the LAN IP address with subnet mask of this profile. Vigor2960 Series User’s Guide...
Page 329 VPN connection based on the condition selected (e.g., Always Dial-Out, if.wan1/wan2/usb1/usb2 down). For Remote Dial-In User- Click Enable to allow the connection via IPsec remote dial-in host. Dial-Out Through- Choose a wan profile to be used by such Vigor2960 Series User’s Guide...
Page 330 IPsec protocol for the Authentication Header protocol. The data will be authenticated but not be encrypted. Apply Click it to save the configuration. Cancel Click it to exit the page without saving the configuration. Vigor2960 Series User’s Guide...
Page 331 Ping to Keep Alive Enable – Click it to enable such function. Ping to the IP - If you enable the PING function, please specify the IP address for the system to PING it for keeping alive. Vigor2960 Series User’s Guide...
Page 332 Enable – Click it to exchange routing information protocol packets via VPN connection.  Disable – Disable such function. This is default setting. Apply Click it to save the configuration. Cancel Click it to exit the page without saving the configuration. Vigor2960 Series User’s Guide...
Page 333 The length is 4 bytes. Apply Click it to save the configuration. Cancel Click it to exit the page without saving the configuration. Vigor2960 Series User’s Guide...
Page 334 - When the VPN tunnel is established, only the selected proposal will be accepted and applied by this device. Click it to save the configuration. Apply Cancel Click it to exit the page without saving configuration. Vigor2960 Series User’s Guide...
Page 335 Display the WAN interface selected for the profile. Server IP/Host Display the IP address or the host name of PPTP/SSL server. PPTP User Name/ Display the user name for authentication in PPTP/SSL connection. SSL User Name Vigor2960 Series User’s Guide...
Page 336 If the user is idle over the limitation of the timer, the network connection will be stopped for such user. By default, the Idle Timeout is set to 300 seconds. Server IP/Host Type the IP address or the host name of PPTP/SSL server. Vigor2960 Series User’s Guide...
Page 337 Disable – Disable such function. This is default setting. Apply Click it to save the configuration. Cancel Click it to exit the page without saving the configuration. Enter all of the settings and click Apply. A new PPTP/SSL Dial-Out VPN profile has been created. Vigor2960 Series User’s Guide...
Page 338 SSL User Name Local IP / Subnet Mask Display the LAN IP address with subnet mask of this profile. Display the WAN IP address with subnet mask of this Remote IP / Subnet Mask profile. Vigor2960 Series User’s Guide...
Page 339 Enable – Click this button to let multicast packets pass through the router.  Disable – This is default setting. Click this button to let multicast packets be blocked by the router.  RIP via VPN Enable – Click it to exchange routing information Vigor2960 Series User’s Guide...
Page 340 Disable – Disable such function. This is default setting. Apply Click it to save the configuration. Click it to exit the page without saving the configuration. Cancel Enter all of the settings and click Apply. A new PPTP/SSL Dial-In LAN-to-LAN profile has been created. Vigor2960 Series User’s Guide...
Page 341: Vpn Trunk Management
VPN Tunnels disconnected. Users do not need to reconnect with setting TCP/UDP Service Port again. The VPN Load Balance function can keep the transmission for internal data on tunnel stably. Vigor2960 Series User’s Guide...
Page 342 Display which mode (load_balance or failover) is selected. Interface Display the name of the Load Balance profile grouped under such pool profile. Primary Interface Display the primary interface for failover. Backup Interface Display the backup interface for failover. Vigor2960 Series User’s Guide...
Page 343 Important!!! If there is no selection for Interface option, please go to VPN and Remote Access>>VPN Profiles to create a new IPsec LAN to LAN profile with enabled GRE setting. Then, return to this page to specify the Interface option. Enter all of the settings and click Apply. Vigor2960 Series User’s Guide...
Page 344 Protocol Display the protocol configured by such profile. Source IP Address Display the source IP address specified for this profile. Source Mask Display the subnet mask address specified for the source IP of this entry. Vigor2960 Series User’s Guide...
Page 345 Type the subnet mask address specified for the source IP. Destination IP Type the destination IP address specified for this entry. Address Destination Mask Type the subnet mask address specified for the destination Destination Port Type the start point. Vigor2960 Series User’s Guide...
Page 346: Connection Management
Connect Click this button to execute dial out function. Refresh Renew current web page. Auto Refresh Specify the interval of refresh time to obtain the latest status. The information will update immediately when the Refresh Vigor2960 Series User’s Guide...
Page 347 Display the connection type used of such VPN. Remote IP Display the IP address of the remote end. Action Display the connection status (UP or DOWN) of VPN profile. Time Display the time the VPN profile connects/disconnects. Vigor2960 Series User’s Guide...
Page 348: Certificate Management
Remember to adjust the time of Vigor router before using the certificate so that you can get the correct valid period of certificate. Below shows the menu items for Certificate Management. Local certificate is created by the end user and must be signed by a trusted CA center. Vigor2960 Series User’s Guide...
Page 349: Local Certificate
Click this button to open the following dialog to upload selected certificate onto the router. After choosing the certificate file type, type the required information and choose the required file (e.g., Key Passphrase, Key File, PKCS12 Password and PKCS12 File). Vigor2960 Series User’s Guide...
Page 350 Available parameters are listed as follows: Item Description Certificate Name Type the name of the local certificate. ID Type The ID type for such certificate. There are four types: Domain Name: Certificated by domain name. IP: Certificated by IP address. Vigor2960 Series User’s Guide...
Page 351 Click it to create a new local certificate based on the Apply configuration here. Cancel Click it to exit the web page without saving the configuration. Enter all of the settings and click Apply. A new generated Local Certificate has been created. Vigor2960 Series User’s Guide...
Page 352 Open Certificate Management>> Local Certificate. Specify a certificate and click the Download button. Click Save. The file will be stored under the folder you specified above. Open Certificate Management>> Local Certificate. Click Upload to open the following dialog. Vigor2960 Series User’s Guide...
Page 353 From the above dialog, choose the certificate you want and click Open. The dialog box with the selected certificate file name will be shown as follows. Click Upload. The system will start to upload the selected file. Vigor2960 Series User’s Guide...
Page 354: Trusted Ca Certificate
(CA) to be used as a CA for signing the local certicate. Just create a new Trust CA Certificate first. Each item will be explained as follows: Item Description Upload Click this button to open the following dialog to upload selected certificate onto the router. Vigor2960 Series User’s Guide...
Page 355 Display the issuer of trusted certificate built. Status Display the status of trusted certificate built. Valid From Display the starting point of the valid time of trusted certificate. Display the end point of the valid time of trusted certificate. Valid To Vigor2960 Series User’s Guide...
Page 356: Remote Certificate
After choosing the PKCS12 Certificate mode, type the required information and choose the required file (e.g., PKCS12 Password and PKCS12 File). Later, click Upload on the dialog to upload the file onto Vigor router. Vigor2960 Series User’s Guide...
Page 357 Select File Use the Browse.. button to specify a file to be used as a certificate. Name Display the name of certificate built. Subject Display the subject of certificate built. Status Display the status of certificate built. Vigor2960 Series User’s Guide...
Page 358: Ssl Proxy
Edit button. The edit window will appear for you to modify the corresponding settings for the selected profile. Delete Remove the selected profile. To delete a profile, simply select the one you want to delete Vigor2960 Series User’s Guide...
Page 359 URL setting. Apply Click it to save the configuration. Cancel Click it to exit the page without saving the configuration. Enter all of the settings and click Apply. A new SSL Web Proxy profile has been created. Vigor2960 Series User’s Guide...
Page 360: Ssl Application
Display the name of the profile that you create. IP Address Display the IP address for this protocol. Port Display the port used for this protocol. Scaling Display the percentage for such application. Open SSL VPN>> SSL Application and click the VNC tab. Vigor2960 Series User’s Guide...
Page 361 Chose the percentage (100%, 80%, 60%) for such application. Apply Click it to save the configuration. Cancel Click it to exit the page without saving the configuration. Enter all of the settings and click Apply. A new SSL Application profile has been created. Vigor2960 Series User’s Guide...
Page 362 Display the port used for this protocol. Screen Size Display the screen size for such application. Open SSL VPN>> SSL Application and click the RDP tab. Simply click the Add button. The following dialog will appear. Vigor2960 Series User’s Guide...
Page 363 Screen Size Apply Click it to save the configuration. Cancel Click it to exit the page without saving the configuration. Enter all of the settings and click Apply. A new SSL Application profile has been created. Vigor2960 Series User’s Guide...
Page 364: Online User Status
If you have finished the configuration of SSL Web Proxy (server), users can find out corresponding settings when they access into DrayTek SSL VPN portal interface. Each item will be explained as follows: Item Description Refresh Renew current web page.
Page 365: Central Vpn Management
(called CVM server) which can manage TR-069 CPE for periodical firmware upgrade, configuration backup and restoring configuration. Below shows the menu items under CVM: Note: 1. Such menu can manage the CPE connected through WAN only. 2. Up to 12 devices can be managed. Vigor2960 Series User’s Guide...
Page 366: General Setup
Disable – Click it to disable the polling function. Polling Interval Type the time value (unit is second). The range is from 60 ~ 86400. Apply Click it to save the configuration. Cancel Click it to discard the settings configured in this page. Vigor2960 Series User’s Guide...
Page 367 IKE Phase1 Mode Choose Aggressive or Main as the IKE Phase1 Mode. Apply Click it to save the configuration. Cancel Click it to discard the settings configured in this page. Vigor2960 Series User’s Guide...
Page 368: Cpe Management
Edit – To modify the name and location of specific CPE, click the one you want and click the Edit button. A pop up window will appear. Simply change the name (for identification) and/or location manually. Vigor2960 Series User’s Guide...
Page 369 Managed Devices Status area again. Maintenance This area displays all the profiles which are created for applying to the managed device. Add – To add a new profile, simply click it to open a pop up window. Vigor2960 Series User’s Guide...
Page 370 Action – Display the action specified for such profile. Schedule – Display the frequency of for such profile which will be performed by Vigor router. Weekdays – Display the day(s) chosen for such profile. Vigor2960 Series User’s Guide...
Page 371 Vigor2960. Choose the one which will be applied with such new created profile. Usually, the name of the device will be assigned by Vigor2960 automatically. If you want to give a name easy for easy recognition, refer to 4.11.2.1 CPE Maintenance to Vigor2960 Series User’s Guide...
Page 372 It is available only when Weekdays is selected as Schedule. Weekdays Simply check the day you want. Filename Type the name string of the file which will be used for firmware upgrade, configuration backup or configuration Vigor2960 Series User’s Guide...
Page 373 If not, refer to sections “3.4 How to manage the CPE (router) through Vigor2960?” for more detailed information. If the VPN isn’t established successfully, a red line will appear instead. Vigor2960 Series User’s Guide...
Page 374 Add – Click it to open the following dialog. Type the name of the profile and choose the CPE from the Device drop down list. Then, click Apply to save the settings. Such profile will be applied to the device connecting to Vigor2960 with VPN. Vigor2960 Series User’s Guide...
Page 375 Virtual Network – Display the IP address of Vigor2960. Up Time –Display the connection time of such VPN. RX(Packets) /TX(Packets) –Display the number of the packets exchanged in such VPN. Disconnect – Click it to disconnect the VPN. Vigor2960 Series User’s Guide...
Page 376 To display the location of the selected CPE with a bird’s eye view, open Central VPN Management>>CPE Management and click the tab of Map. Vigor2960 Series User’s Guide...
Page 377: Log/Alert
The Log page offers brief information to identify the CPE connected to Vigor2960. The Alert page offers brief information to identify the CPE connected to Vigor2960. Vigor2960 Series User’s Guide...
Page 378: Bandwidth Management
The QoS function handles incoming and outgoing classes independently. Users can configure incoming or outgoing separately without any impact on the other. This page displays current QoS Status. Vigor2960 Series User’s Guide...
Page 379 Display bandwidth for the incoming data is enabled or disabled. Follow the steps below to create a new maintenance profile. Click one of the QoS WAN profiles to select the one you want to edit. Click Edit. Vigor2960 Series User’s Guide...
Page 380 Type the weight of queues in bytes, range from 0 to 1000000. Apply Click it to save and exit the dialog. Cancel Click it to exit the dialog without saving anything. Enter all of the settings and click Apply. Vigor2960 Series User’s Guide...
Page 381 Type the weight of queues in bytes, range from 0 to 1000000. Apply Click it to save and exit the dialog. Cancel Click it to exit the dialog without saving anything. Enter all of the settings and click Apply. Vigor2960 Series User’s Guide...
Page 382: Qos Rule
Display the destination IP address for the filter. Remote IP Object Service Type Display the service type (e.g., IKE, HTTP, AUTH and etc) for the filter. Match Type Display the match type (e.g., TOS or DSCP) for the filter. Vigor2960 Series User’s Guide...
Page 383 Type the name of the filter profile. Enable Check this box to enable such profile. Match Type Use the drop down list to specify a suitable match type. It is available when DSCP is selected as the Match type. DSCP Vigor2960 Series User’s Guide...
Page 384 IP objects for such rule profile. Local IP Group – Use the drop down list to choose one of the IP group for such rule profile. If you want to create a new IP object, simply click open the following dialog. Vigor2960 Series User’s Guide...
Page 385 Start IP Address - Type the IP address of the starting point for such profile.  End IP Address - Type the IP address of the ending point for such profile if you choose Range as Address Vigor2960 Series User’s Guide...
Page 386 Click it to save the configuration and exit the page. Cancel Click it to exit the page without saving the configuration. Enter all of the settings and click Apply. A QoS rule profiler has been created. Vigor2960 Series User’s Guide...
Page 387 Enable - Click it to enable VoIP QoS function. SIP UDP Port Set a port number used for SIP. Apply Click it to save and exit the dialog. Cancel Click it to discard the settings configured in this page. Vigor2960 Series User’s Guide...
Page 388 Apply Click it to save and exit the dialog. Cancel Click it to discard the settings configured in this page. Vigor2960 Series User’s Guide...
Page 389: Sessions Limit
Allow to modify the selected profile name. Refresh Renew current web page. Profile Display the name of the profile. Enable Display the status of the profile. False means disabled; True means enabled. Limit Display the maximum session number allowed for the Vigor2960 Series User’s Guide...
Page 390 Apply Click it to save and exit the dialog. Cancel Click it to discard the settings configured in this page. Open Bandwidth Management>> Sessions Limit. Simply click the Add button. The following dialog will appear. Vigor2960 Series User’s Guide...
Page 391 Source IP Object - Click the triangle icon to display the profile selection box. Choose one or more IP object profiles from the drop down list. The selected profile will be treated Vigor2960 Series User’s Guide...
Page 392: Bandwidth Limit
Edit button. The edit window will appear for you to modify the corresponding settings for the selected profile. Delete Remove the selected profile. To delete a profile, simply select the one you want to delete Vigor2960 Series User’s Guide...
Page 393 Default RX Limit –Define the limitation for the speed of the downstream. Apply Click it to save and exit the dialog. Cancel Click it to discard the settings configured in this page. Open Bandwidth Management>>Bandwidth Limit. Simply click the Add button. The following dialog will appear. Vigor2960 Series User’s Guide...
Page 394 Time Object - Click the triangle icon to display the profile selection box. Choose a schedule object profile to be applied on such rule. You can click to create another new time object profile. Vigor2960 Series User’s Guide...
Page 395 Click it to save the configuration and exit the dialog. Cancel Click it to exit the dialog without saving the configuration. Enter all of the settings and click Apply. A bandwidth limit profile has been created. Vigor2960 Series User’s Guide...
Page 396: Usb Application
Click it to refresh current USB connection status. The result will be shown on the screen immediately. Restart Devices Click it to restart the USB device. Display the manufacturer of the USB device. Manufacturer Model Display the type of the USB device. Vigor2960 Series User’s Guide...
Page 397: Ftp Server
FTP user profile created. Just open User Management>>User Profile, create a new user profile with Allow FTP Server Login enabled. Volume It displays the proper volume for the connected USB disk. Path It displays the directory name for the connected USB disk. Vigor2960 Series User’s Guide...
Page 398: Temperature Sensor
IP and the FTP server. The default setting is “10”. A USB Thermometer is now available that complements your installed DrayTek router installations that will help you monitor the server or data communications room environment and notify you if the server room or data communications room is overheating.
Page 399 The default setting is one minute. That means, the Interval temperature alert will be sent per minute. Click it to save the configuration and exit the dialog. Apply Cancel Click it to exit the dialog without saving the configuration. Vigor2960 Series User’s Guide...
Page 400: Modem Support List
Enter all of the settings and click Apply. Such page provides the information about the brand name and model name of the USB modems which are supported by Vigor router. Vigor2960 Series User’s Guide...
Page 401: System Maintenance
TR-069 device (Vigor router, AP and etc.) through VigorACS SI ( Server Each item will be explained as follows: Item Description Enable Check this box to enable such profile. ACS server on Choose one of the WAN/LAN profiles which will be Vigor2960 Series User’s Guide...
Page 402 A value of “-1” indicates that no maximum period is specified. Apply Click it to save the configuration. Cancel Click it to discard the settings configured in this page. Enter all of the settings and click Apply. Vigor2960 Series User’s Guide...
Page 403: Administrator Password
Original Password New Password Type the new password. Confirm Password Re-type the new password for confirmation. Apply Click this button to save the configuration and exit the web page. Enter all of the settings and click Apply. Vigor2960 Series User’s Guide...
Page 404: Configuration Backup
Backup to Remote TFTP Server – The configuration file will be stored in the remote TFTP server specified. Backup Selected Config – The configuration file will be stored with an existing file in local host. You must select which file you want to store. Vigor2960 Series User’s Guide...
Page 405 Use the Browse.. button to locate the file for uploading to the router. Restore Click it to upload the selected file to the router. After finishing the restoration, the system will ask you to reboot the router. Vigor2960 Series User’s Guide...
Page 406: Syslog / Mail Alert
Save or open the Syslog file. Remove all of the records. Clear Syslog Auto Refresh Specify the interval of refresh time to obtain the latest status. The information will update immediately when the Refresh button is clicked. Vigor2960 Series User’s Guide...
Page 407 Type the name of the router. The default name is Vigor. Firewall Log Click Enable to make the firewall log recorded in the Syslog. VPN Log Click Enable to make the VPN log recorded in the Syslog. Vigor2960 Series User’s Guide...
Page 408 Click Enable to make any user logging into the mail server. If you click Enable, you have to type user name and user password on the below fields. Type the user name for authentication. User Name Vigor2960 Series User’s Guide...
Page 409: Time And Date
Select the time zone where the router is located. Daylight Saving Click Enable to enable the daylight saving. Such feature is available for certain area. Apply Click this button to save the configuration and exit the web page. Vigor2960 Series User’s Guide...
Page 410: Access Control
Click Enable to allow system administrator to login from the Telnet Allow telnet and management the web page of the router. SSH Allow Click Enable to allow system administrator to login from the SSH server and management the web page of the router. Vigor2960 Series User’s Guide...
Page 411 Telnet Port Type the port number for the management through telnet page. SSH Port Type the port number for the management through SSH server. HTTPS Port Type the port number for the management through HTTPS server. Vigor2960 Series User’s Guide...
Page 412 Times) but fails, he/she will be prohibited to login for a period of time. When the penalty time limit is up, he/she is allowed to login into Vigor router again. Disable - Disable the function of Fail to Ban for Web UI/SSH/FTP/TELNET/PPTP/SSL. Vigor2960 Series User’s Guide...
Page 413 SSH/Telnet/FTP Access reception rate for certain protocol can be configured to avoid Barrier attack from unknown people. Click this button to save the configuration. Apply Cancel Click it to discard the settings configured in this page. Vigor2960 Series User’s Guide...
Page 414: Snmp Setup
Type a password for authentication. The maximum length of Length:8) the text is limited to 23 characters. Privacy Algorithm Choose one of the methods listed below as the privacy algorithm. Privacy Password(Min. Type a password for privacy. The maximum length of the Vigor2960 Series User’s Guide...
Page 415: Reboot System
Reboot with Customized Click it to reboot the router using the current configuration Configurations (only the configuration settings listed and selected below). If you choose this option, Select Config File will be available for you to select. Vigor2960 Series User’s Guide...
Page 416 If you do not create any time object previously, you can also create a required one in this page directly. The bottom of this page offers tools for you to create time object. The way of configuration is the same as settings in Objects Setting>>Time Object. Vigor2960 Series User’s Guide...
Page 417: Firmware Upgrade
The following web page will guide you to upgrade firmware by using such page. Download the newest firmware from DrayTek's web site or FTP site. The DrayTek web site is www.DrayTek.com (or local DrayTek's web site) and FTP site is ftp.DrayTek.com.
Page 418 (http://www.draytek.com.tw/ftp). Upgrade from Server Check Update –Vigor router will inquire to website (http://www.draytek.com.tw/ftp) if there is any newest firmware available for use. If yes, Vigor router will download the newest firmware from the website to the host (Vigor router) automatically.
Page 419: App Signature Upgrade
The APP object profile adopted by Vigor router will be treated as the APP signature. DrayTek will periodically upgrade versions for all of the APPs supported by Vigor router. However, it might be inconvenient for users to upgrade the APP version one by one. This feature is specially designed to offer a quick method to execute APP version upgrade.
Page 420 (Vigor router) automatically. Install Update –If the signature information stored on MyVigor server (myvigor.draytek.com or myvigoreu.draytek.com) is newer than the version used by the host (Vigor router), then the system will install the newest signature version information automatically. Mode Choose the condition to execute APP signature upgrade or send a notification.
Page 421: App Support List
APP Support List displays all of the applications with versions supported by Vigor router. They are separated with types of IM, P2P, Protocol and Others. Each tab will bring out different items with supported versions. Vigor2960 Series User’s Guide...
Page 422: Diagnostics
Refresh Renew the web page. Search Move the mouse cursor onto the box of Search. Click the mouse button and type the keyword inside the box. The system will display the records relating to the keyword. Vigor2960 Series User’s Guide...
Page 423 Display the distance to the target (usually counted in hops). It may be needed by routing daemons. Iface Display the direction of such route represented with LAN/WAN profile (starting from LAN/WAN profile to LAN/WAN profile). Display the information for each route with IPv6 protocol. Vigor2960 Series User’s Guide...
Page 424: Arp Cache Table
Click Diagnostics and click ARP Cache Table to view the content of the ARP (Address Resolution Protocol) cache held in the router. The table shows a mapping between an Ethernet hardware address (MAC Address) and an IP address. Vigor2960 Series User’s Guide...
Page 425 Display the IP address for different ARP cache. MAC Address Display the MAC address for different ARP cache. Display the user name of the client. User Vendor Display the vendor of the device. Clear Delete the selected profile. Vigor2960 Series User’s Guide...
Page 426 STALE-The neighbor is no longer to be reachable. Yet, until traffic is sent to the neighbor, no attempt should be made to verify its reachability. DELAY - The neighbor is no longer to be reachable, and the traffic has recently been sent to the neighbor. Vigor2960 Series User’s Guide...
Page 427 PROBE - The neighbor is no longer to be reachable, and unicast Neighbor Solicitation probes are being sent to verify reachability. Vigor2960 Series User’s Guide...
Page 428: Dhcp Table
Display the starting time that DHCP server is activated. End Date Display the end date that DHCP server is closed. End Time Display the end time that DHCP server is closed. Mac Address Display the MAC address of the static DHCP server. Vigor2960 Series User’s Guide...
Page 429 Display the IPv6 address of the static DHCP server. Start Time Display the starting time that DHCP server is activated. End Time Display the end time that DHCP server is closed. DUID Display the detailed information for DUID. Vigor2960 Series User’s Guide...
Page 430: Session Table
Display the destination IP address and port of remote host. Display the WAN interface used. Protocol Display the protocol of such session used. Display the actual state of the TCP connection. State Display how long the conntrack entry has to live. Vigor2960 Series User’s Guide...
Page 431: Mac Address Table
Clicking the Refresh button will update the displayed table starting from that or the closest next MAC Table match. Port Statistics Overview offers an overview of general traffic statistics for all connecting ports. Each item will be explained as follows: Vigor2960 Series User’s Guide...
Page 432 Display the number of the error occurred in data receiving (Error) and data sending. Filtered Receive Display the number of received frames filtered by the forwarding process. Port Detailed Statistics displays detailed statistics for WAN/LAN interface. Vigor2960 Series User’s Guide...
Page 433: Traffic Graph
Recent 24 Hours – Display the information of memory operation about recent 24 hours. Recent 7 Days – Display the information of memory operation about recent 7 days. Recent 4 Weeks – Display the information of memory Vigor2960 Series User’s Guide...
Page 434 24 hours. Recent 7 Days – Display the information of WAN operation about recent 7 days. Recent 4 Weeks – Display the information of WAN operation about recent 4 weeks. Below show a graphic for CPU: Vigor2960 Series User’s Guide...
Page 435: Web Console
Choose one of the LAN or WAN profile to be applied by such function. Start Click it to start the action of Ping or Trace Route. Stop Click it to terminate the action of Ping or Trace Route. Vigor2960 Series User’s Guide...
Page 436: Data Flow Monitor
24 Hours / Recent 7 Days Specify the interval of refresh time to obtain the latest status. Auto Refresh The information will update immediately when the Refresh button is clicked. Refresh Click it to renew the web page. Vigor2960 Series User’s Guide...
Page 437: User Status
VPN Connection Management and SSL Proxy for reference. Vigor router can be used to connect with many types of external devices. In order to control or manage the external devices conveniently, open External Devices to make detailed configuration. Vigor2960 Series User’s Guide...
Page 438: Product Registration
Note: Only DrayTek products can be detected by this function. Please refer to section 2.3 Register Vigor Router for more detailed information. Vigor2960 Series User’s Guide...
Page 439: Chapter 5: Trouble Shooting
Turn on the router. Make sure the ACT LED blink once per second and the correspondent LAN LED is bright. If not, it means that there is something wrong with the hardware status. Simply back to “1.3 Hardware Installation” to execute the hardware installation again. And then, try again. Vigor2960 Series User’s Guide...
Page 440 Open All Programs>>Getting Started>>Control Panel. Click Network and Sharing Center. In the following window, click Change adapter settings. Icons of network connection will be shown on the window. Right-click on Local Area Connection and click on Properties. Vigor2960 Series User’s Guide...
Page 441 Select Internet Protocol Version 4 (TCP/IP) and then click Properties. Select Obtain an IP address automatically and Obtain DNS server address automatically. Finally, click OK. Double click on the current used Mac OS on the desktop. Open the Application folder and get into Network. Vigor2960 Series User’s Guide...
Page 442 On the Network screen, select Using DHCP from the drop down list of Configure IPv4. Vigor2960 Series User’s Guide...
Page 443: Pinging The Router From Your Computer
Open the Application folder and get into Utilities. Double click Terminal. The Terminal window will appear. Type ping 192.168.1.1 and press [Enter]. If the link is OK, the line of “64 bytes from 192.168.1.1: icmp_seq=0 ttl=255 time=xxxx ms” will appear. Vigor2960 Series User’s Guide...
Page 444: Checking If The Isp Settings Are Ok Or Not
Open Online Status to check current network status. Be careful to check if the settings coming from your ISP have been typed correctly or not. Vigor2960 Series User’s Guide...
Page 445: Backing To Factory Default Setting If Necessary
Go to System Maintenance>> Reboot System on the web page. The following screen will appear. Choose the selection you need and click Reboot After few seconds, the router will return all the settings to the factory settings. Vigor2960 Series User’s Guide...
Page 446: Contacting Draytek
If the router settings are correct at all, and the router still does not connect to internet, please contact Draytek to help you for configuration. Also, if the router still cannot work correctly, please contact DrayTek for help. For any further questions, please send e-mail to support@draytek.com.

Draytek vigor2960 series User Manual

Chapter 1: Introduction

Chapter 2: Initial Configuration

Chapter 3: Application and Tutorial

Chapter 4: Advanced Configuration

Chapter 5: Trouble Shooting

Quick Links

Troubleshooting

Related Manuals for Draytek vigor2960 series

Summary of Contents for Draytek vigor2960 series

Table of Contents
