12. Drilling
13. Positioning
Turning
Operating Manual, 01/2015, 6FC5398-8CP40-5BA2

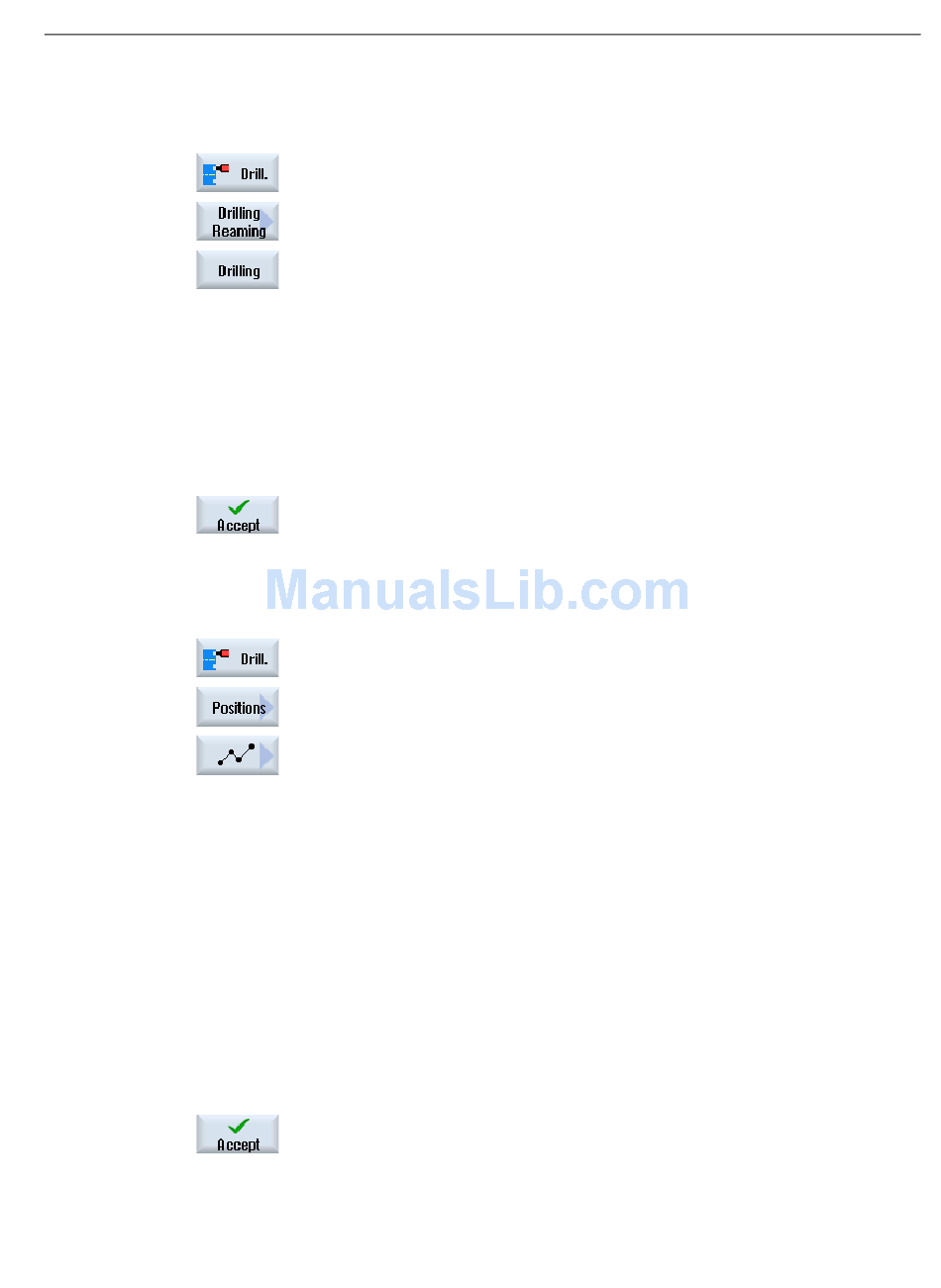

1. Press the "Drilling", "Drilling reaming" and "Drilling" softkeys.
The "Drilling" input window opens.
2. Enter the following technology parameters:
T Drill_D5
3. Enter the following parameters:
Machined surface
Drilling depth
Z1
DT
4. Press the "Accept" softkey.
1. Press the "Drilling", "Positions" and "Freely Programmable Positions"
softkeys.
The "Positions" input window opens.
2. Enter the following parameters:
Machined surface
Coordinate system
Z0
C0
L0
C1
L1
C2
L2
C3
L3
3. Press the "Accept" softkey.
8.18 Example: Standard machining
D1 F 0.1 mm/rev
Face C
Tip
10 inc
0 s
Face C
Polar
0 abs
0 abs
16 abs
90 abs
16 abs
180 abs
16 abs
270 abs
16 abs
Creating a ShopTurn program
V 50 m/min
