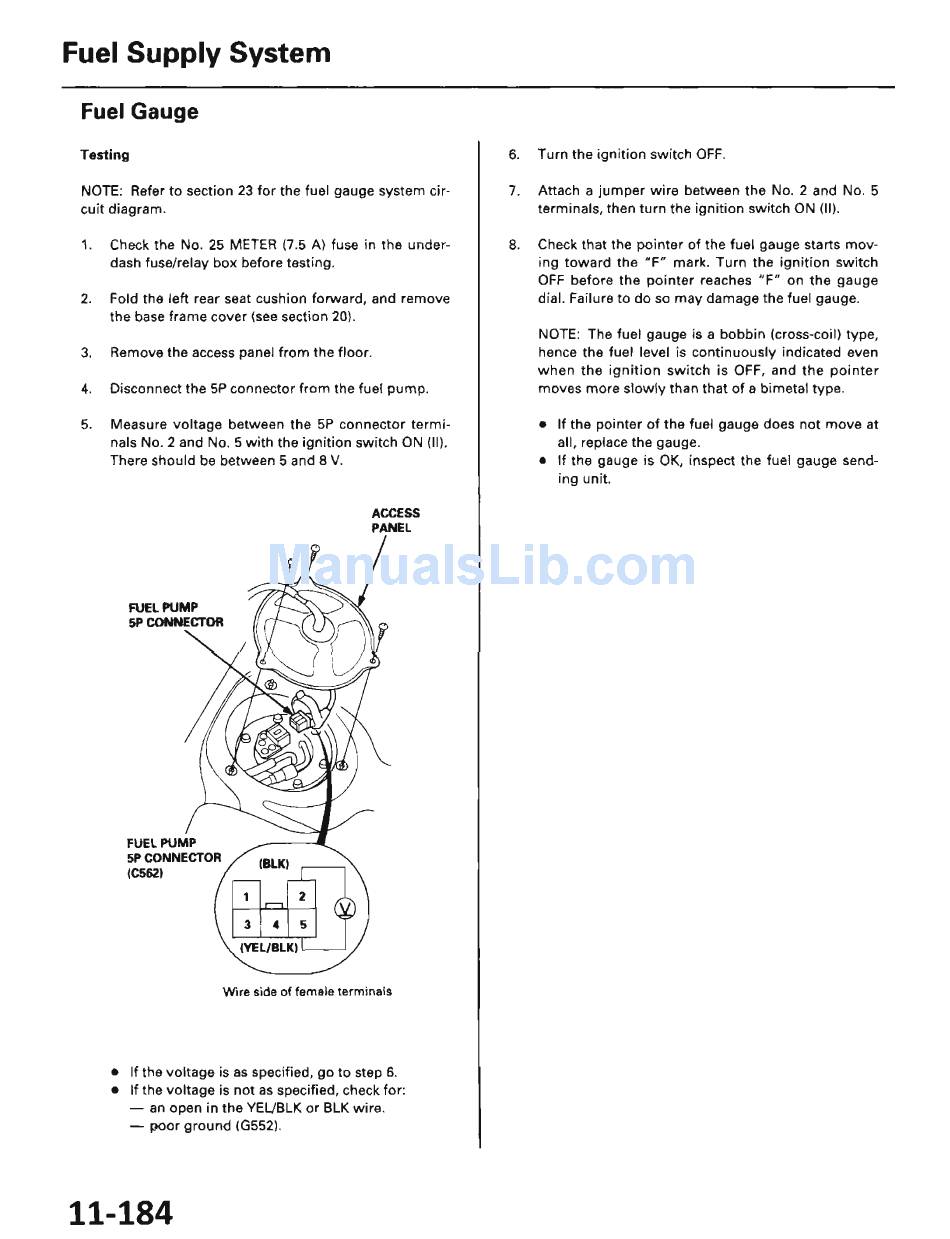

Fuel Supply System
Fuel Gauge
Te51ing
NOTE: Refer to section 23 for the fuel gauge system cir-
cuit diagram.
1. Check the No. 25 METER (7.5 A) fuse in the under-
dash fuse/relay box before testing.
2. Fold the left rear seat cushion forward, and remove
the base frame cover (see section 20).
3. Remove the access panel from the floor.
4. Disconnect the 5P connector from the fuel pump.
5. Measure voltage between the 5P connector termi-
nals No.2 and No. 5 with the ignition switch ON
(II).
There should be between 5 and 8 V.
FUEL PUMP
5P COMIECTOR
FUEL PUMP
5P CONNECTOR
IC5SZ1
IBLKI
ACCESS
PAr.EL
Wire side of female terminals
• If the voltage is as specified, go to step 6.
• If the voltage is not as specified, check for:
- an open in the YEI../BLK or BLK wire.
- poor ground (G552).
11-184
6. Turn the ignition switch OFF.
7. Attach a jumper wire between the No.2 and No.5
terminals, then turn the ignition switch ON
(II) .
8. Check that the pointer of the fuel gauge starts mov-
ing toward the "F" mark. Turn the ignition switch
OFF before the pointer reaches
"Fit
on the gauge
dial. Failure to do so may damage the fuel gauge.
NOTE: The fuel gauge is a bobbin (cross-coil) type,
hence the fuel level is continuously indicated even
when the ignition switch is OFF, and the pointer
moves more slowly than that of
a
bimetal type.
• If the pointer of the fuel gauge does not move at
all, replace the gauge.
• If the gauge is OK, inspect the fuel gauge send-
ing unit.
