Figure 3-19 Installing the built-in drive assembly
Step 7 Install built-in drives. For details, see
Step 8 Connect cables to the built-in drive module. For details, see
Step 9 On the iBMC WebUI, check whether the drives in the built-in drive assembly are normal. For
details, see the
----End

3.12 Removing a Riser Card Tray

Step 1 Wear an ESD wrist strap. For details, see
Step 2 Power off the server. For details, see
Step 3 Remove the power cables. For details, see
Step 4 Remove the server. For details, see
Step 5 Remove the chassis cover. For details, see

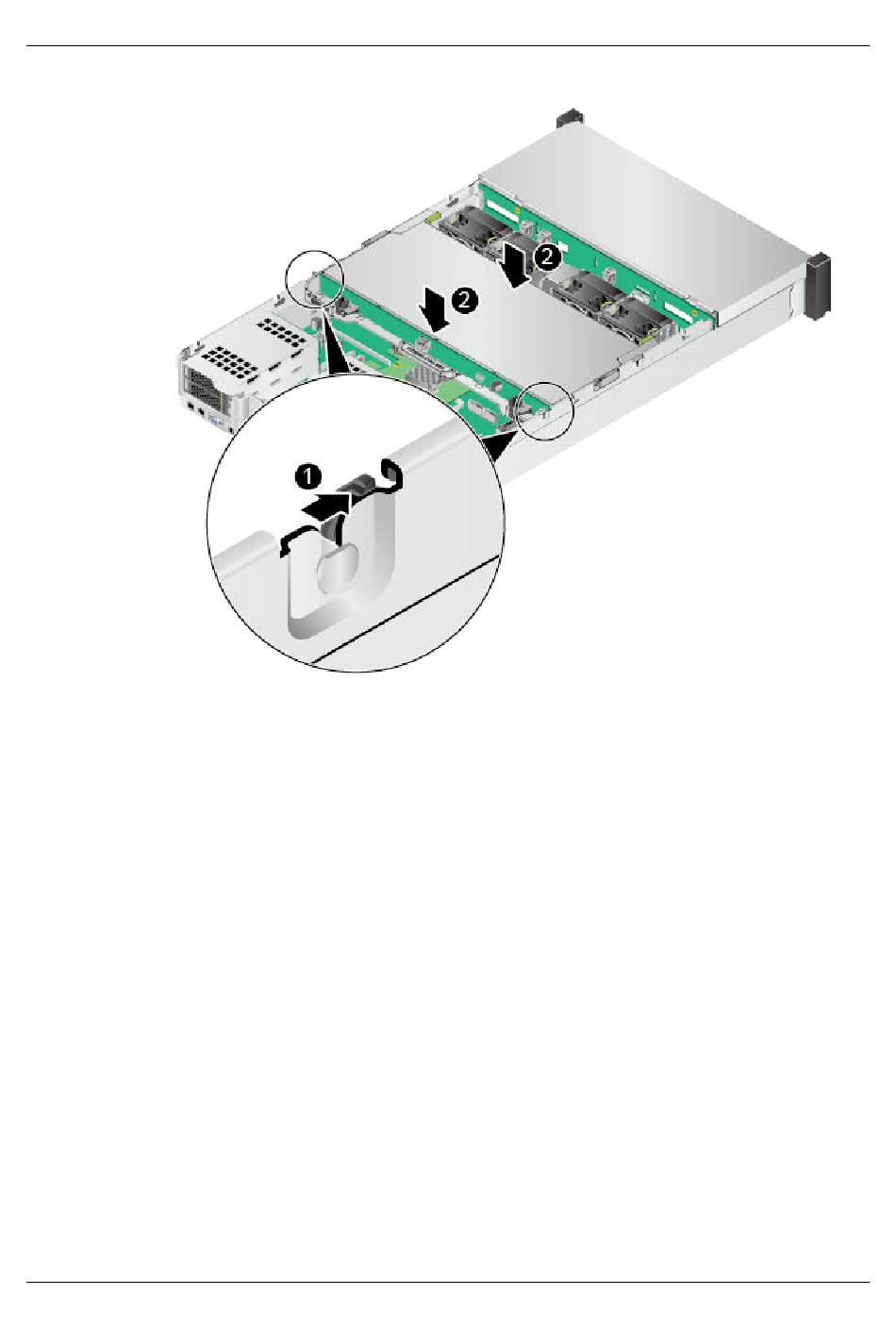

Step 6 Loosen the screw on the riser card tray and lift the riser card tray. See
3-21.
