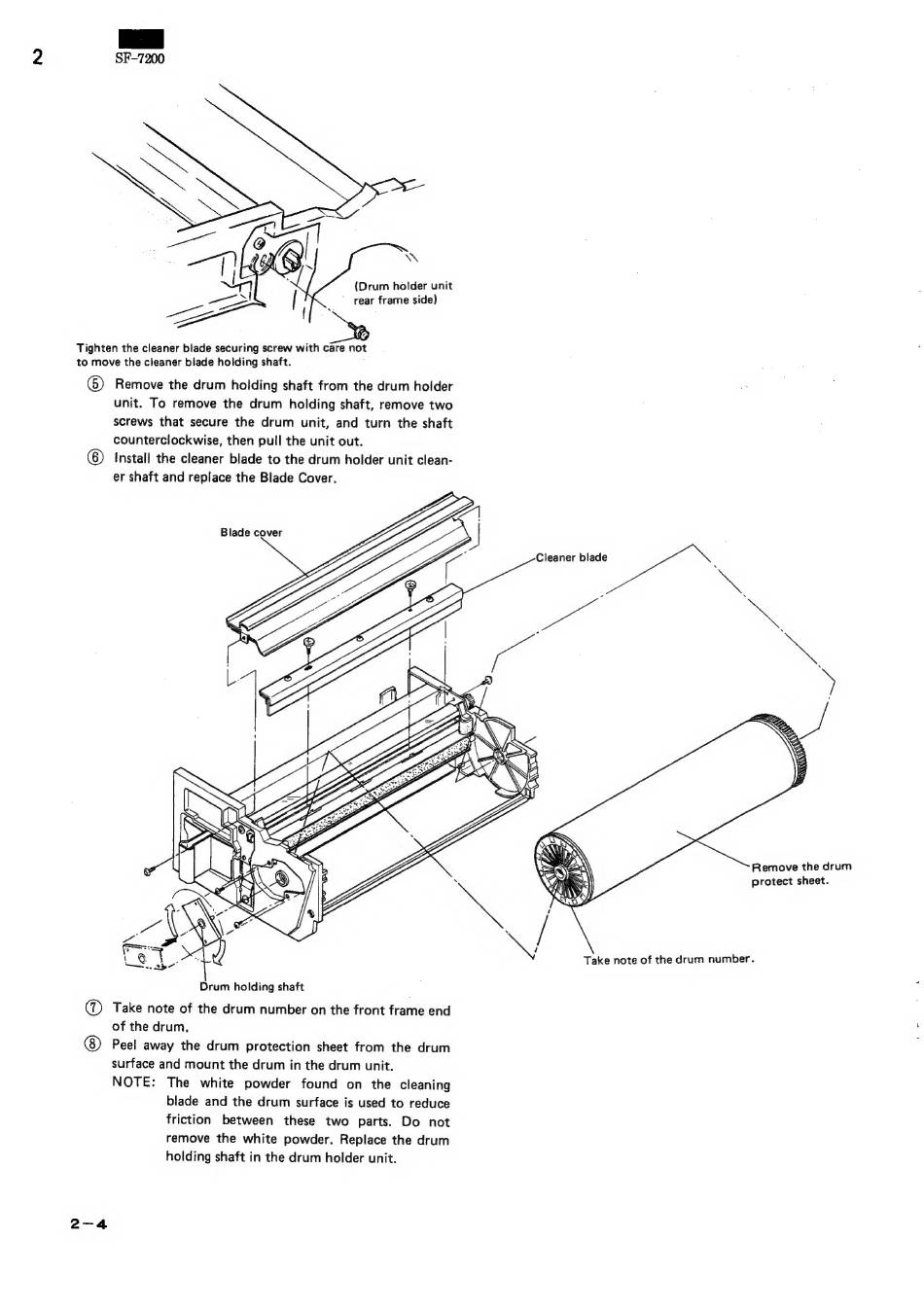

(Drum holder unit
rear frame side)
Tighten the cleaner blade securing screw with care not
to move the cleaner blade holding shaft.
:
(©) Remove the drum holding shaft from the drum hoider
unit. To remove the drum
holding shaft, remove two
screws that secure the drum unit, and turn the shaft
counterclockwise, then pull the unit out.
©) Install the cleaner blade to the drum holder unit clean-
er shaft and replace the Blade Cover.
Blade cover
Remove the drum
protect sheet.
Take note of the drum number.
Drum holding shaft
Peel away the drum protection sheet from the drum
surface and mount the drum in the drum unit.
