SF-7200
8

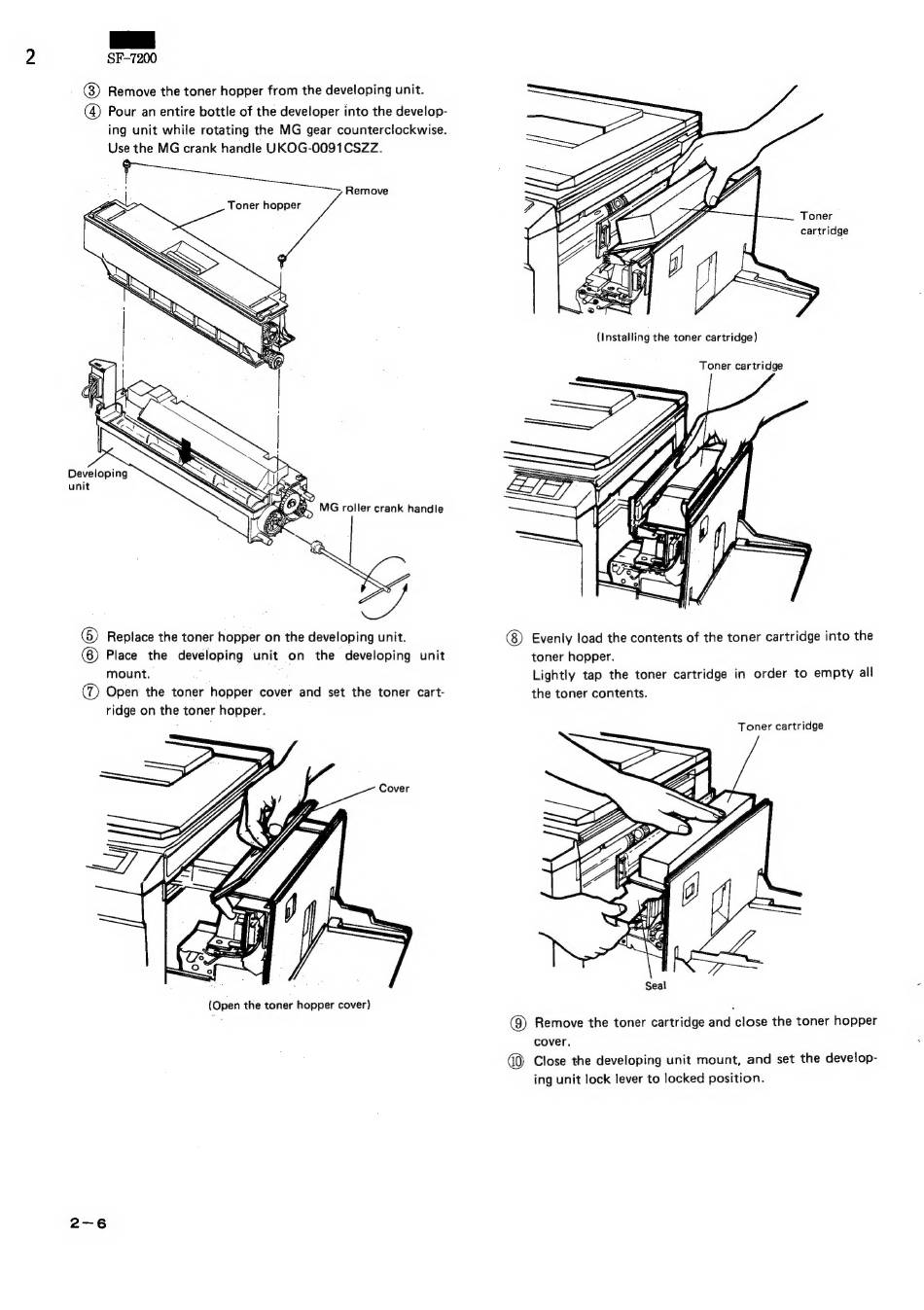

Remove the toner hopper from the developing unit.
@) Pour an entire bottle of the developer into the develop-
ing unit while rotating the MG gear counterclockwise.
Use the MG crank handle UKOG-0091CSZZ.
——
Toner hopper
Remove
Developing
unit
e)
MG roller crank handle
co
©
Replace the toner hopper on the developing unit.
(8) Place
the
developing
unit
on
the
developing
unit
mount.
( Open the toner hopper cover and set the toner cart-
ridge on the toner hopper.
(Open the toner hopper cover)
Toner
cartridge
(Installing the toner cartridge)
Toner cartridge
Evenly load the contents of the toner cartridge into the
toner hopper.
Lightly tap the toner cartridge in order to empty all
the toner contents.
Toner cartridge
Seal
@) Remove the toner cartridge and close the toner hopper
cover.
