Philips Semiconductors
WATCHDOG TIMER
Watchdog
Oscillator
PCLK
WDCLK after a
watchdog feed
sequence
PRE2
DECODE
PRE1
PRE0

Feed Sequence

The watchdog timer control register and the 8-bit down counter (Figure 13-3) are not directly loaded by the user. The user writes
to the WDCON and the WDL SFRs. At the end of a feed sequence, the values in the WDCON and WDL SFRs are loaded to the
control register and the 8-bit down counter. Before the feed sequence, any new values written to these two SFRs will not take
effect. To avoid a watchdog reset, the watchdog timer needs to be fed (via a special sequence of software action called the feed
sequence) prior to reaching an underflow.
To feed the watchdog, two write instructions must be sequentially executed successfully. Between the two write instructions, SFR
reads are allowed, but writes are not allowed. The instructions should move A5H to the WFEED1 register and then 5AH to the
WFEED2 register. An incorrect feed sequence will cause an immediate watchdog reset. The program sequence to feed the
watchdog timer is as follows:
CLR EA
MOV WFEED1,#0A5h
MOV WFEED2,#05Ah
SETB EA
This sequence assumes that the P89LPC901/902/903 interrupt system is enabled and there is a possibility of an interrupt request
occuring during the feed sequence. If an interrupt was allowed to be serviced and the service routine contained any SFR writes,
it would trigger a watchdog reset. If it is known that no interrupt could occur during the feed sequence, the instructions to disable
and re-enable interrupts may be removed.
In watchdog mode (WDTE = 1), writing the WDCON register must be IMMEDIATELY followed by a feed sequence to load the
WDL to the 8-bit down counter, and the WDCON to the shadow register. If writing to the WDCON register is not immediately
followed by the feed sequence, a watchdog reset will occur.
For example: setting WDRUN = 1:
MOV ACC,WDCON
SETB ACC.2
MOV WDL,#0FFh
CLR EA
MOV WDCON,ACC
2003 Dec 8
÷32 ÷2
÷32 ÷64
000
001
010
011
100
101
110
111

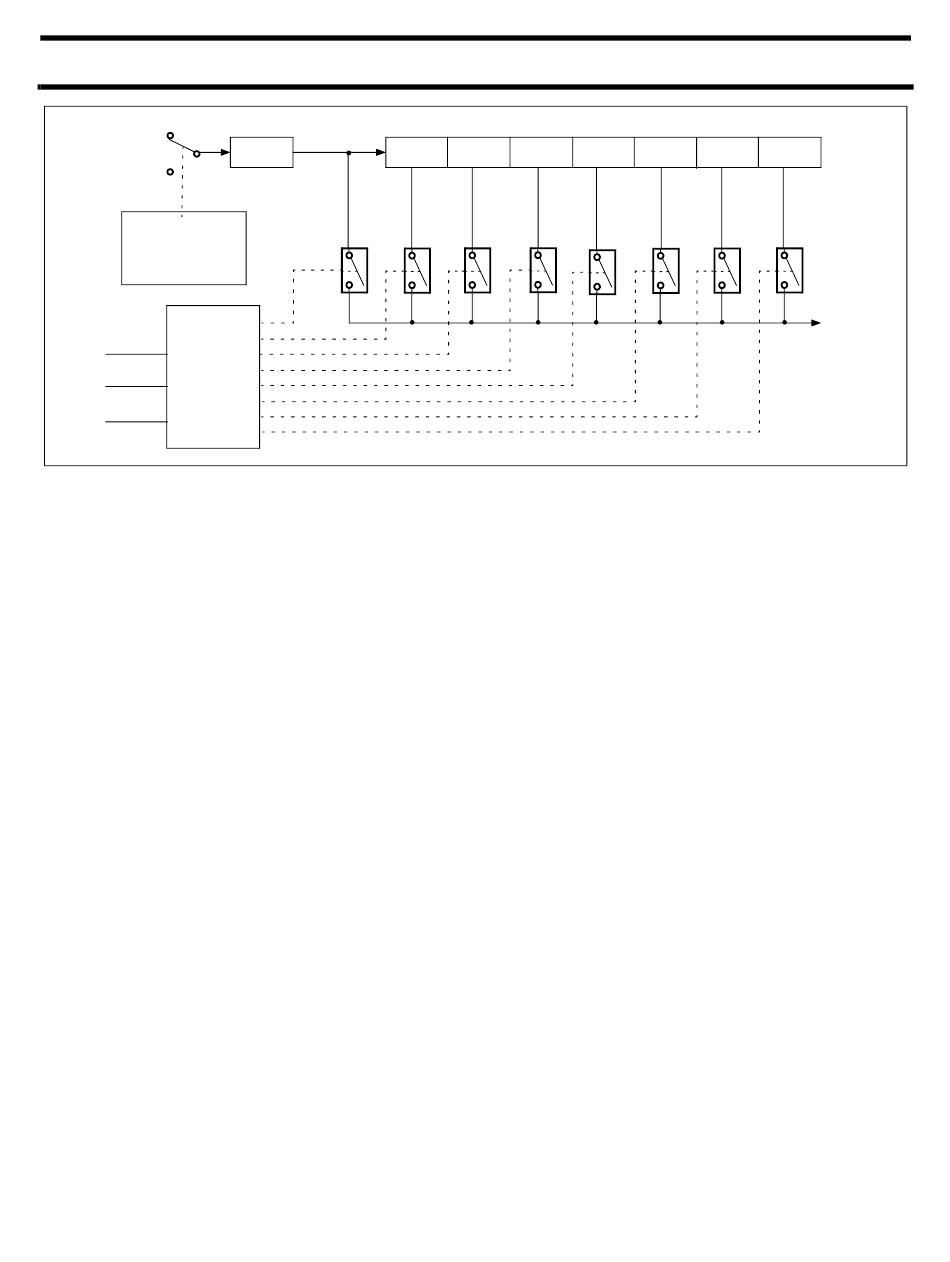

Figure 13-1: Watchdog Prescaler
; disable interrupt
; do watchdog feed part 1
; do watchdog feed part 2
; enable interrupt
; get WDCON
; set WD_RUN=1
; New count to be loaded to 8-bit down counter
; disable interrupt
; write back to WDCON (after the watchdog is enabled, a feed must occur
; immediately)
÷2 ÷2 ÷2
÷128 ÷256 ÷512
86
User's Manual - Preliminary -
P89LPC920/921/922
÷2 ÷2 ÷2
÷1024 ÷2048 ÷4096
TO
WATCHDOG
DOWN
COUNTER
(after one
prescaler
count delay
