6.8.2. Routing and connecting low voltage cables
For the project-specific cable connections, see "Appendix D – Wiring diagrams". For a
description of the different cable entry types, see Section 6.6, "Cable entries", page 95.
6.8.2.1. WCU - auxiliary power and space heater cable
For an overview of the components in a WCU cabinet, see Section 3.5, "Water cooling unit
(WCU)", page 47.
The following cables are typically connected to the WCU.
–
3-phase power supply auxiliary cable (always)
–
Space heater converter cable (optional)
–
Space heater motor cable (optional)
–
Aux power supply status cable (potential free contact)
–
Process interface - External cooling control cables (optional)
For the project-specific cable connections, see "Appendix D – Wiring diagrams".
The cables are routed into the WCU cabinet either through a top cable entry or bottom cable

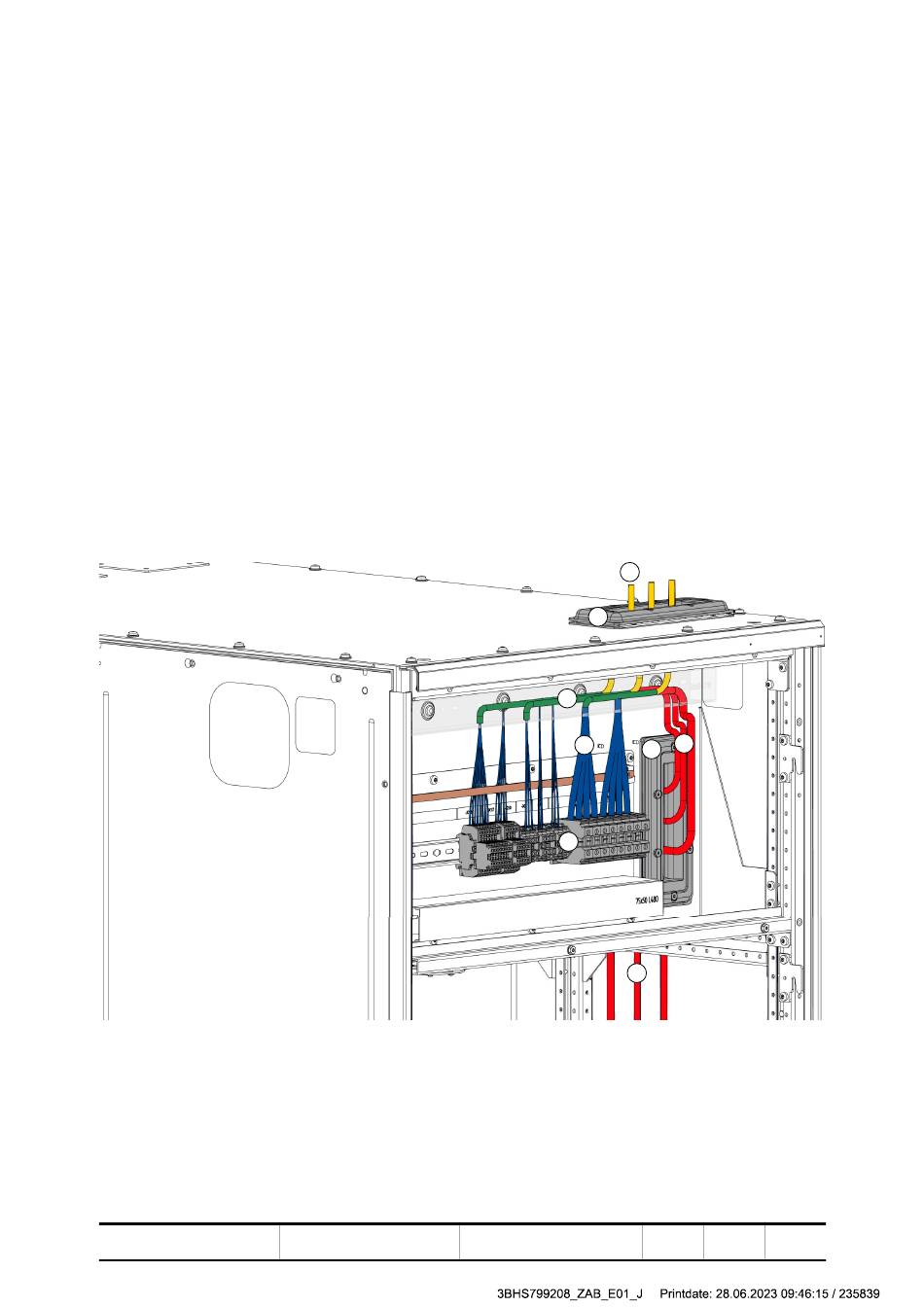

entry. Fig. 73 shows both cable routing options in the WCU control compartment.
Key:
(1)
Top cable routing
(2)
Top cable entry (Roxtec frame shown)
(3)
Common cable routing
(4)
Example cables
Fig. 73. Cable routing options to WCU800 control compartment
