12.3 Path Protection
Figure 12-16
In the
OC3 IR 4 1310 cards. Eight free slots exist. They can be provisioned with other cards or left empty.
Figure 12-17
Figure 12-17
Cisco ONS 15454 Reference Manual, R8.5
12-18

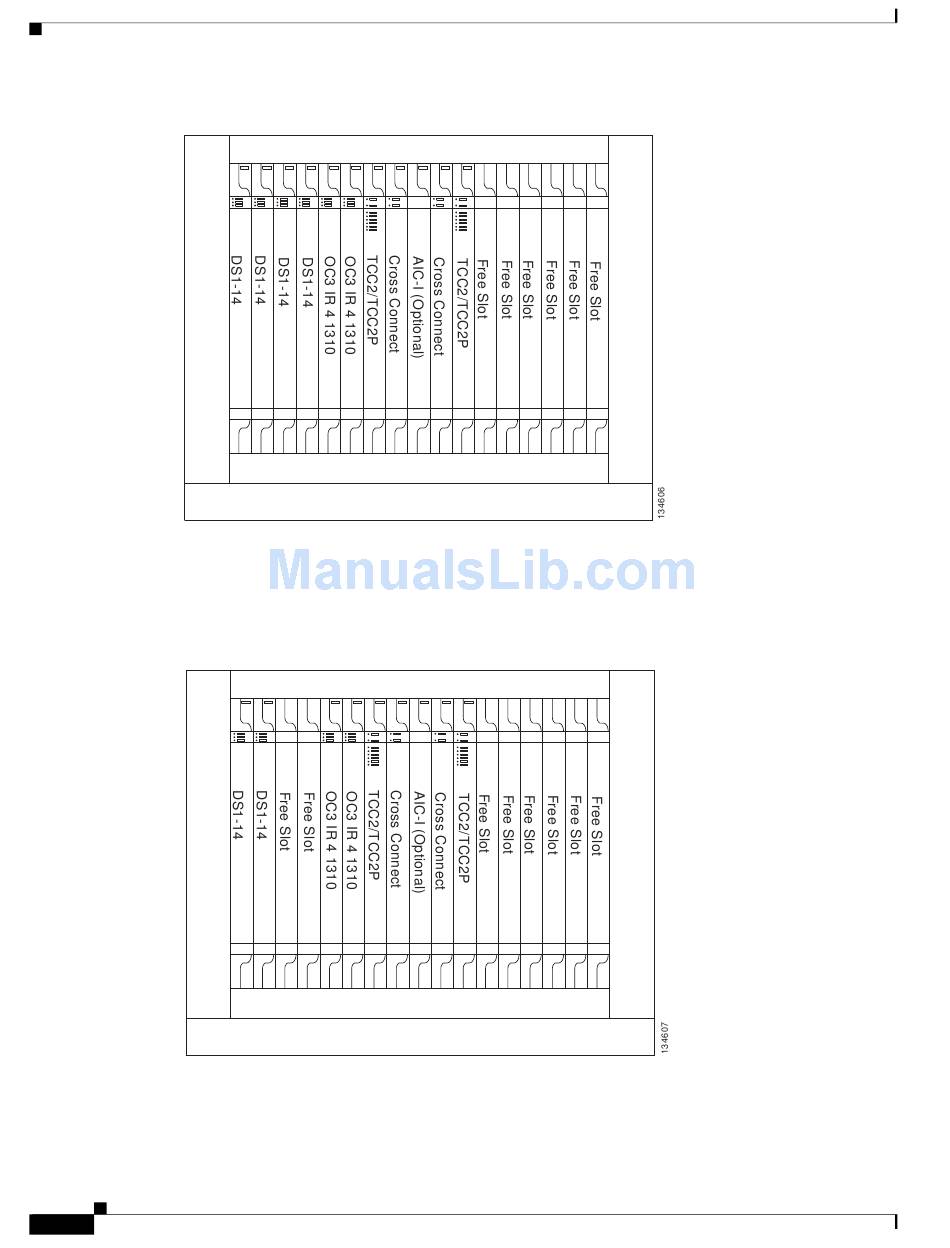

Layout of Node ID 0 in the OC-3 Path Protection Example in
Figure 12-15 on page 12-17
shows the shelf assembly setup for this configuration example.
Layout of Node IDs 1 to 3 in the OC-3 Path Protection Example in
example, Nodes IDs 1 to 3 each contain two DS1-14 cards and two
Chapter 12 SONET Topologies and Upgrades
Figure 12-15
Figure 12-15
