12.2.4 BLSR Application Example
Figure 12-9
Figure 12-10
configuration, an additional eight DS-3s at Node IDs 1 and 3 can be activated. An additional four DS-3s
can be added at Node 4, and ten DS-3s can be added at Node 2. Each site has free slots for future traffic
needs.
Figure 12-10
Cisco ONS 15454 Reference Manual, R8.5
12-12

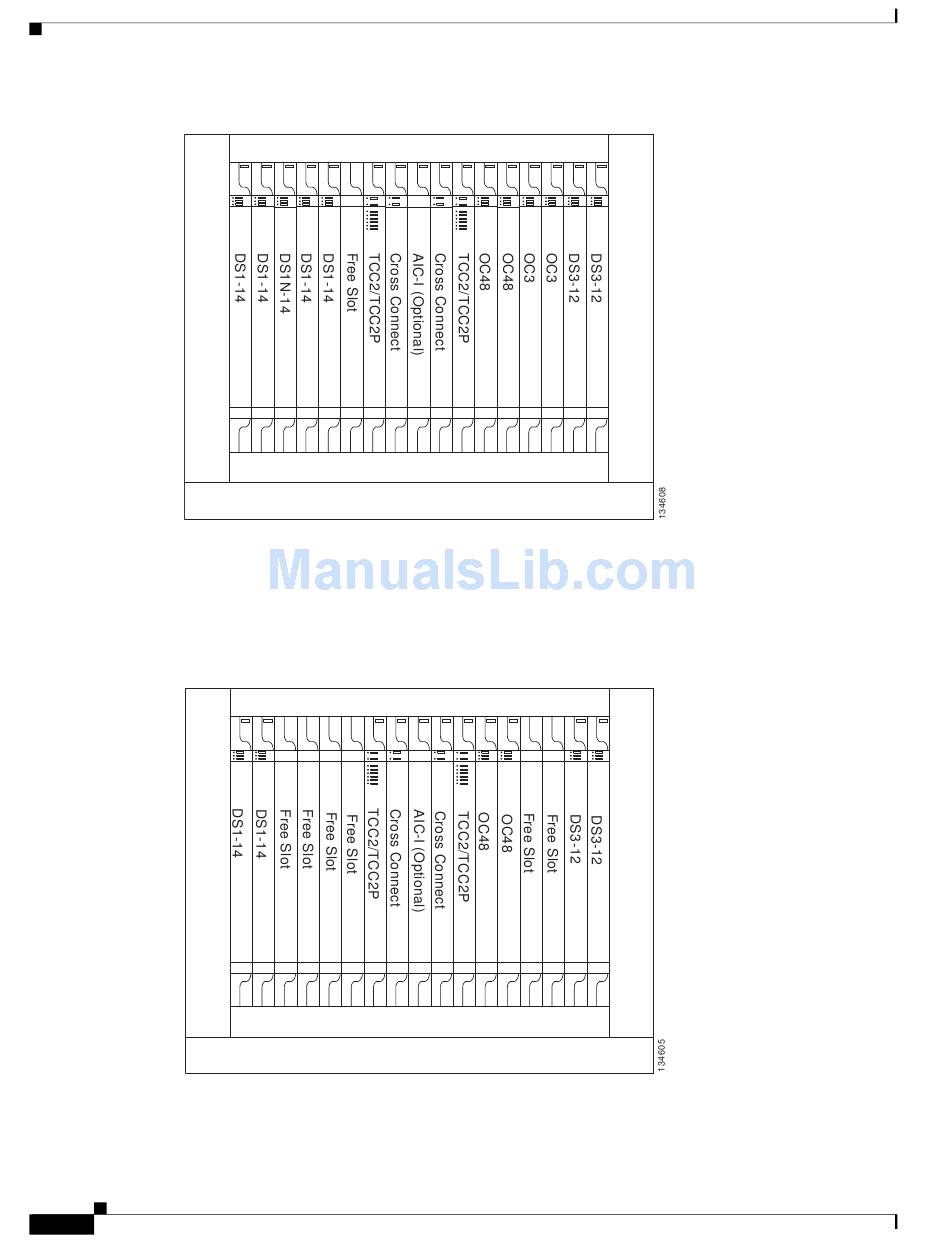

Shelf Assembly Layout for Node 0 in
shows the shelf assembly layout for the remaining sites in the ring. In this BLSR
Shelf Assembly Layout for Nodes 1 to 4 in
Chapter 12 SONET Topologies and Upgrades
Figure 12-8
Figure 12-8
78-18106-01
