2.5.1 XC10G Functionality

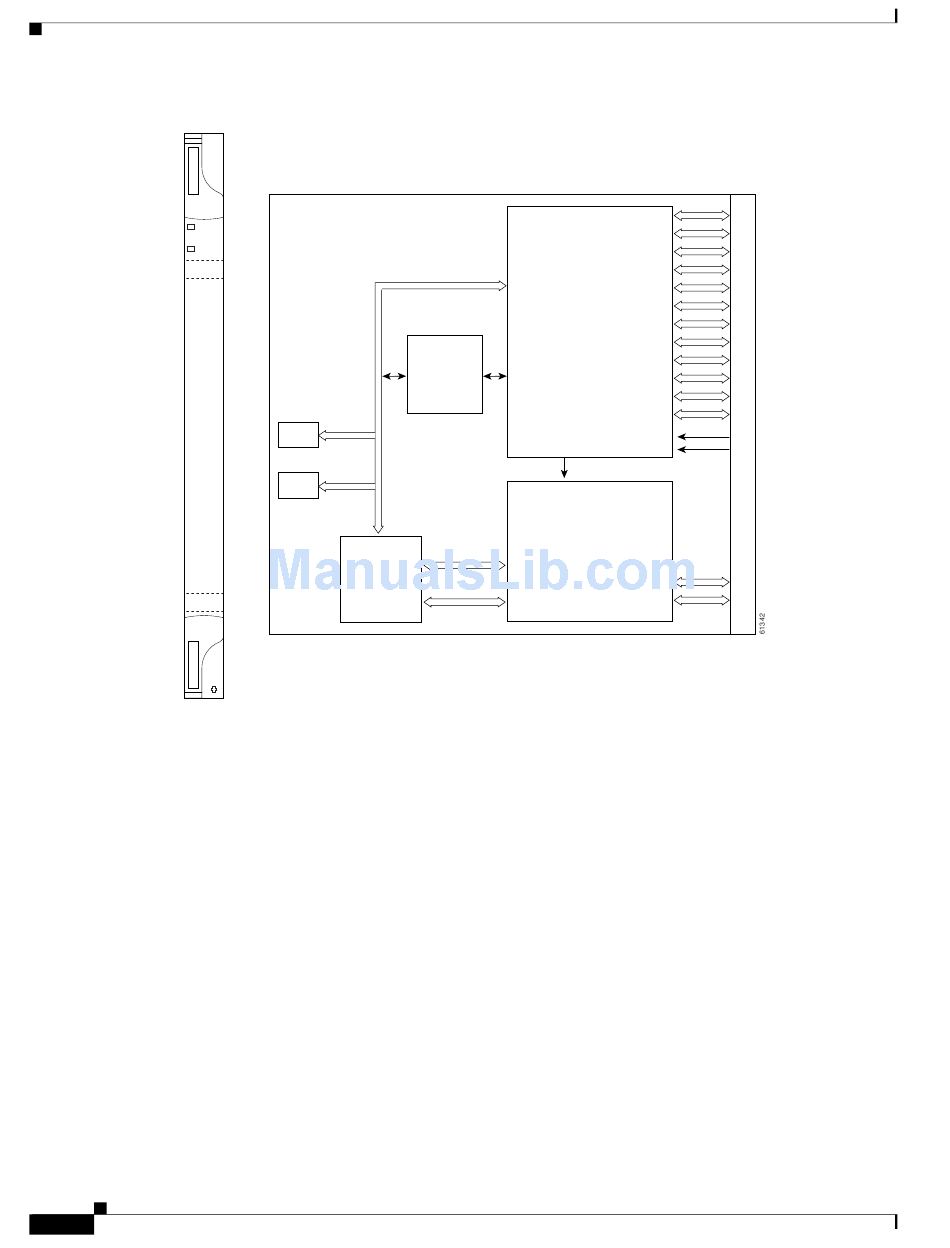

Figure 2-5
XC10G
FAIL
ACT/STBY
2.5.1 XC10G Functionality
The XC10G card manages up to 672 bidirectional VT1.5 ports and 1152 bidirectional STS-1 ports. The
TCC2/TCC2P cards assign bandwidth to each slot on a per STS-1 or per VT1.5 basis.
Two cross-connect cards, installed in Slots 8 and 10, are required to operate the ONS 15454. You can
establish cross-connect (circuit) information through the CTC. The cross-connect card establishes the
proper internal cross-connect information and sends the setup information to the cross-connect card.
The XC10G card provides:
•
•
•
•
•
•
Cisco ONS 15454 Reference Manual, R8.5
2-20
XC10G Faceplate and Block Diagram
FLASH
RAM
uP
1152 STS bidirectional ports
576 STS bidirectional cross-connects
672 VT1.5 ports via 24 logical STS ports
336 VT1.5 bidirectional cross-connects
Nonblocking at STS level
STS-1/3c/6c/12c/48c/192c cross-connects
uP Interface
Cross-Connect
Matrix
VT
Cross-Connect
Matrix
TCCA
uP Interface
ASIC
SCL Link
Chapter 2 Common Control Cards
Line 1
Line 2
Line 3
Line 4
Span 1
Span 2
Span 3
Span 4
Line 5
B
Line 6
a
Line 7
c
k
Line 8
p
Ref Clk A
l
a
n
Ref Clk B
e
Main SCL
Protect
SCL
