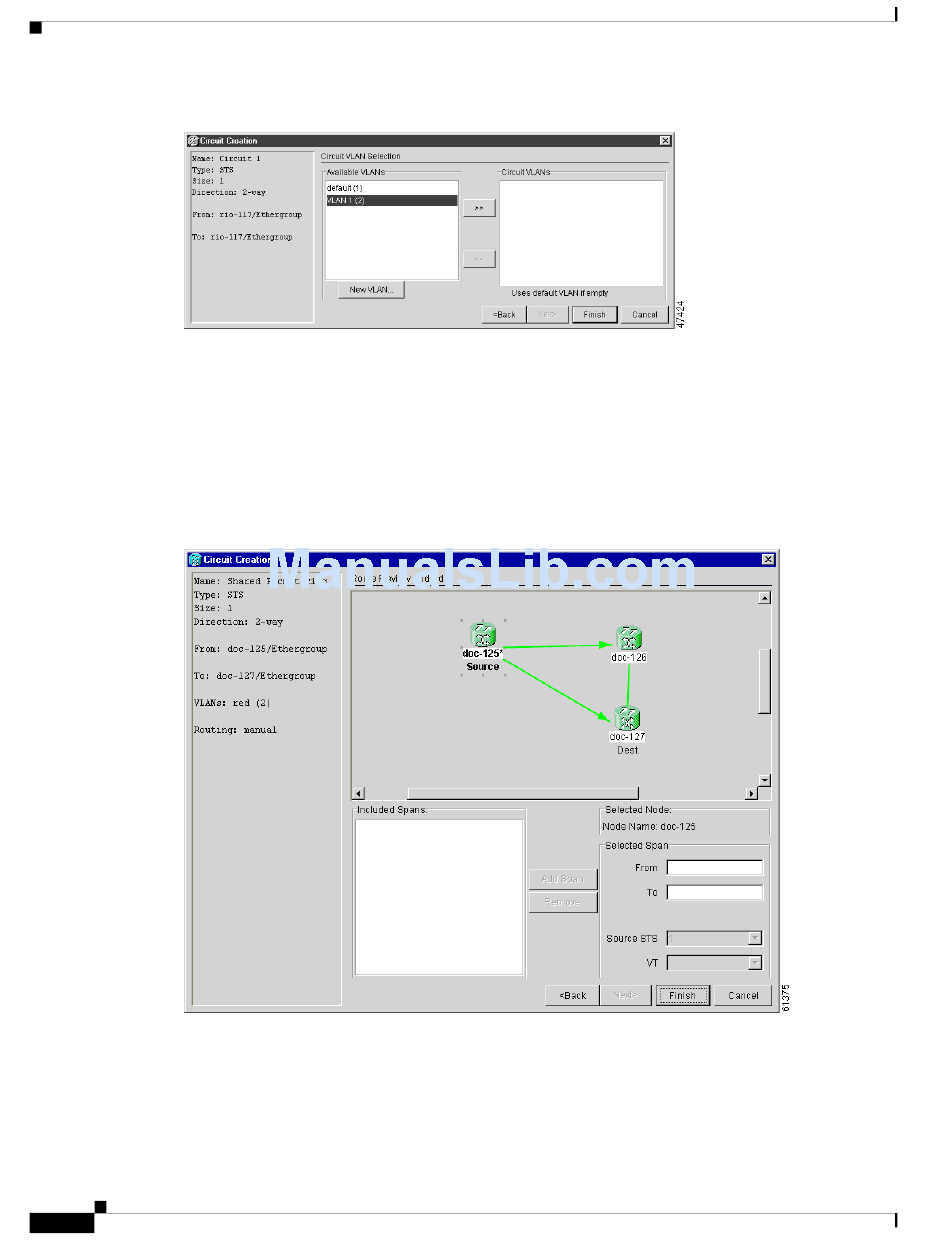

Figure 9-11 Selecting VLANs

Highlight the VLAN name and click the >> tab to move the VLAN(s) from the Available VLANs
e.
column to the Circuit VLANs column
By moving the VLAN from the Available VLANs column to the Circuit VLANs column, all the VLAN
traffic is forced to use the shared packet ring circuit you created.
Step 22 Click Next.
Step 23 Uncheck the Route Automatically checkbox and click Next.

Figure 9-12 Adding a span

Click either span (green arrow) leading from the source node
Step 24
The span turns white.
Step 25 Click Add Span.
The span turns blue and adds the span to the Included Spans field.
Step 26 Click the node at the end of the blue span.
