Performance Monitoring for Electrical Cards
Table 8-20 Far-End CP-bit Path PMs for the DS3-12E and DS3N-12E Cards
Parameter
DS3 CVCP-P
DS3 ESCP-P
DS3 SASCP-P
DS3 SESCP-P
DS3 UASCP-P
8.5.5 DS3XM-6 Card Performance Monitoring Parameters
Figure 8-19
detected on the ASICs produce performance monitoring parameters for the DS3XM-6 card.
Figure 8-19 Monitored signal types for the DS3XM-6 card
ONS 15454
Cisco ONS 15454 Installation and Operations Guide
8-28
Definition
Code Violation (CVCP-PFE) is a parameter that is counted when the three
far-end block error (FEBE) bits in a M-frame are not all collectively set to
1.
Errored Second (ESCP-PFE) is a count of one-second intervals containing
one or more M-frames with the three FEBE bits not all collectively set to
1 or one or more far-end SEF/AIS defects.
SEF/AIS Second (SASCP-PFE) is a count of one-second intervals
containing one or more far-end SEF/AIS defects.
Severely Errored Second (SESCP-PFE) is a count of one-second intervals
containing one or more 44 M-frames with the three FEBE bits not all
collectively set to 1 or one or more far-end SEF/AIS defects.
Unavailable Second (UASCP-PFE) is a count of one-second intervals
when the DS3 path becomes unavailable. A DS3 path becomes
unavailable when ten consecutive far-end CP-bit SESs occur. The ten
CP-bit SESs are included in unavailable time. Once unavailable, the DS3
path becomes available when ten consecutive seconds occur with no
CP-bit SESs. The ten seconds with no CP-bit SESs are excluded from
unavailable time.

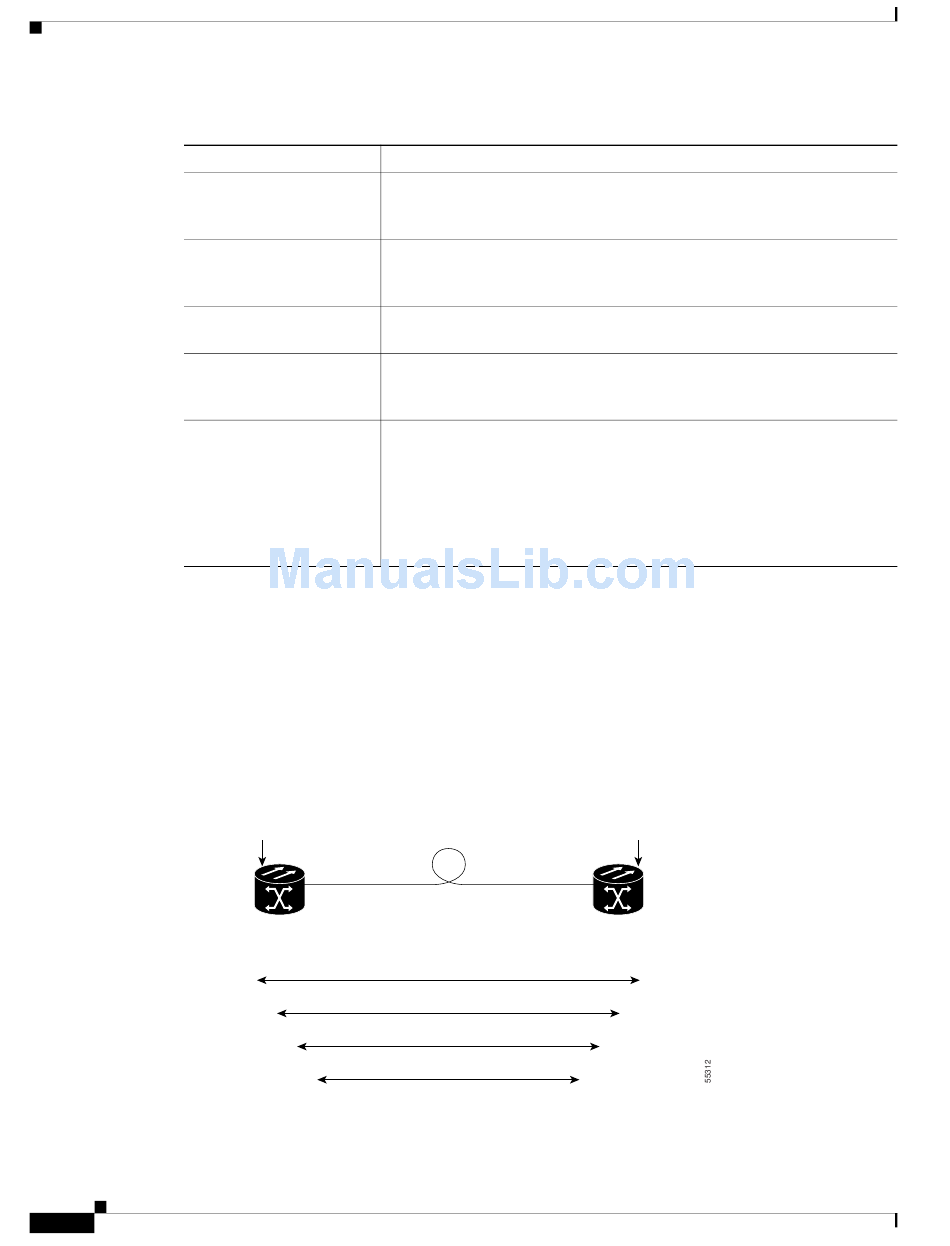

shows the signal types that support far-end PMs.
Near End
Muxed DS3 Signal
DS3XM
OC48
DS1 Path (DS1 XX) Far End PMs Not Supported
DS3 Path (DS3 XX) Far End PMs Supported
VT Path (XX-V) Far End PMs Supported
STS Path (STS XX-P) Far End PMs Not Supported
Figure 8-20
Far End
Muxed DS3 Signal
Fiber
OC48
Chapter 8
Performance Monitoring
shows where overhead bytes
ONS 15454
DS3XM
