Working with the CTC Window

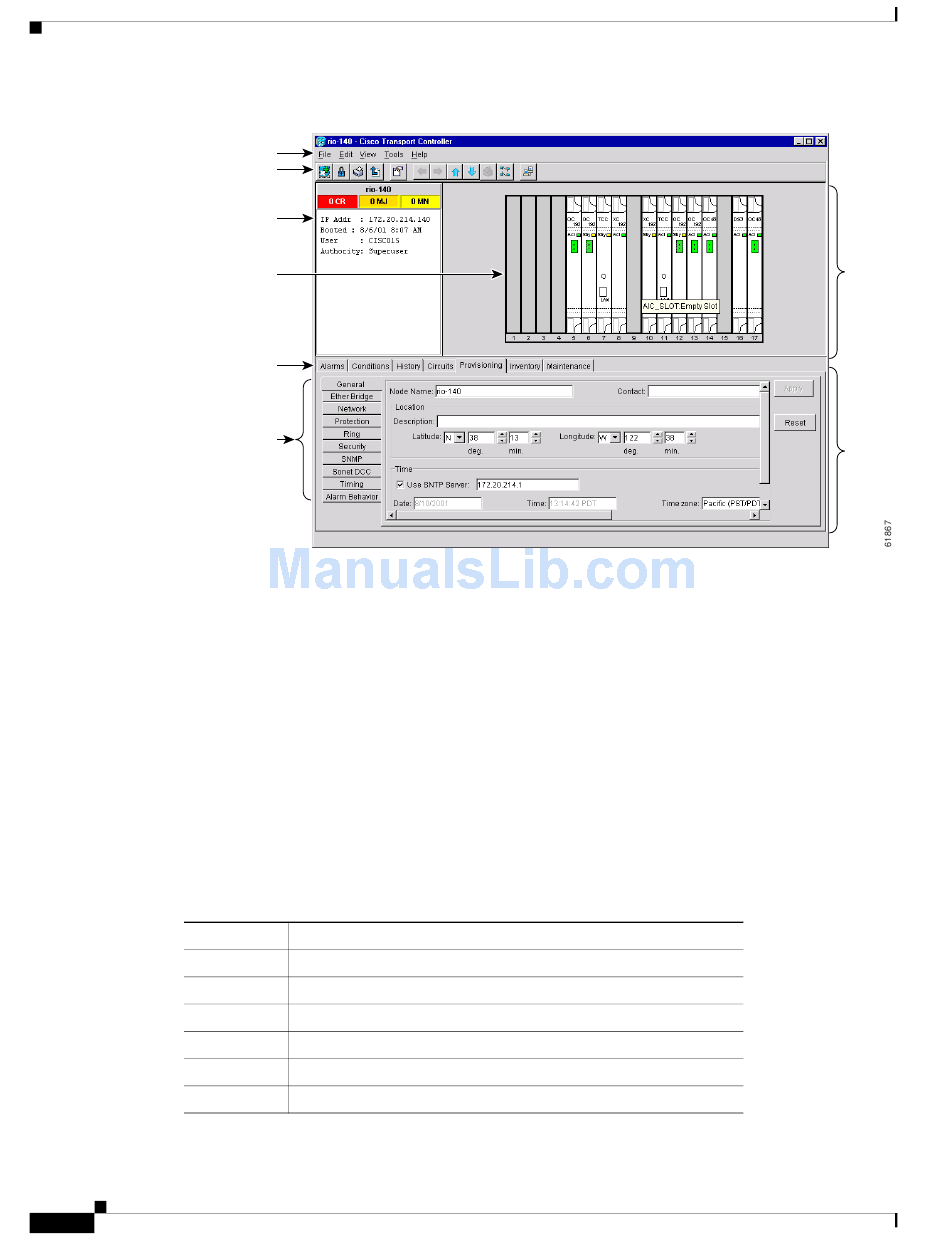

Figure 2-5
Menu bar
Status area
Graphic area

2.6.1 Node View

The CTC node view, shown in
The login node is the first node displayed, and it is the "home view" for the session. Node view allows
you to view and manage one ONS 15454 node. The status area shows the node name, IP address, session
boot date and time, number of critical (CR), major (MJ), and minor (MN) alarms, the name of the current
logged-in user, and security level of the user.

2.6.1.1 CTC Card Colors

The graphic area of the CTC window depicts the ONS 15454 shelf assembly. The colors of the cards in
the graphic reflect the real-time status of the physical card and slot
Table 2-4
Card Color
Grey
Violet
White
Yellow
Orange
Red
Cisco ONS 15454 Installation and Operations Guide
2-14
CTC window elements in the node view (default login view)
Tool bar
Tabs
Subtabs
Node View Card Colors
Status
Slot is not provisioned; no card is installed
Slot is provisioned; no card is installed
Slot is provisioned; a functioning card is installed
Slot is provisioned; a minor alarm condition exists
Slot is provisioned; a major alarm condition exists
Slot is provisioned; a critical alarm exists
Figure 2-5, is the first view displayed after you log into an ONS 15454.
Chapter 2 Software Installation
(Table 2-4).
November 2001
Top
pane
Bottom
pane
