5.11 HDD

Prints to Note When Replacing
the HDD Unit
1. Take care to avoid static dam-
age that can occur when replac-
ing the HDD unit.
2. Take care not to subject the
HDD unit to impact.

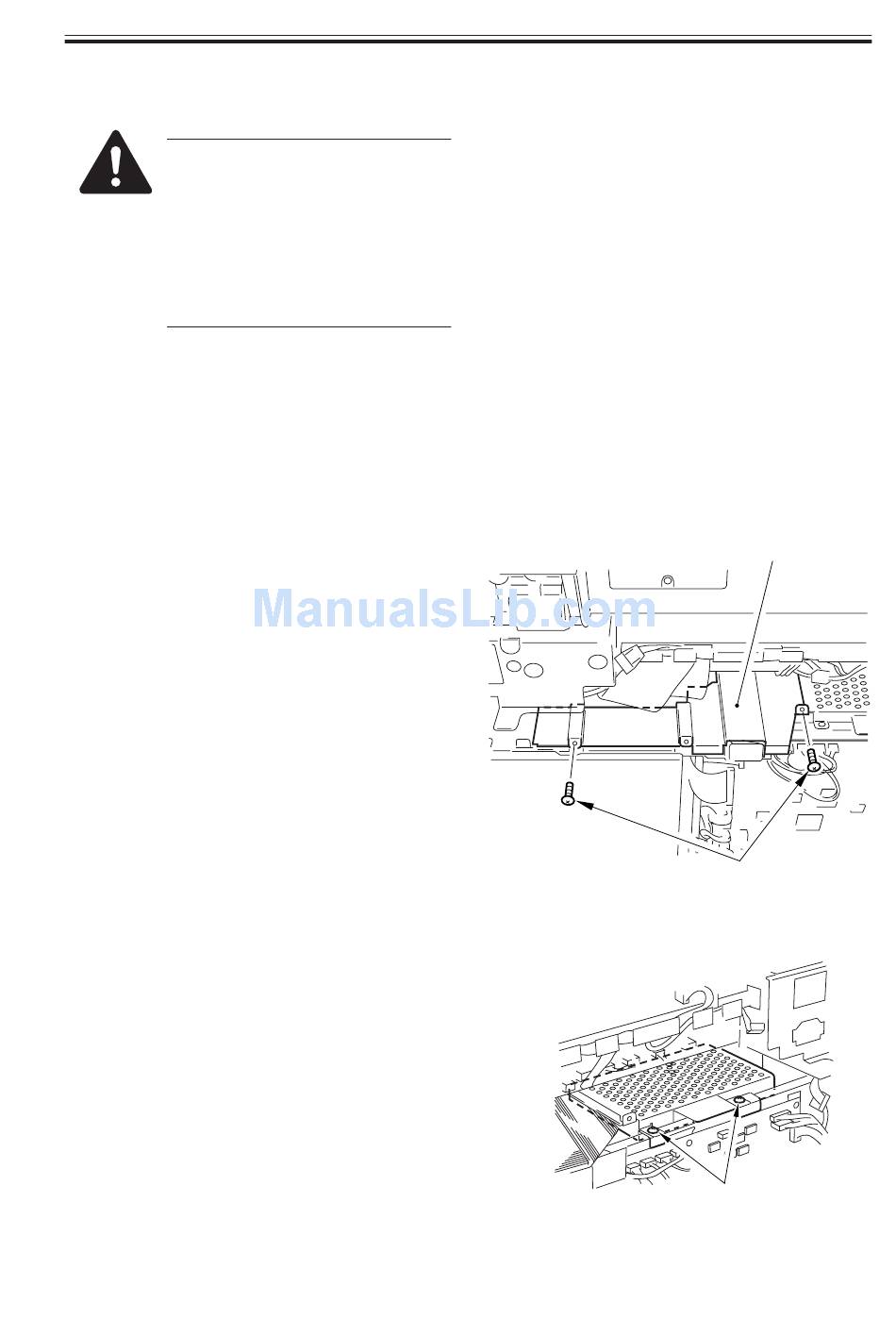

1) Remove the reader rear cover.
2) Remove the reader unit fixing plate
(rear).
3) Remove the rear upper cover. (Keep the
hard disk cover intact when doing so.)
4) Remove the main controller cover.
(F07-504-03)
5) Remove the two mounting screws [1],
and remove the hard disk cable retain-
ing plate [2].
6) Remove the two mounting screws [3].
COPYRIGHT © 2001 CANON INC. 2000 2000 2000 2000 CANON iR5000i/iR6000i REV.0 JUNE 2001
CHAPTER 7 EXTERNALS AND CONTROLS
F07-511-01
F07-511-02
[2]
[1]
[3]
7-51 P
