CHAPTER 4 IMAGE FORMATION SYSTEM

4. Hopper/Developing Assembly

4.1 Outline

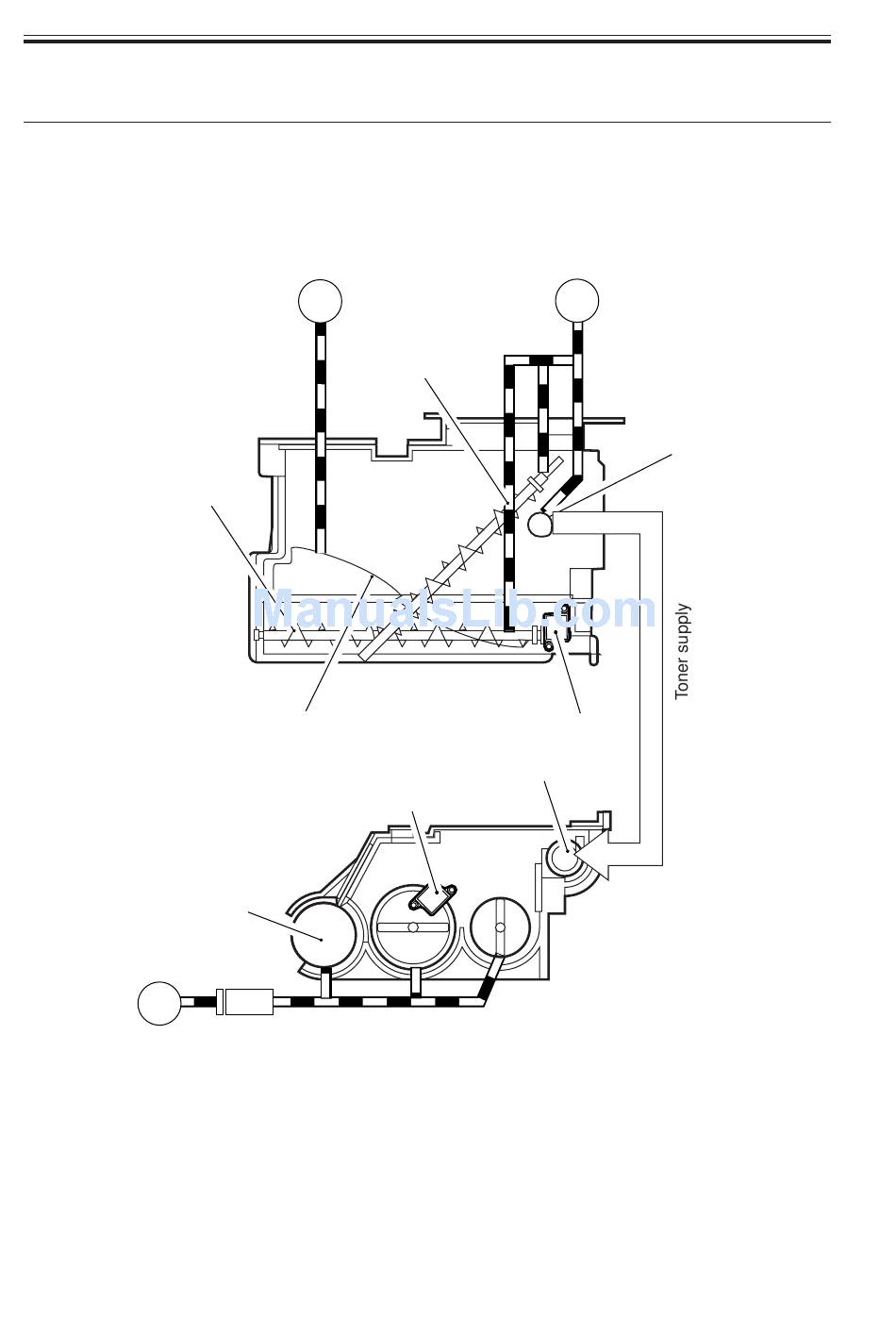

The following component parts are associated with the hopper/developing assembly:
Feed screw
Developing cylinder
M1
Main motor
4-36 P
Hopper stirring motor
M9
Angled feed screw
Stirring rod
Developing assembly toner sensor (TS1)
CL1
Developing assembly clutch
F04-401-01
COPYRIGHT © 2001 CANON INC.
Hopper supply motor
M10
Hopper toner
sensor (TS2)
Toner feed screw
2000 2000 2000 2000 CANON iR5000i/iR6000i REV.0 JUNE 2001
Toner feed screw
