CHAPTER 4 IMAGE FORMATION SYSTEM

7.3 Process Unit

7.3.1 Removing the Process Unit

1) Open the front cover.
2) Remove the developing assembly. (See
p. 4-73P.)
3) Remove the hopper assembly. (See p. 4-
78P.)
4) Remove the primary charging cooling
fan. (See p.7-36P)

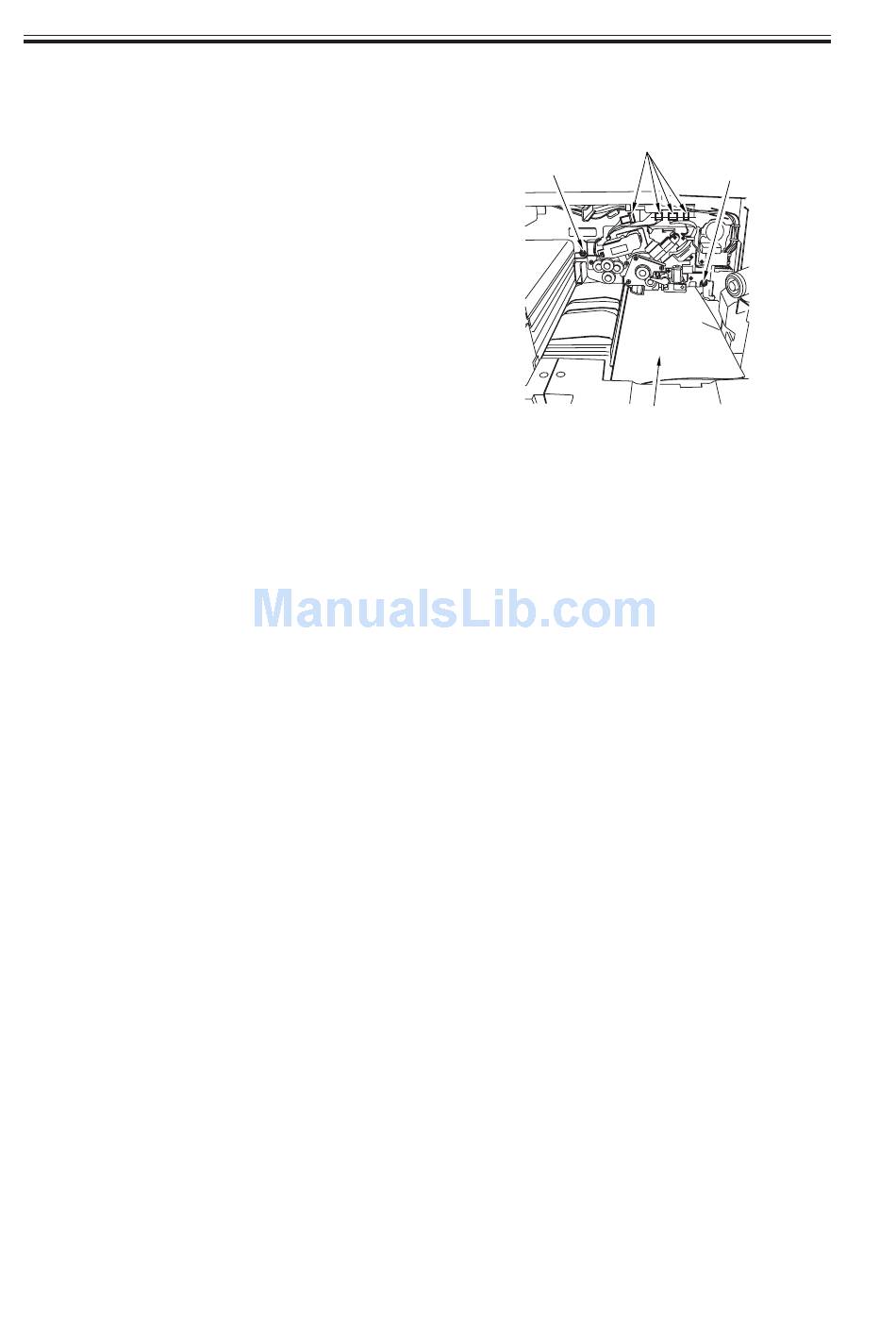

5) Slide out the fixing/feeding assembly,
and place the drum protective sheet [1]
on the registration roller assembly.
6) Disconnect the four connectors [2], and
remove the two mounting screws [3].
4-54 P
COPYRIGHT © 2001 CANON INC.
[3]
F04-703-01
2000 2000 2000 2000 CANON iR5000i/iR6000i REV.0 JUNE 2001
[2]
[3]
[1]
