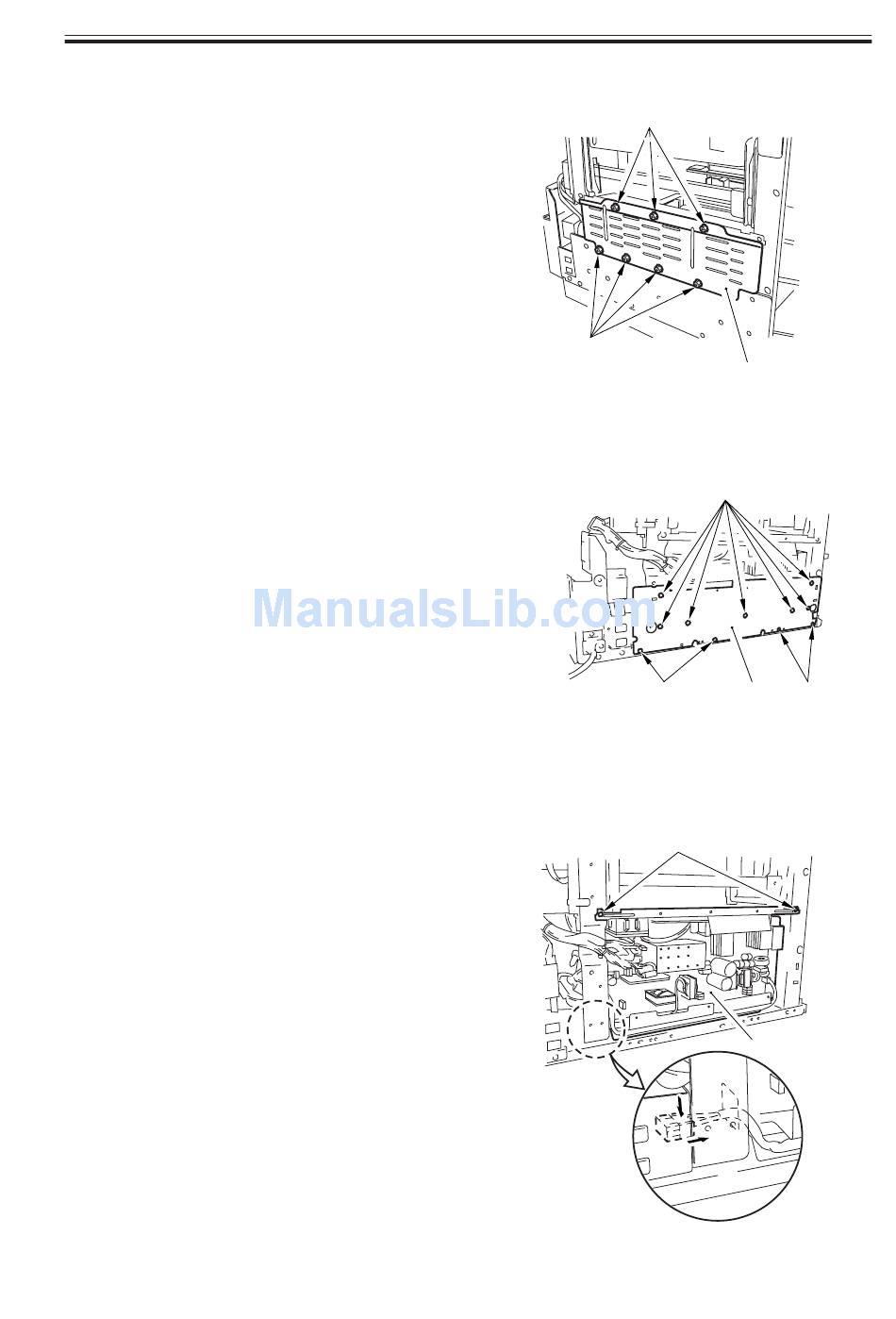

5.4.8 Power Supply PCB

1) Remove the left lower cover.
(When doing so, be sure to slide out the
right deck and the cassettes in advance.)
2) Remove the seven screws [1], and de-
tach the shielding plate [2].
3) Remove the 11 screws [3], and detach
the power supply cover [4].
4) Disconnect the 15 connectors, and re-
move the two screws [5]; then, detach
the power supply PCB [6].
