CHAPTER 5 PICK UP/FEEDING SYSTEM

9.4 Registration Feeding Assembly

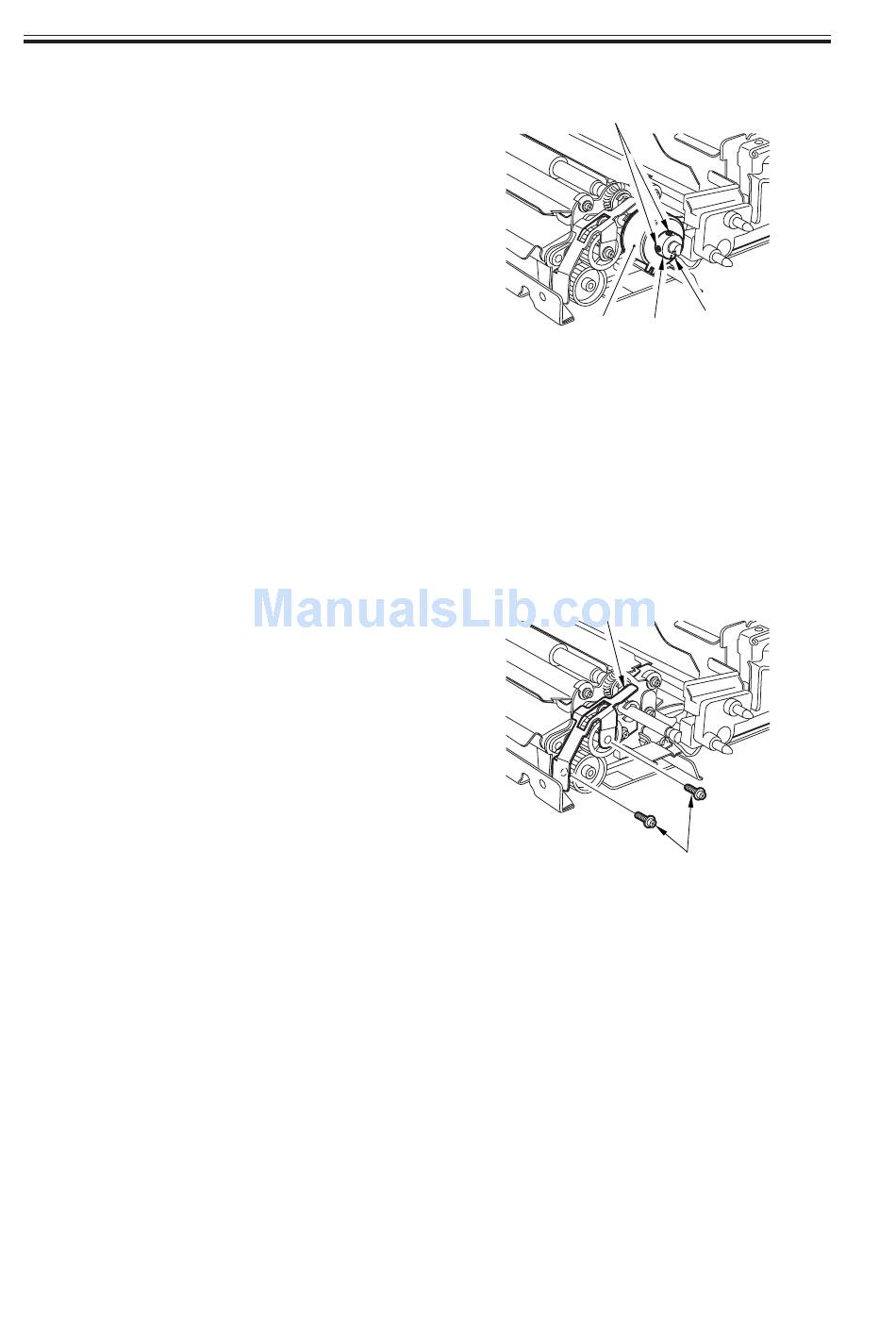

9.4.1 Removing the Registration Clutch

1) Remove the fixing/feeding unit from the
machine.
2) Loosen the two sems screws [1], and
detach the stopper [2].
3) Disconnect the connector [3], and re-
move the registration clutch [4].

9.4.2 Removing the Registration Roller

1) Remove the fixing/feeding unit from the
machine.
2) Remove the feeding right cover of the
fixing/feeding unit.(See p.4-63P)
3) Remove the transfer separation charging
assembly.
4) Remove the registration clutch.
5) Remove the two mounting screws [1],
and detach the protection cover [2].
5-66 P
COPYRIGHT © 2001 CANON INC.
[4]
F05-904-01
[2]
F05-904-02
2000 2000 2000 2000 CANON iR5000i/iR6000i REV.0 JUNE 2001
[1]
[3]
[2]
[1]
