4.2 Controlling the Drive to the Hopper/Developing Assembly

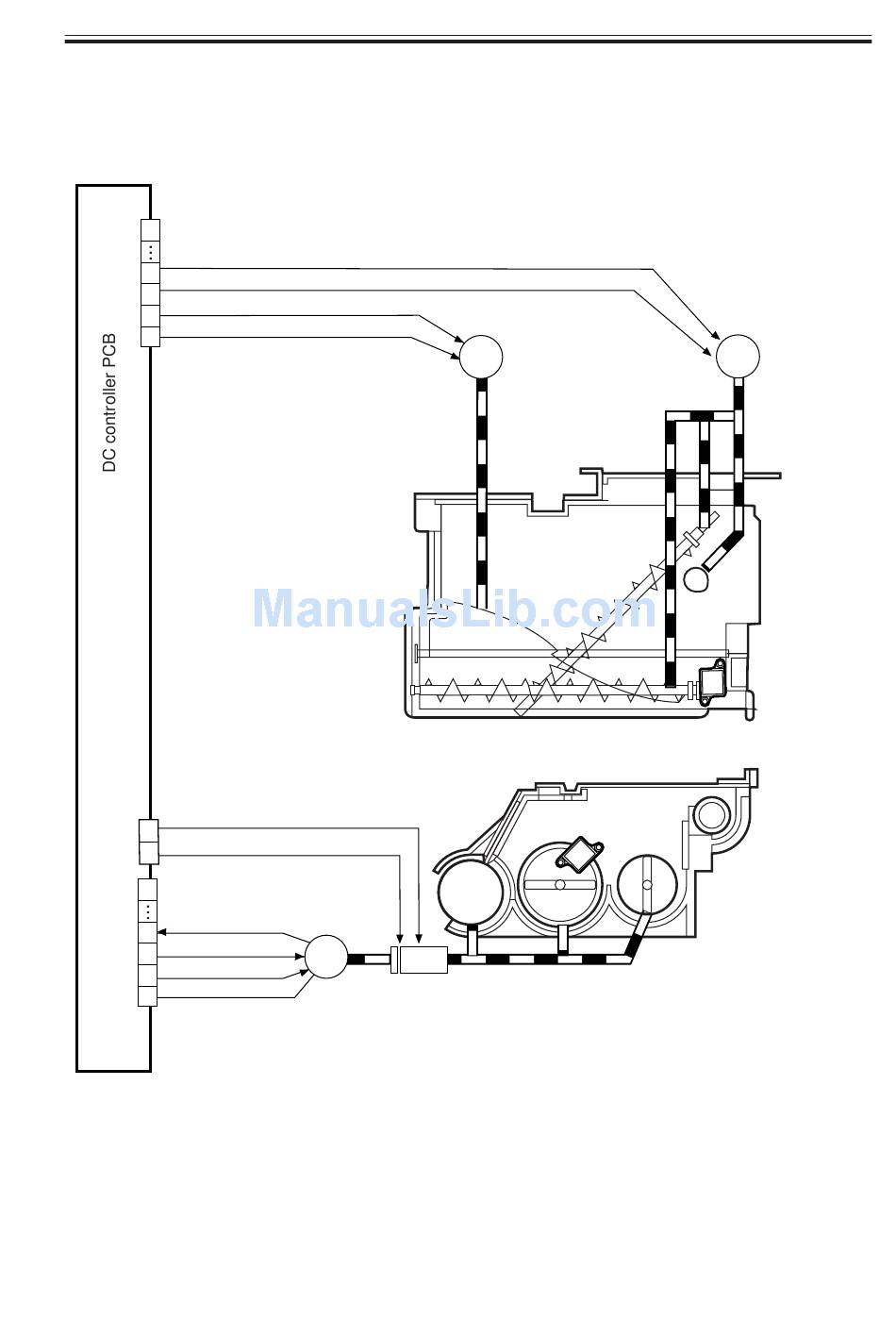

The system used to control the drive of the developing assembly is constructed as follows:
J103B
1
24V
5
M10ON*[1]
6
24V
7
M9ON* [2]
8
J108B
24V
1
DEVCD* [3]
2
J108A
1
M1_LCK
9
M1_ON
10
5V
11
0V
12
COPYRIGHT © 2001 CANON INC.
Hopper stirring motor
M1
CL1
Developing assembly clutch
F04-402-01
2000 2000 2000 2000 CANON iR5000i/iR6000i REV.0 JUNE 2001
CHAPTER 4 IMAGE FORMATION SYSTEM
M9
Hopper supply motor
M10
4-37 P
