CHAPTER 7 EXTERNALS AND CONTROLS
5.6.8 Waste Toner Bottle Assembly, Lifter Drive Assembly, Vertical Path
Drive Assembly, and Cassette Pickup Drive Assembly
1) Remove the main controller box.
2) Remove the right rear lower cover, rear
lower cover, and waste toner bottle.
3) By referring to step 3) for the main mo-
tor, remove the main power switch base
out of the way.

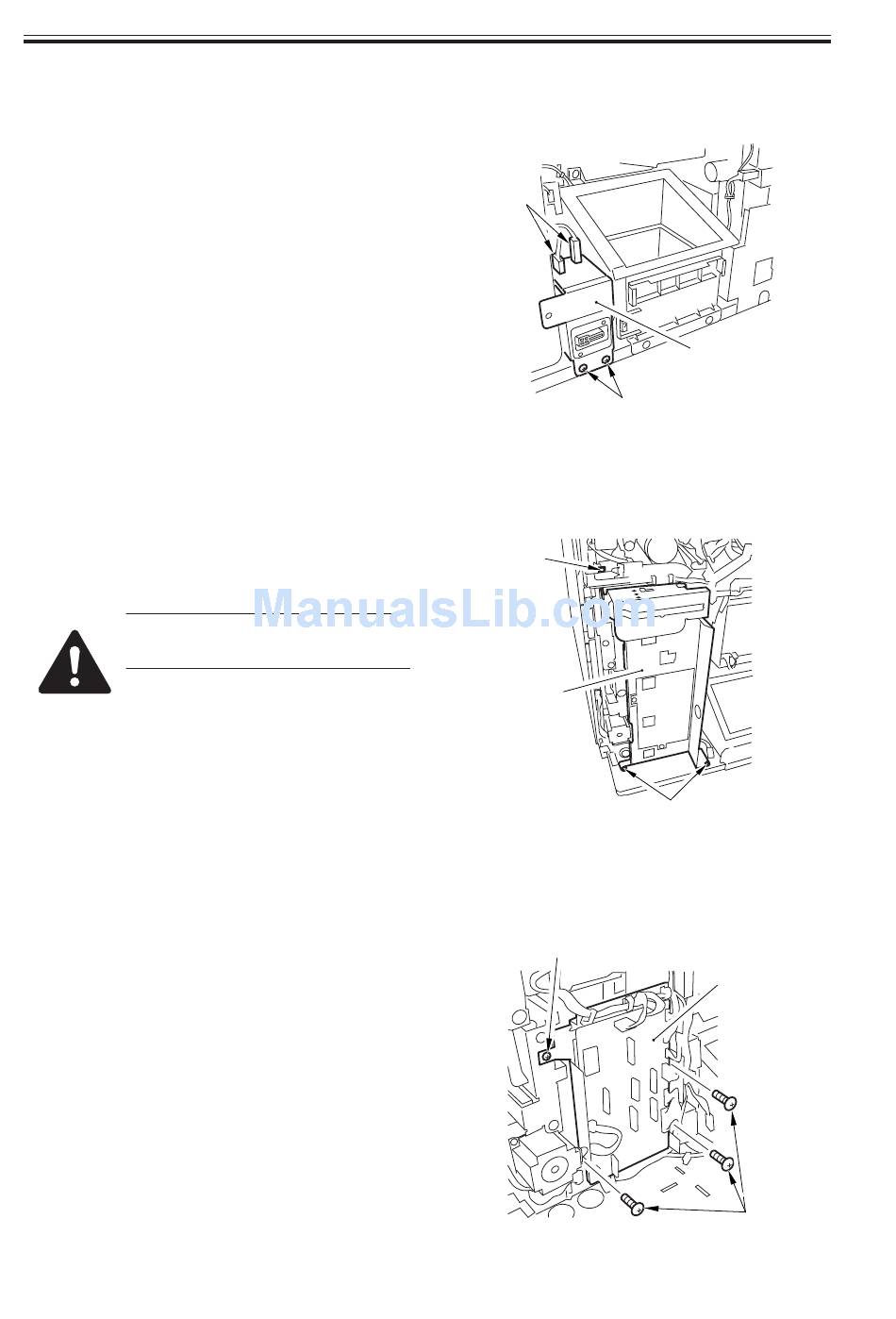

4) Remove the two screws [1], and discon-
nect the two connectors [2]; then, de-
tach the connector base [3].
5) Remove the three screws [4], and detach
the waste toner holder [5].
Take care not to let the waste
toner go astray.
6) Remove the four screws [6], and dis-
connect the 11 connectors; then, detach
the motor driver PCB [7] together with
its base.
7-40 P
COPYRIGHT © 2001 CANON INC.
[2]
F07-506-10
[4]
[5]
F07-506-11
[6]
F07-506-12
2000 2000 2000 2000 CANON iR5000i/iR6000i REV.0 JUNE 2001
[3 ]
[1]
[4]
[7]
[6]
