CHAPTER 7 EXTERNALS AND CONTROLS

5.4.7 Removing the RISER PCB

1) Remove the Differential PCB.
2) Detach the LIPS PCB and the RISER
PCB together with the mounting plate.

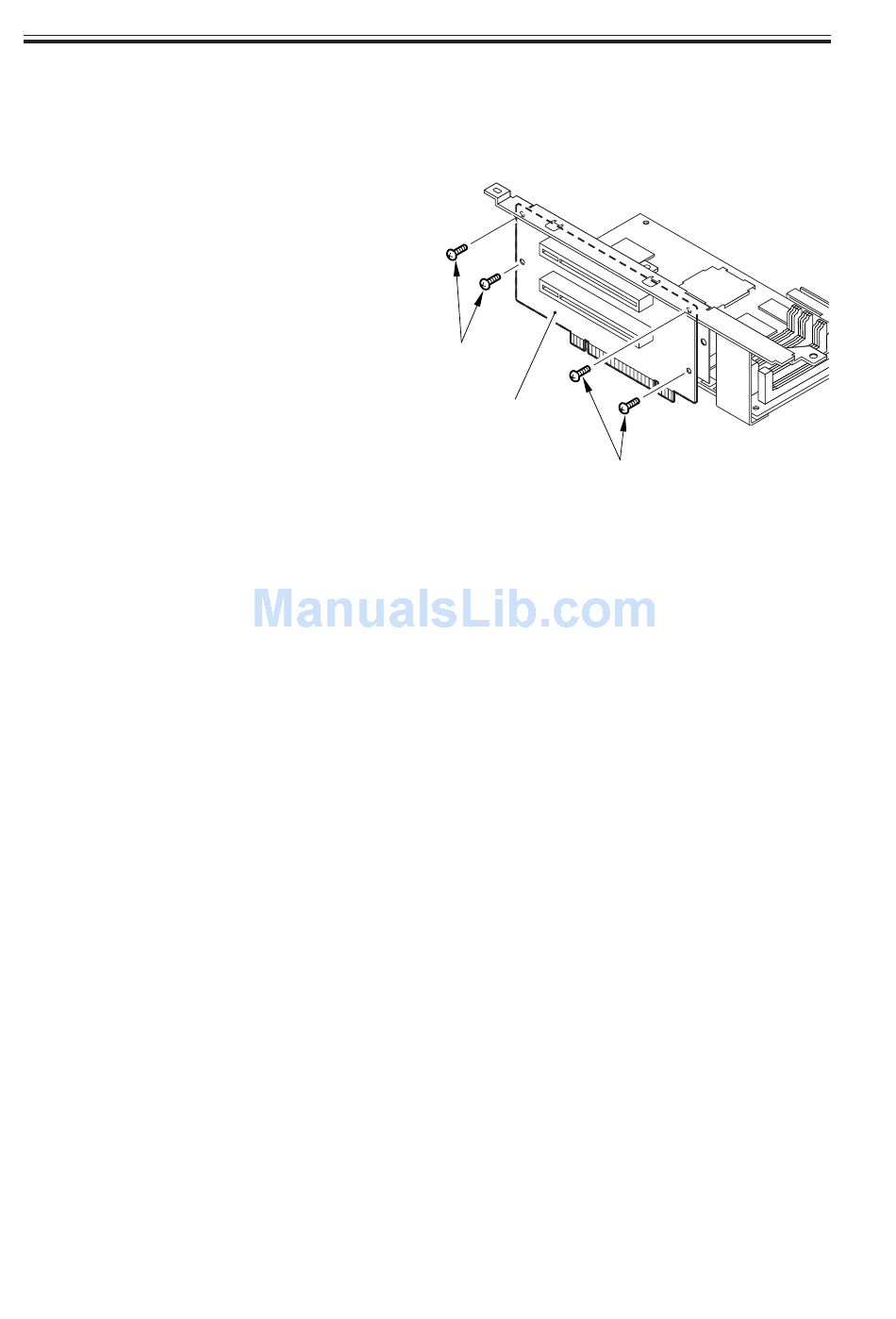

3) Remove the four mounting screws [1],
and detach the RISER PCB [2].
7-28 P
COPYRIGHT © 2001 CANON INC.
[1]
[2]
F07-504-13
2000 2000 2000 2000 CANON iR5000i/iR6000i REV.0 JUNE 2001
[1]
