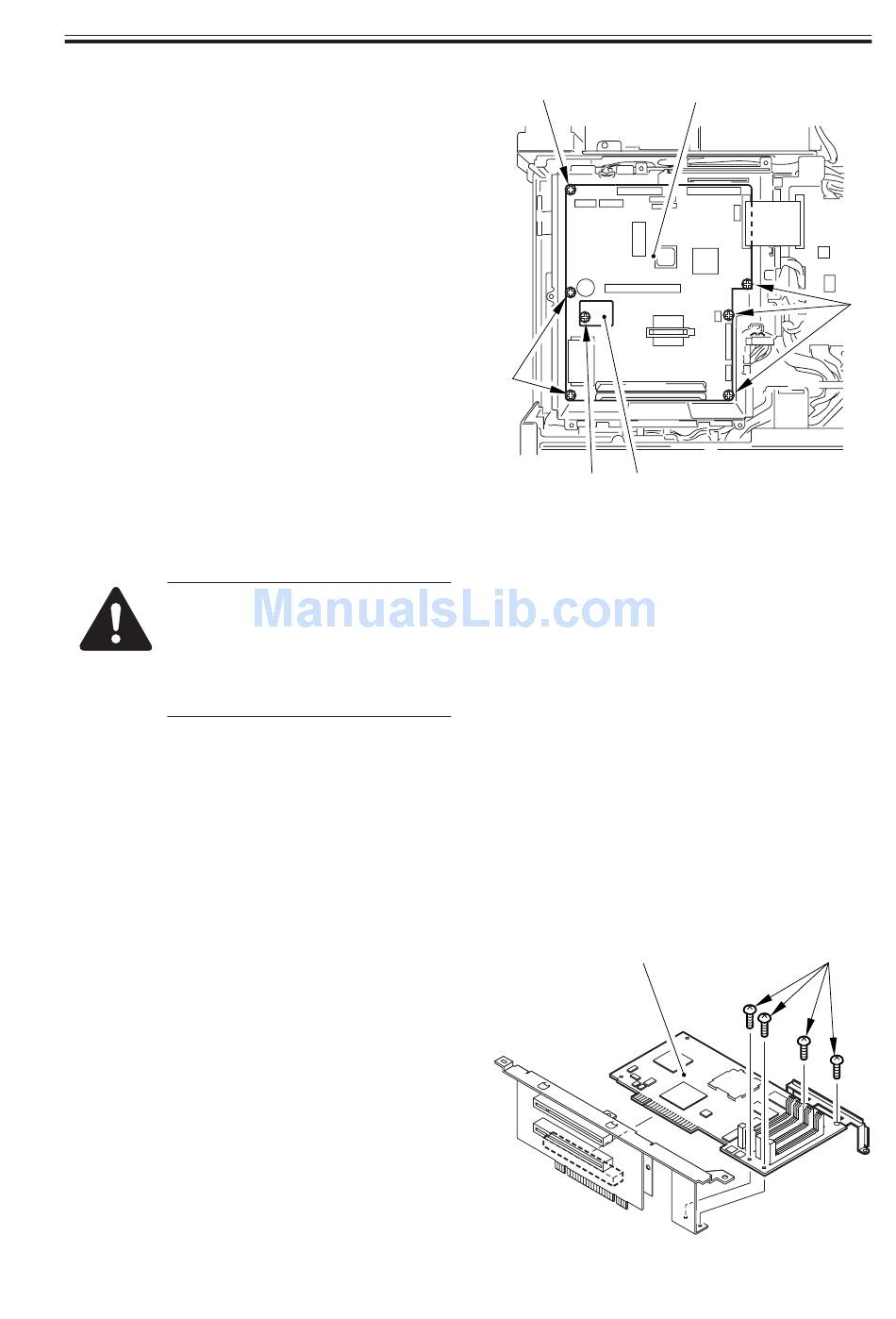

4) Remove the six mounting screws [3],
and detach the main controller PCB [4].
To replace the main controller
PCB, be sure to transfer the
counter memory PCB [6] to the
new PCB by removing the
screw [5].

5.4.5 Remove the Differential PCB

See steps 1) through 4) used to remove the main controller box.

5.4.6 Removing the LIPS PCB

1) Remove the differential PCB.
2) Remove the LIPS PCB and the RISER
PCB together with the mounting plate.
3) Remove the four mounting screws [1],
and detach the LIPS PCB [2].
