5.12.3 Power Supply Transformer

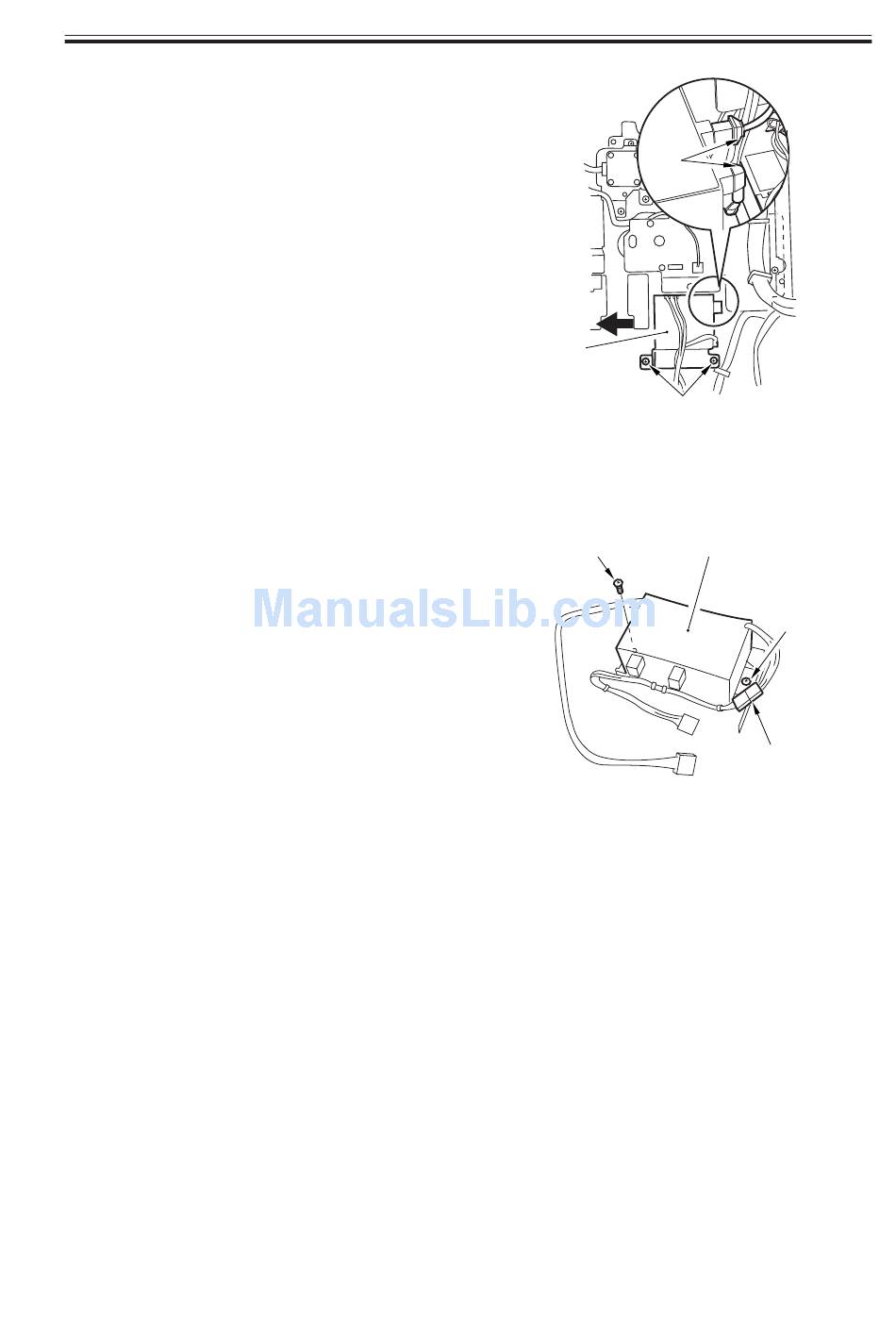

1) Remove the high-voltage power supply
PCB.
2) Remove the two screws [1], and discon-
nect the two connectors [2]; then, slide
the transfer unit [3] to the left to detach.
3) Remove the two screws [4], and discon-
nect the connector [5]; then, detach the

transformer [6].
