CHAPTER 3 INSTALLATION

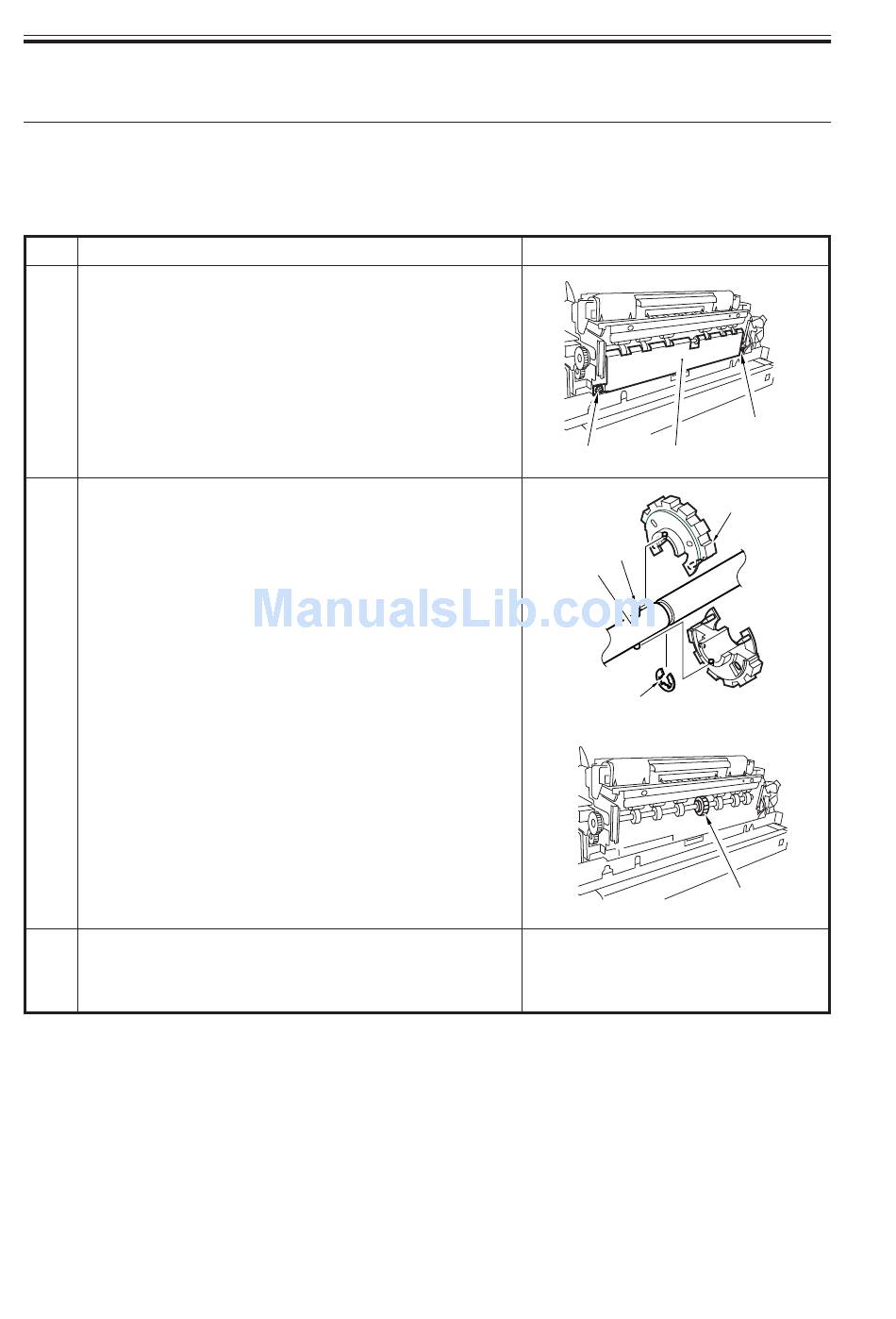

4. Mounting the Delivery Tray

The delivery roller must be equipped with a delivery roll in its middle before mounting
the delivery tray. The following steps, however, must not be performed if installation of
the shift tray or finisher is planned.
Step
1 Open the front cover, and slide out the fixing/
feeding assembly; then remove the two screws
[1], and detach the delivery roller guide [2].
2 Mount the delivery roll [3] aligning it against the
pin [5] in the middle of the delivery roller [4];
then secure it in place with an E-ring [6].
3 Mount the anti-wrap cover with two screws, and
push the fixing/feeding assembly into the ma-
chine; then close the front cover.
3-30 S
Work
COPYRIGHT © 2001 CANON INC.
[1]
[4]
2000 2000 2000 2000 CANON iR5000i/iR6000i REV.0 JUNE 2001
Checks/remarks
[1]
[2]
[3]
[5]
[6]
[3]
