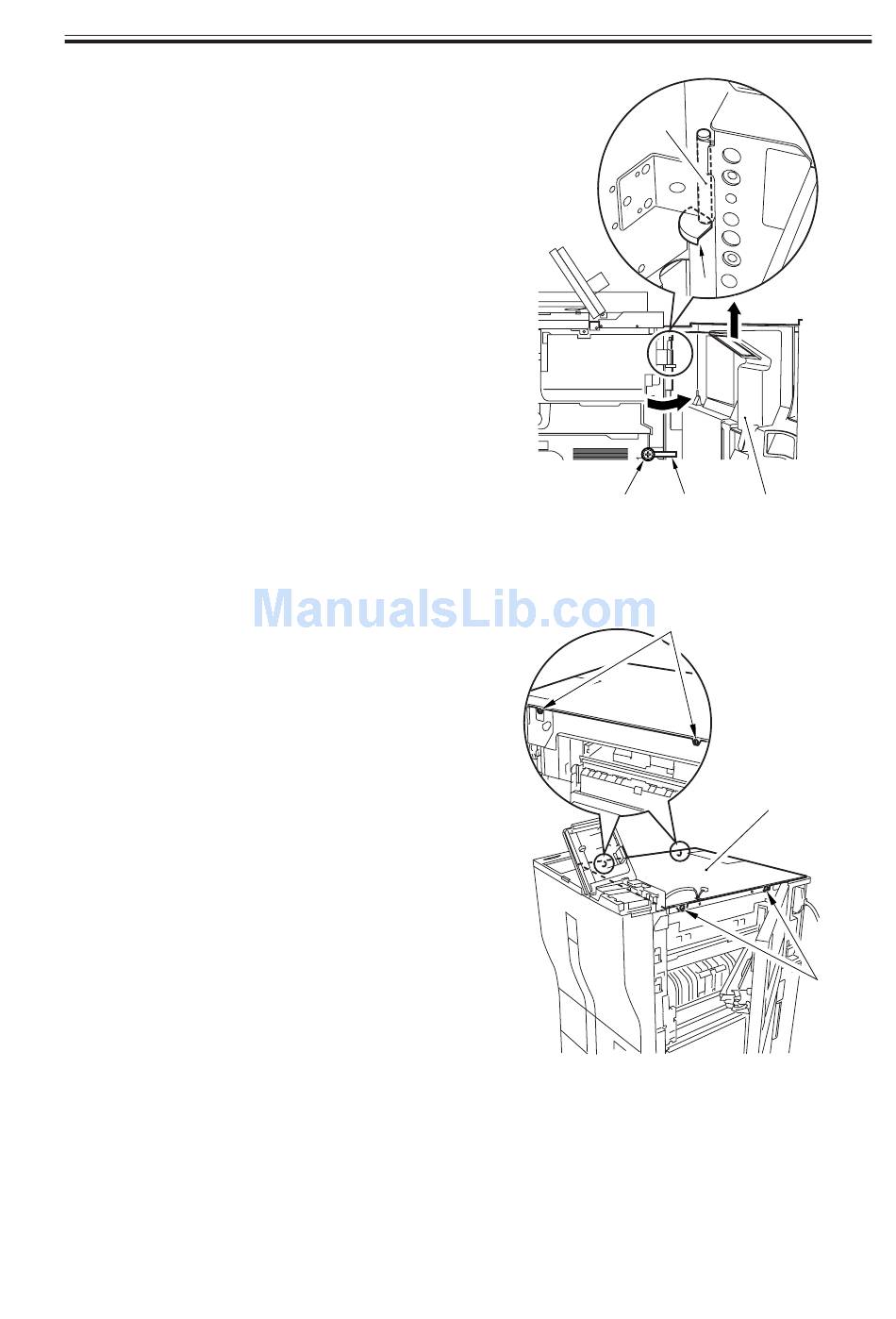

5.1.2 Removing the Front Cover
1) Open the front cover [1], and remove
the screw [3] of the door tape [2].
2) Remove the stopper [4], and detach the
hinge shaft [5] by pulling it up.
3) Pull the front cover up at an angle to
detach.

5.1.3 Removing the Top Plate

1) Remove the reader unit.
2) Remove the fixing plates (2 pc. each at
front and rear) of the reader unit.
3) Remove the right upper cover and the
right upper cover base.
4) Open the manual feed cover.
5) Remove the four mounting screws, and
detach the top plate [2].
COPYRIGHT © 2001 CANON INC. 2000 2000 2000 2000 CANON iR5000i/iR6000i REV.0 JUNE 2001
CHAPTER 7 EXTERNALS AND CONTROLS
[3]
F07-501-03
F07-501-04
[5]
[4]
[2] [1]
[1]
[2]
[1]
7-15 P
