5. Scanning Lamp

5.1 Removing the Scanning Lamp

1) Remove the copyboard glass.
2) Remove the right upper cover and the
right upper cover base.
3) Remove the reader left cover; then, de-
tach the reader front cover.
4) Remove the reader controller PCB.

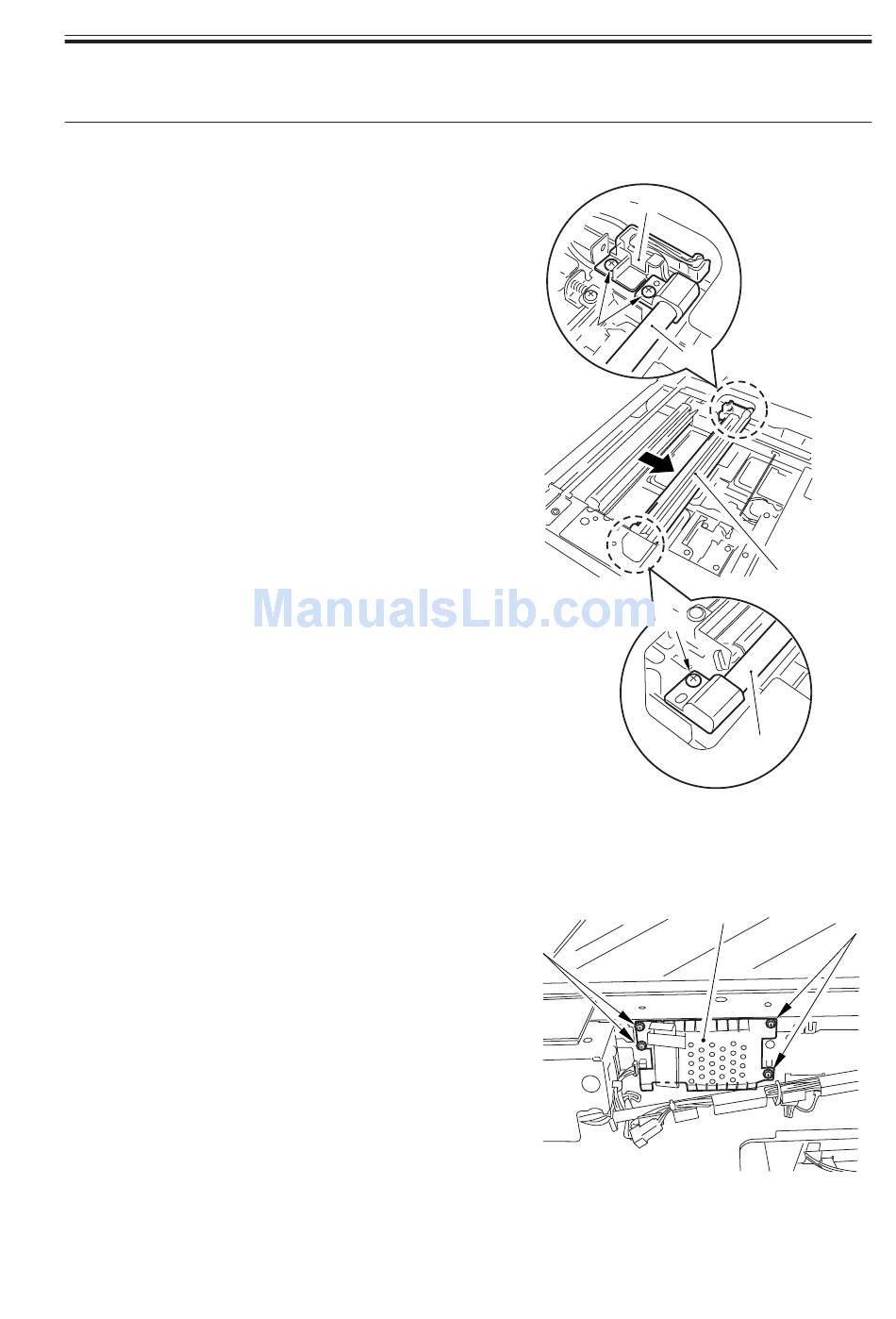

5) Move the No. 1 mirror base [1] as far as
the cut-in made in the frame.
6) Remove the three screws [2] from the
No. 1 mirror base, and detach the scan-
ning lamp [3] together with the cable
fixing plate [4].
7) Remove the four screws [5], and detach
the blanking plate [6].
