CHAPTER 7 EXTERNALS AND CONTROLS

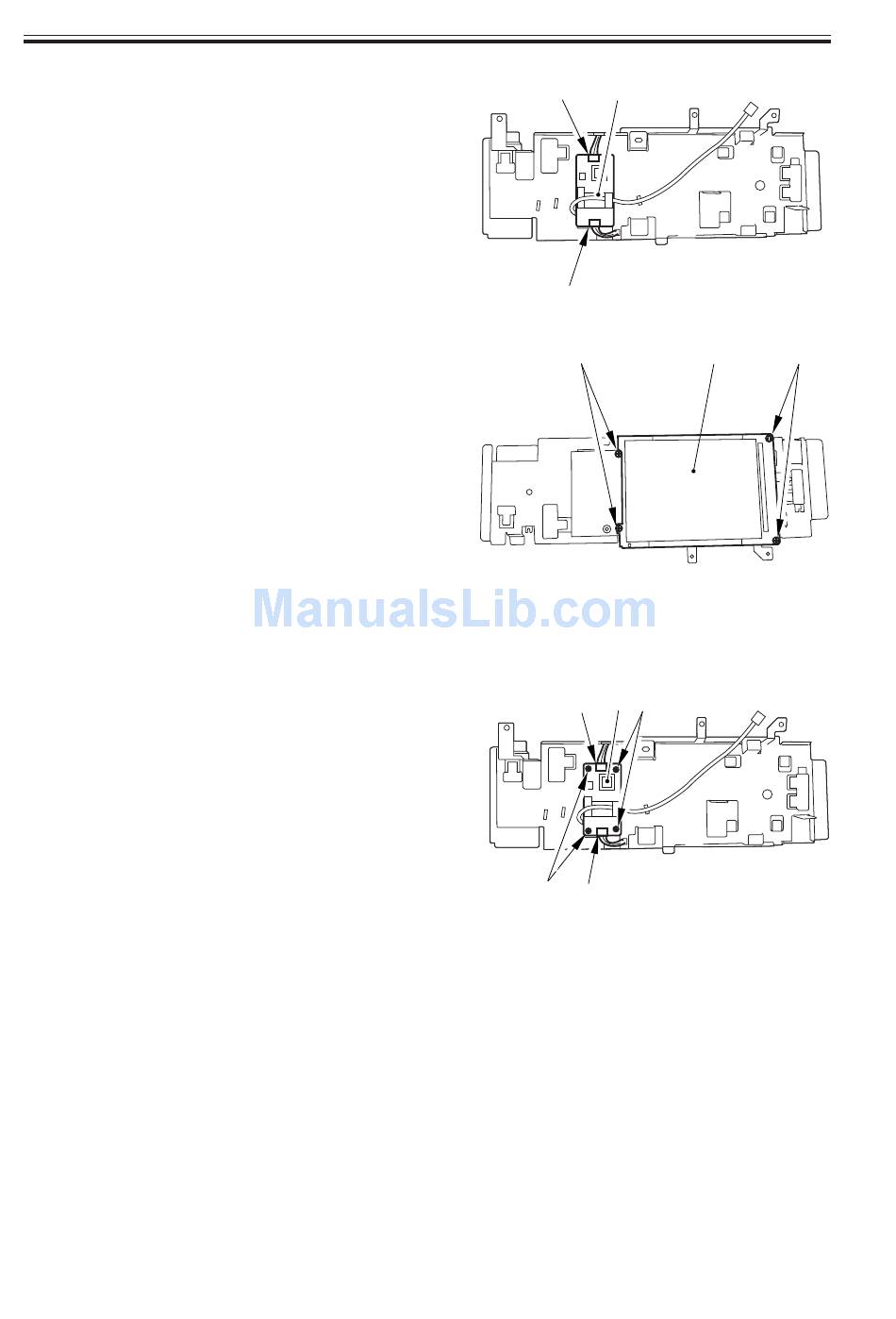

5) Disconnect the two connectors [12] of
the control panel inverter PCB [11];
then, remove the four mounting screws
[13], and detach the LCD panel [14].

5.3.3 Removing the Control Panel Inverter PCB

1) Remove the control panel.
2) Disconnect the two connectors [1], and
remove the four mounting screws [2];
then, detach there control panel inverter
PCB [3].
7-20 P
COPYRIGHT © 2001 CANON INC.
[12]
[12]
[13]
F07-503-06
[1]
[2] [1]
F07-503-07
2000 2000 2000 2000 CANON iR5000i/iR6000i REV.0 JUNE 2001
[11]
[14]
[3] [2]
[13]
