9.1 Manual Feed Tray Assembly

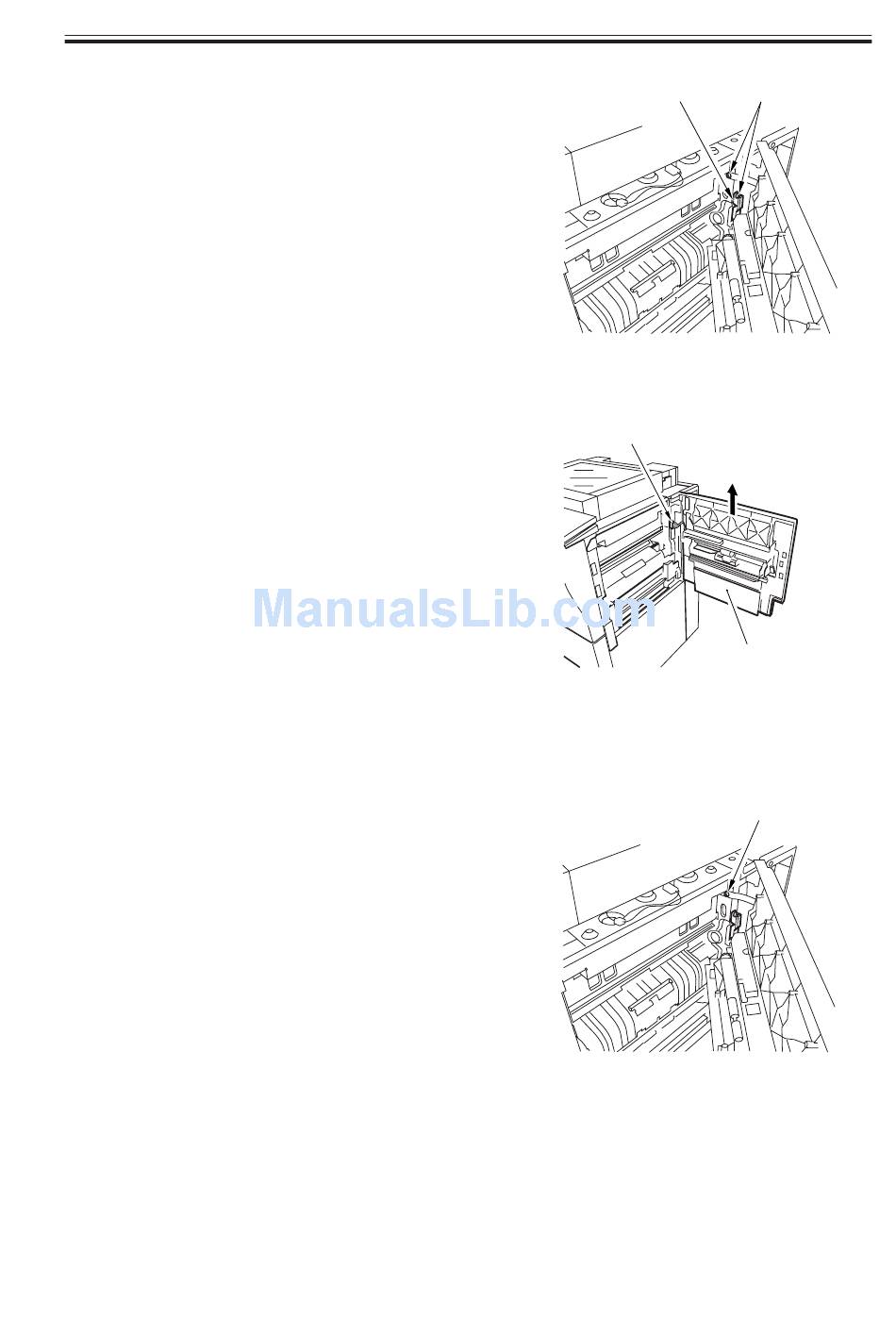

9.1.1 Removing the Right Upper Cover

1) Remove the two screws [1], and detach
the cover [2].
2) Disconnect the connector [3], and de-
tach the right upper cover [4].

9.1.2 Opening of the Right Upper Cover

1) Open the right upper cover, and remove
the mounting screw [1].
