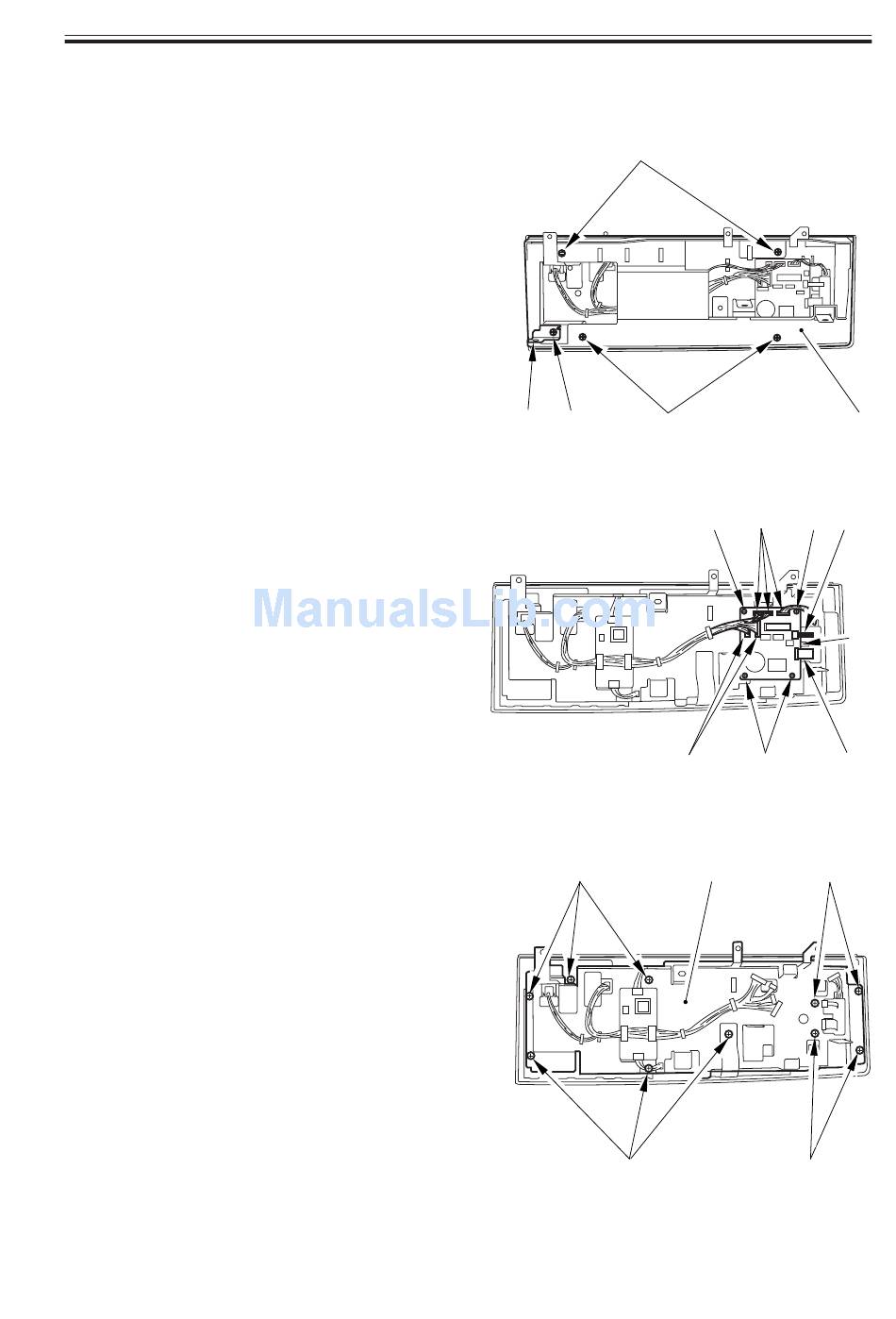

5.3.2 Removing the LCD Panel

1) Remove the control panel.
2) Turn over the control paper, and remove
the mounting screw [1] to detach con-
trol panel mounting plate [2]; then, re-
move the four screws [3], and detach
the control panel bottom cover [4].
3) Remove the two flat cables [5], and dis-
connect the five connectors [6], and re-
move the four mounting screws [7];
then, detach the control panel CPU PCB
[8].
4) Remove the ten mounting screws [9],
and detach the shielding plate [10].
COPYRIGHT © 2001 CANON INC. 2000 2000 2000 2000 CANON iR5000i/iR6000i REV.0 JUNE 2001
CHAPTER 7 EXTERNALS AND CONTROLS
[3]
[2] [1]
F07-503-03
F07-503-04
[9]
[9]
F07-503-05
[3]
[7] [6] [7]
[6] [7]
[10] [9]
[9]
7-19 P
[4]
[5]
[8]
[5]
