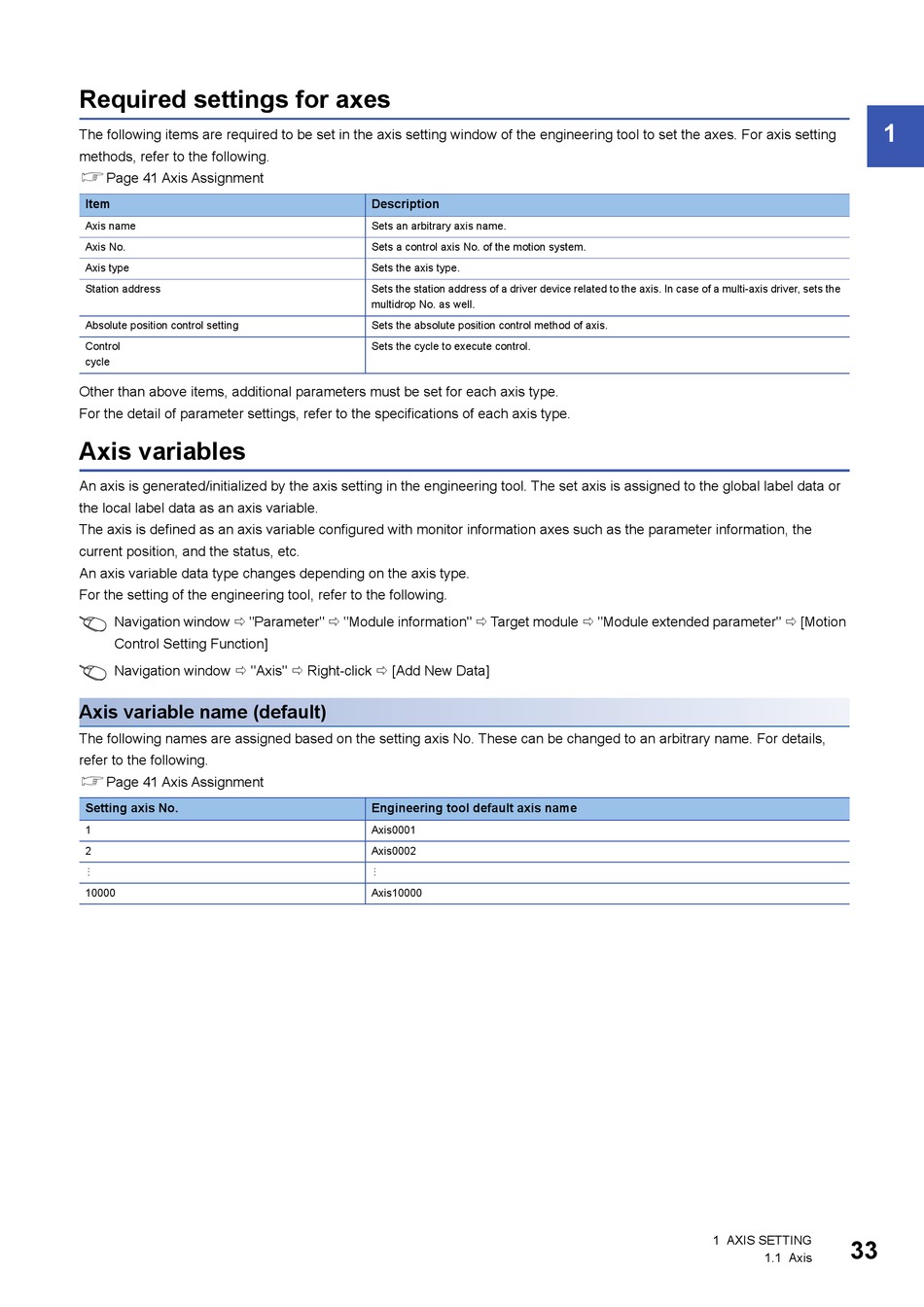

Required settings for axes

The following items are required to be set in the axis setting window of the engineering tool to set the axes. For axis setting
methods, refer to the following.
Page 41 Axis Assignment
Item
Axis name
Axis No.
Axis type
Station address
Absolute position control setting
Control
cycle
Other than above items, additional parameters must be set for each axis type.
For the detail of parameter settings, refer to the specifications of each axis type.

Axis variables

An axis is generated/initialized by the axis setting in the engineering tool. The set axis is assigned to the global label data or
the local label data as an axis variable.
The axis is defined as an axis variable configured with monitor information axes such as the parameter information, the
current position, and the status, etc.
An axis variable data type changes depending on the axis type.
For the setting of the engineering tool, refer to the following.
Navigation window  "Parameter"  "Module information"  Target module  "Module extended parameter"  [Motion
Control Setting Function]
Navigation window  "Axis"  Right-click  [Add New Data]
Axis variable name (default)
The following names are assigned based on the setting axis No. These can be changed to an arbitrary name. For details,
refer to the following.
Page 41 Axis Assignment
Setting axis No.
1
2

10000
Description
Sets an arbitrary axis name.
Sets a control axis No. of the motion system.
Sets the axis type.
Sets the station address of a driver device related to the axis. In case of a multi-axis driver, sets the
multidrop No. as well.
Sets the absolute position control method of axis.
Sets the cycle to execute control.
Engineering tool default axis name
Axis0001
Axis0002

Axis10000
